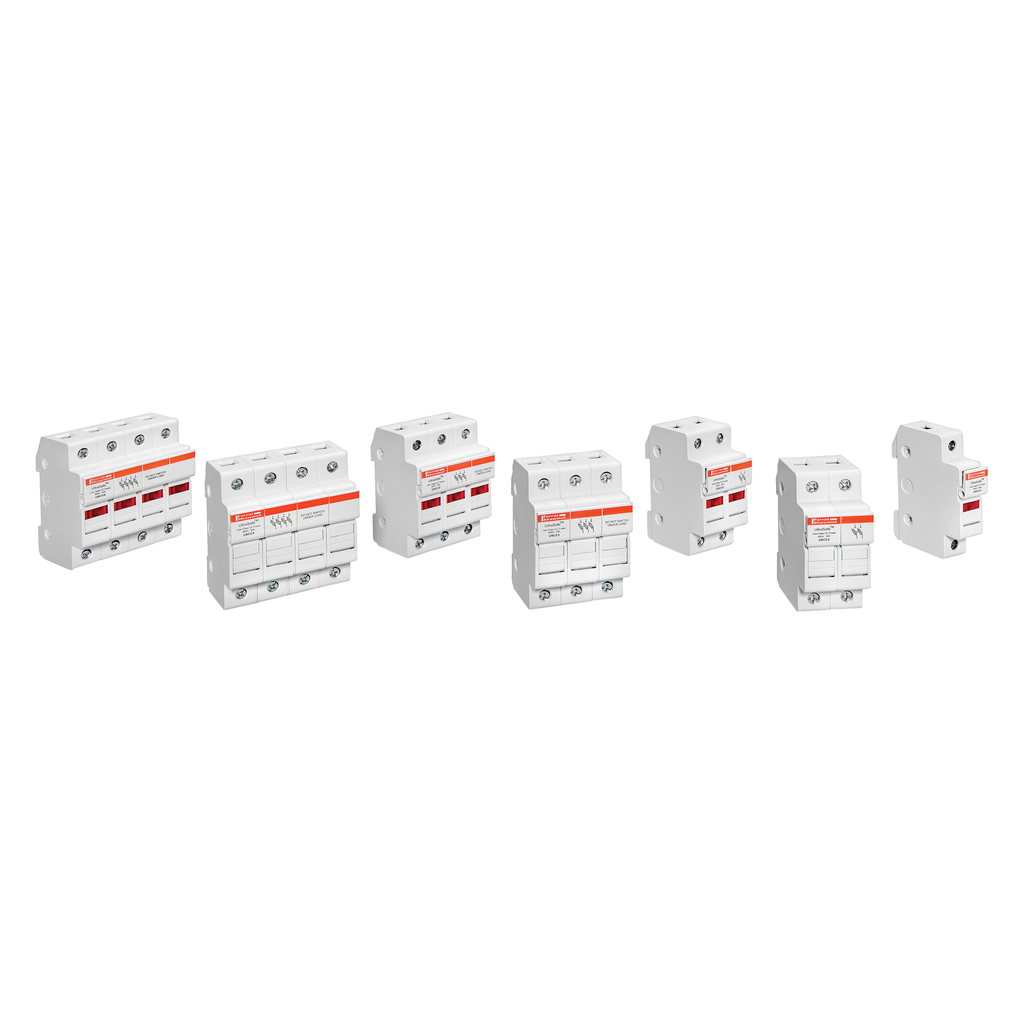

Fuse Holders 600V 30A Class CC 1-pole No Indicator - Modular Fuse Holder

The Mersen Fuse Holders 600V 30A Class CC 1-pole No Indicator provide safe, compact, and efficient fuse holding solutions suitable for electrical distributors and switchgear suppliers. Designed for all circuits up to 600 volts including motors, control circuits, and transformers, these holders also support DC circuits up to 1000VDC, including photovoltaic applications. Featuring a modular design, they snap onto standard 35mm DIN rails, saving panel building time and space. The holders are constructed from tough, durable glass-filled polycarbonate with superior insulating properties, meeting rigorous safety standards for industrial and commercial electrical installations.

Specifications

• Voltage Rating: 600 VAC/DC Maximum
• Amperage Rating: 30 A
• Fuse Class: Class CC
• Mounting: DIN Rail
• Connection Type: Pressure Plate
• Material: Glass Filled Polycarbonate
• Dimensions (W x H x L): 0.69 in x 2.32 in x 3.07 in
• Frequency: 50 Hz
• Maximum Operating Temperature: 80 °C
• Product Weight: 0.1400 lb
• Country of Origin: China

Features

• Finger-safe IP20 protection compliant with IEC and DIN standards
• Compact modular design saves up to 15% mounting space
• Tool-free, quick fuse change with flick of a finger
• Available with or without visual blown-fuse indicators (this model without indicator)
• Compatible with Class CC fuses offering Type 2 No Damage protection
• Durable polyamide body with exceptional insulating properties
• Snap-on installation on 35mm DIN rail for easy panel assembly

Downloads & Links

• Spec Sheet (French)
• Spec Sheet
