Fuse GGC - Fast-Acting 250V 6A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196495
Part: #GGC6
UPC: 782001760731
Fuse GGC - Fast-Acting 250V 6A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196495
Part: #GGC6
UPC: 782001760731
Description

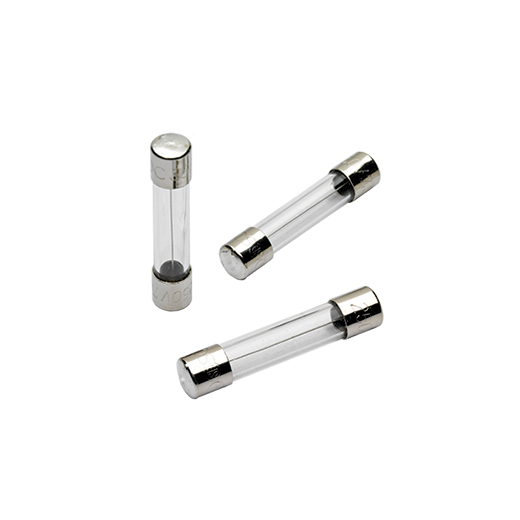

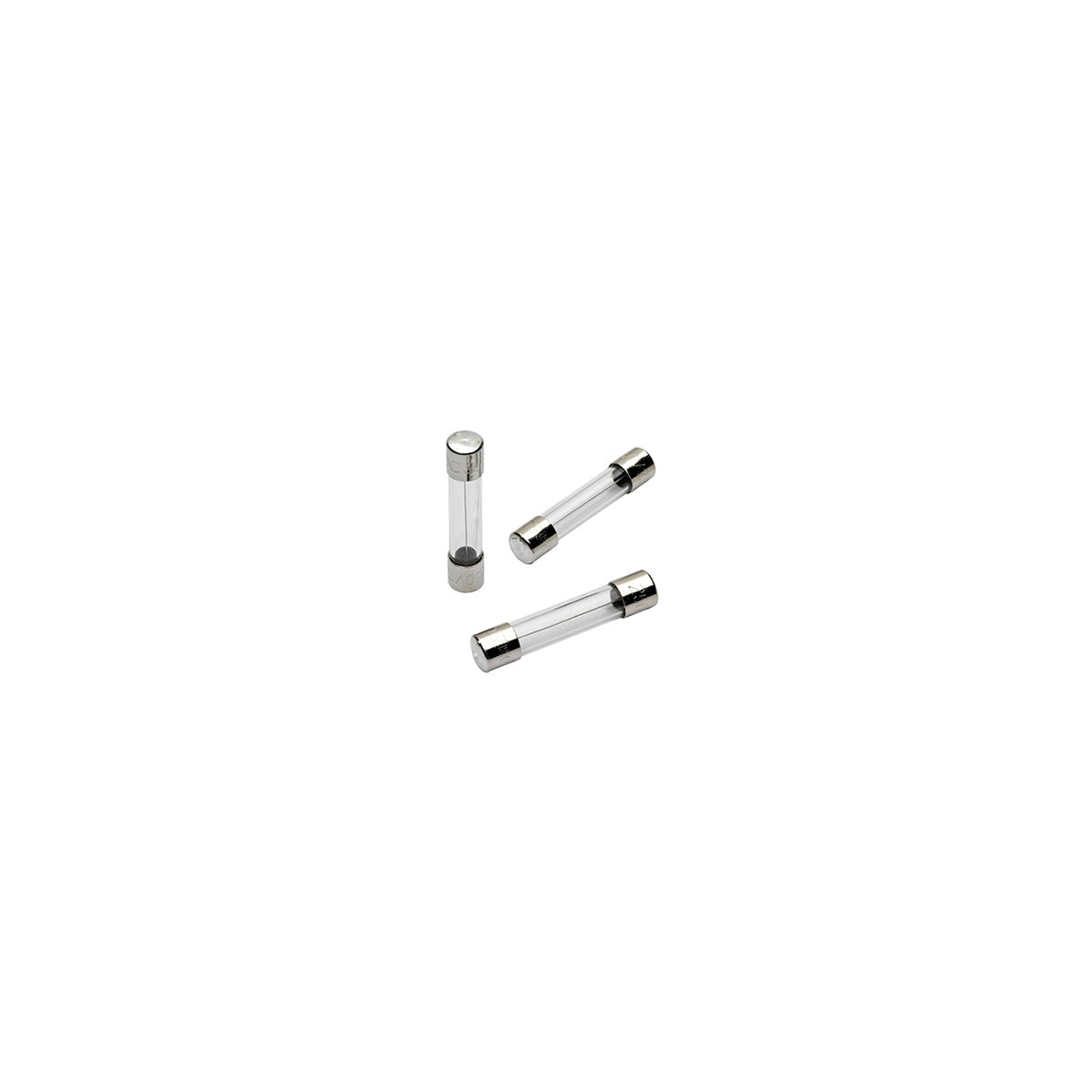

Fuse GGC - Fast-Acting 250V 6A 6x32mm, 1/4" X 1-1/4" Glass Fuse
This fast-acting glass fuse is designed for electrical protection in various applications requiring reliable current interruption up to 250 volts. Suitable for use by electrical distributors and switchgear suppliers, it provides precise overcurrent protection in lighting solutions, wire and cable assemblies, and electronic circuits. The fuse features a compact 1/4" x 1-1/4" size with a glass body, making it compatible with clip mounting types for easy installation.
Specifications
- Amperage: 6 amperes
- Voltage Rating: Up to 250V
- Dimensions: 0.25 in (diameter) x 1.25 in (length)
- Mounting Type: Clip
- Material: Glass body
- Manufacturer: Mersen
- Manufacturer Part Number: GGC6
- Country of Origin: China
- Product Weight: 0.0100 lbs
Features
- Fast-acting fuse for rapid current interruption
- Glass body allows visual inspection of fuse element
- Standard 6x32mm (1/4" x 1-1/4") size for compatibility with common fuse holders
- UL Listed and CSA Certified (per manufacturer documentation)
