Fuse GGC - Fast-Acting 250V 6.3A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196501
Part: #GGC6-3/10
UPC: 782001769987
Fuse GGC - Fast-Acting 250V 6.3A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196501
Part: #GGC6-3/10
UPC: 782001769987
Description

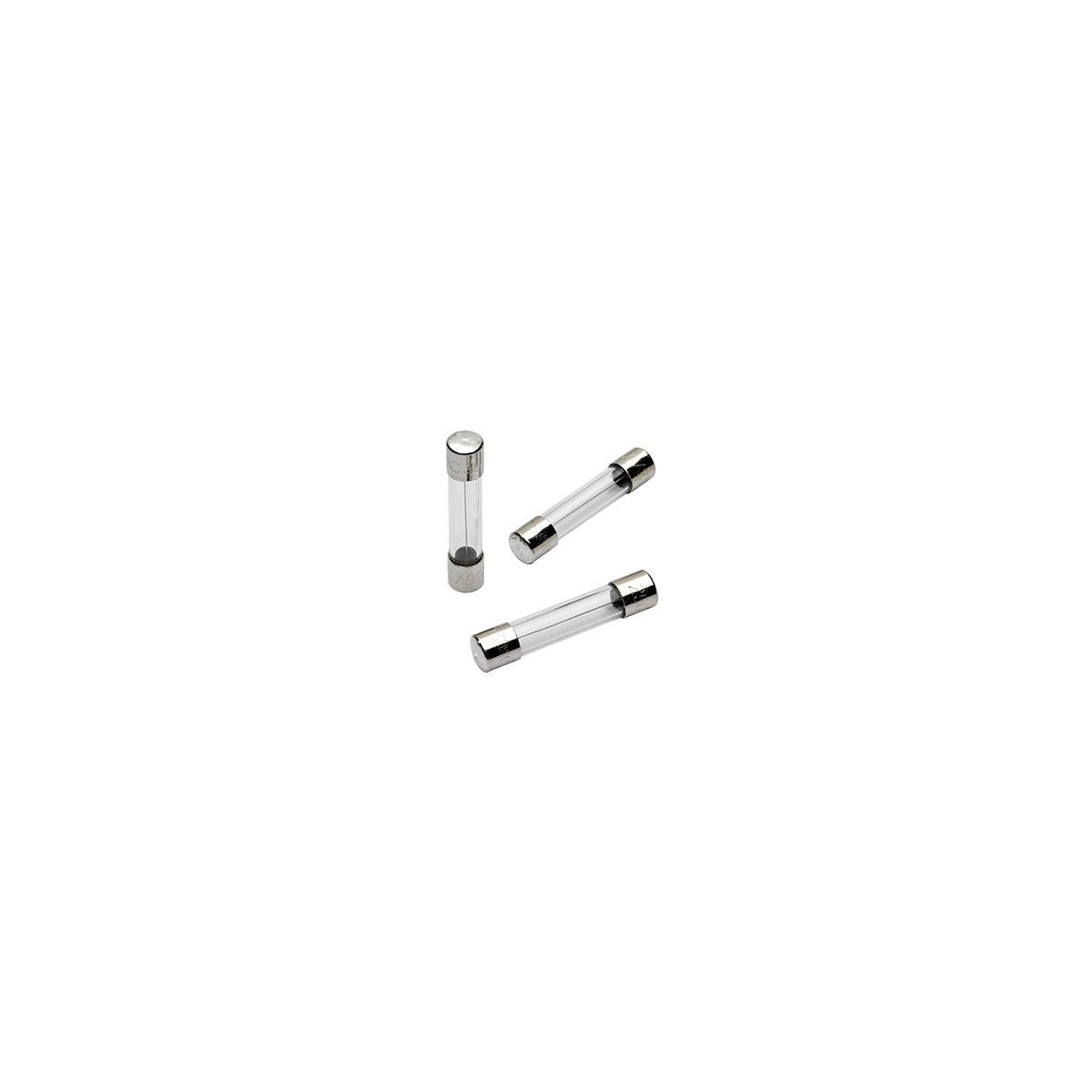

Fuse GGC - Fast-Acting 250V 6.3A 6x32mm, 1/4" X 1-1/4" Glass Fuse
This fast-acting glass fuse is designed for circuit protection in electrical distribution and lighting solutions. It operates at up to 250 volts and 6.3 amperes, making it suitable for use in wire and cable protection as well as switchgear applications. The fuse features a compact 1/4" diameter by 1-1/4" length glass body with clip mounting, facilitating easy installation and replacement in various electrical systems.
Specifications
- Manufacturer: Mersen
- Manufacturer Part Number: GGC6-3/10
- Amperage: 6.3 amperes
- Voltage Rating: Up to 250V
- Dimensions: 0.25 in (Diameter) x 1.25 in (Length) x 0.25 in (Width and Height)
- Mounting Type: Clip
- Material: Glass body
- Product Weight: 0.01 lbs
- Country of Origin: China
Features
- Fast-acting fuse for rapid circuit interruption
- Glass body allows visual inspection of fuse element
- Standard size of 1/4" x 1-1/4" (6x32mm) for compatibility with common fuse holders
- Clip mounting for secure and convenient installation
