Fuse GGC - Fast-Acting 250V 1A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196437
Part: #GGC1
UPC: 782001760649
Fuse GGC - Fast-Acting 250V 1A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196437
Part: #GGC1
UPC: 782001760649
Description

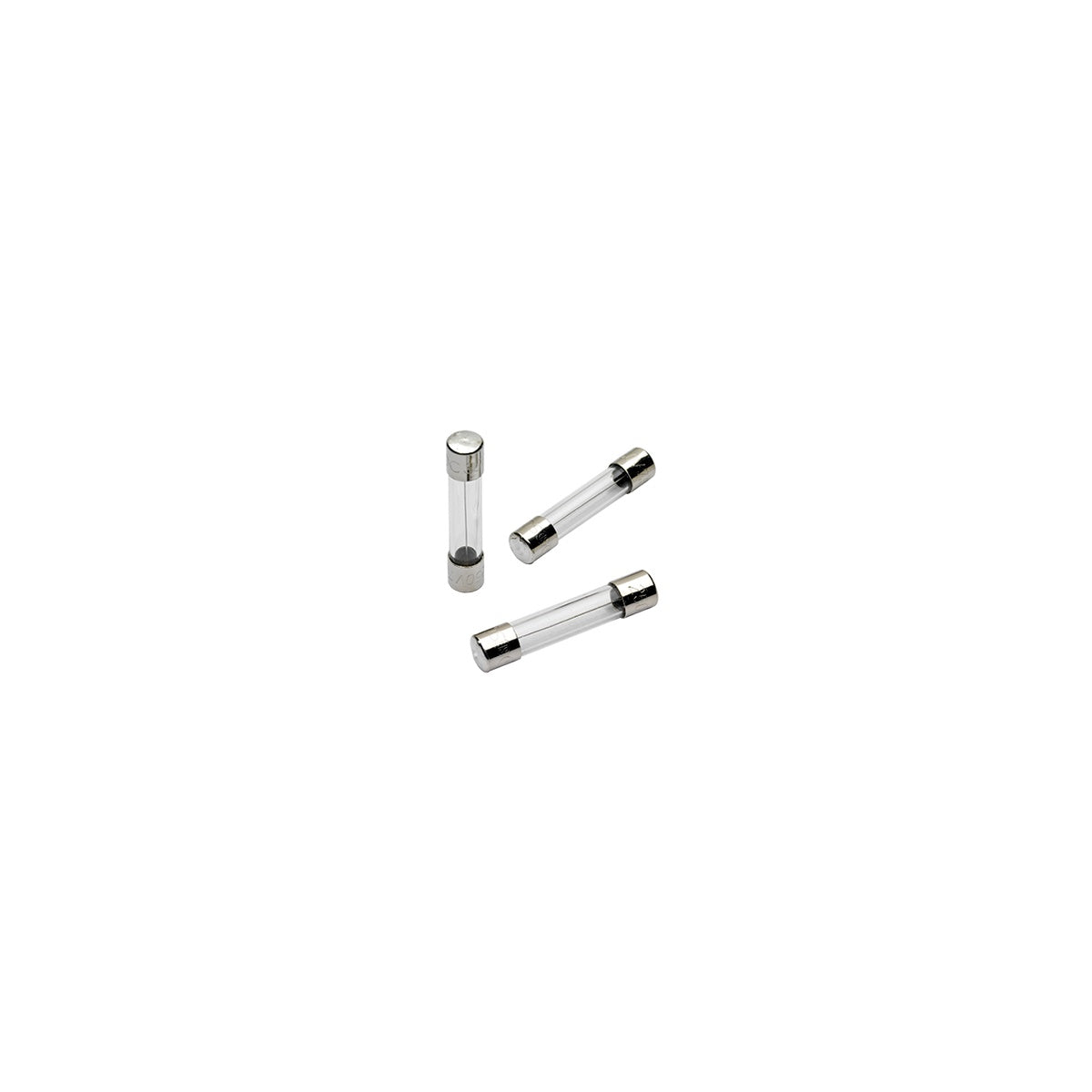

Fuse GGC - Fast-Acting 250V 1A 6x32mm, 1/4" X 1-1/4" Glass Fuse
This glass-bodied, fast-acting fuse is designed for electrical distribution and protection applications requiring reliable overcurrent interruption. It is suitable for use in lighting solutions, wire and cable assemblies, and switchgear supplied by electrical distributors. The fuse operates up to 250 volts AC and provides precise protection for circuits with a 1 ampere rating.
Specifications
- Manufacturer: Mersen
- Manufacturer Part Number: GGC1
- Voltage Rating: 250V AC
- Amperage: 1 amperes
- Fuse Type: Fast-Acting
- Body Material: Glass
- Dimensions: 0.25 in (diameter) x 1.25 in (length)
- Mounting Type: Clip
- Product Weight: 0.01 lbs
- Country of Origin: China
Features
- Fast-acting characteristic for rapid circuit protection
- Glass body allows visual inspection of fuse element
- Standard size 1/4" x 1-1/4" (6x32mm) for compatibility with common fuse holders
- UL Listed and CSA Certified for safety and compliance (per manufacturer standards)
