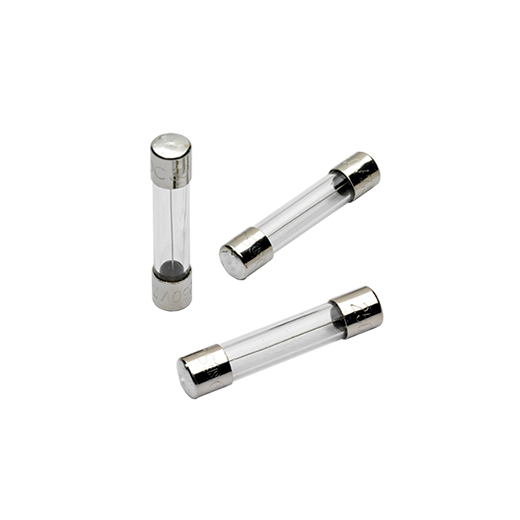

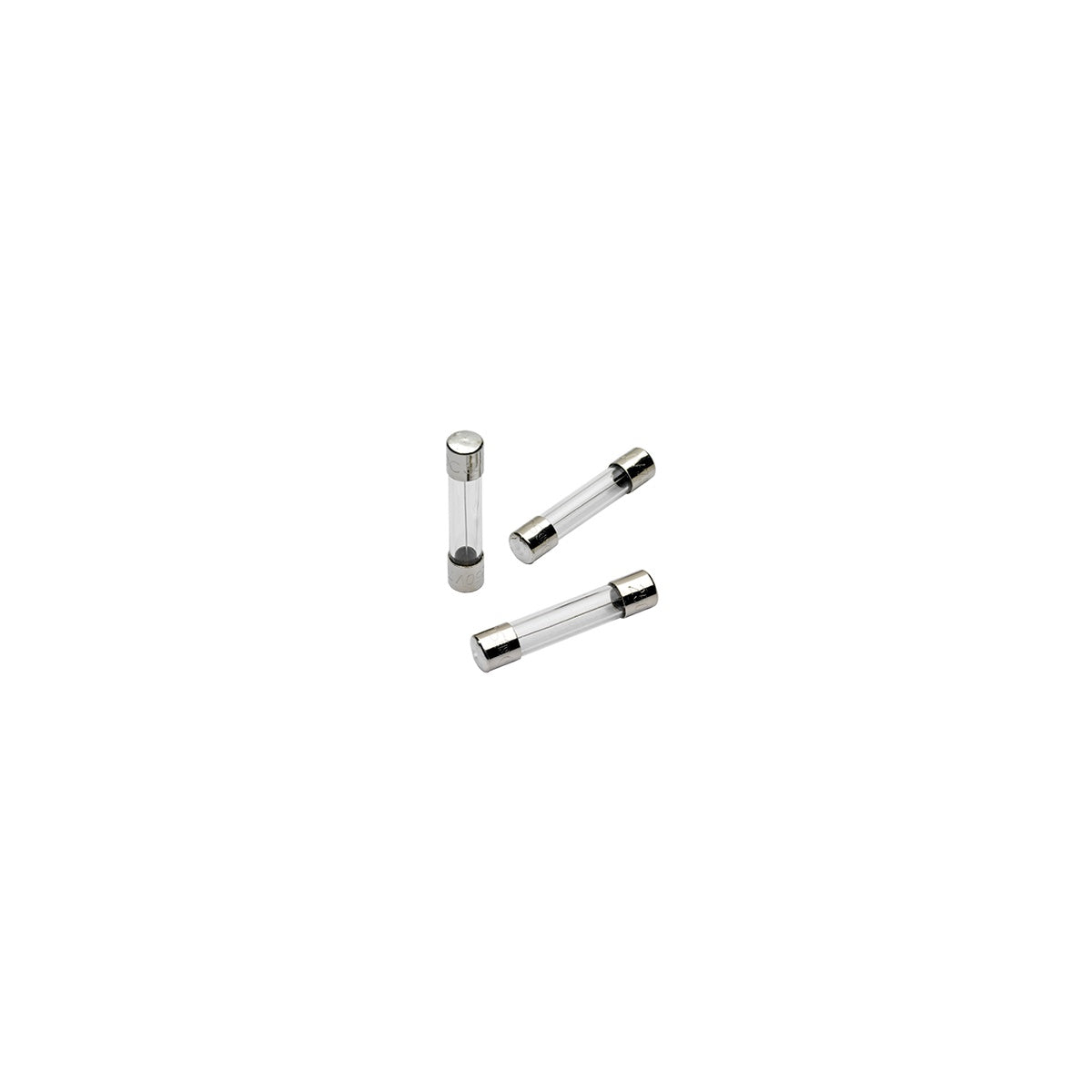

Fuse GGC - Fast-Acting 250V 10A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196446
Part: #GGC10
UPC: 782001760762
Fuse GGC - Fast-Acting 250V 10A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196446
Part: #GGC10
UPC: 782001760762
Description
Fuse GGC - Fast-Acting 250V 10A 6x32mm, 1/4" X 1-1/4" Glass Fuse
This glass-bodied fast-acting fuse is designed for electrical protection applications requiring reliable current interruption up to 250 volts. Suitable for use by electrical distributors and switchgear suppliers, it provides overcurrent protection in lighting solutions, wire and cable assemblies, and various electrical circuits. The fuse is UL Listed and CSA Certified, ensuring compliance with industry safety standards.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: GGC10
- Amperage: 10 amperes
- Voltage Rating: 250V
- Fuse Type: Fast-acting
- Body Material: Glass
- Dimensions: 0.25 in (Diameter) x 1.25 in (Length) x 0.25 in (Width)
- Mounting Type: Clip
- Product Weight: 0.0100 lb
- Country of Origin: China
- UPC: 782001760762
Features
- Fast-acting fuse for quick response to overcurrent conditions
- Standard size of 1/4" x 1-1/4" (6x32mm) for compatibility with common fuse holders
- Glass body allows visual inspection of fuse element
- UL Listed and CSA Certified for safety and regulatory compliance
- Clip mounting type for secure installation
