Fuse GGC - Fast-Acting 250V 0.3A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196471
Part: #GGC3/10
UPC: 782001760588
Fuse GGC - Fast-Acting 250V 0.3A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196471
Part: #GGC3/10
UPC: 782001760588
Description

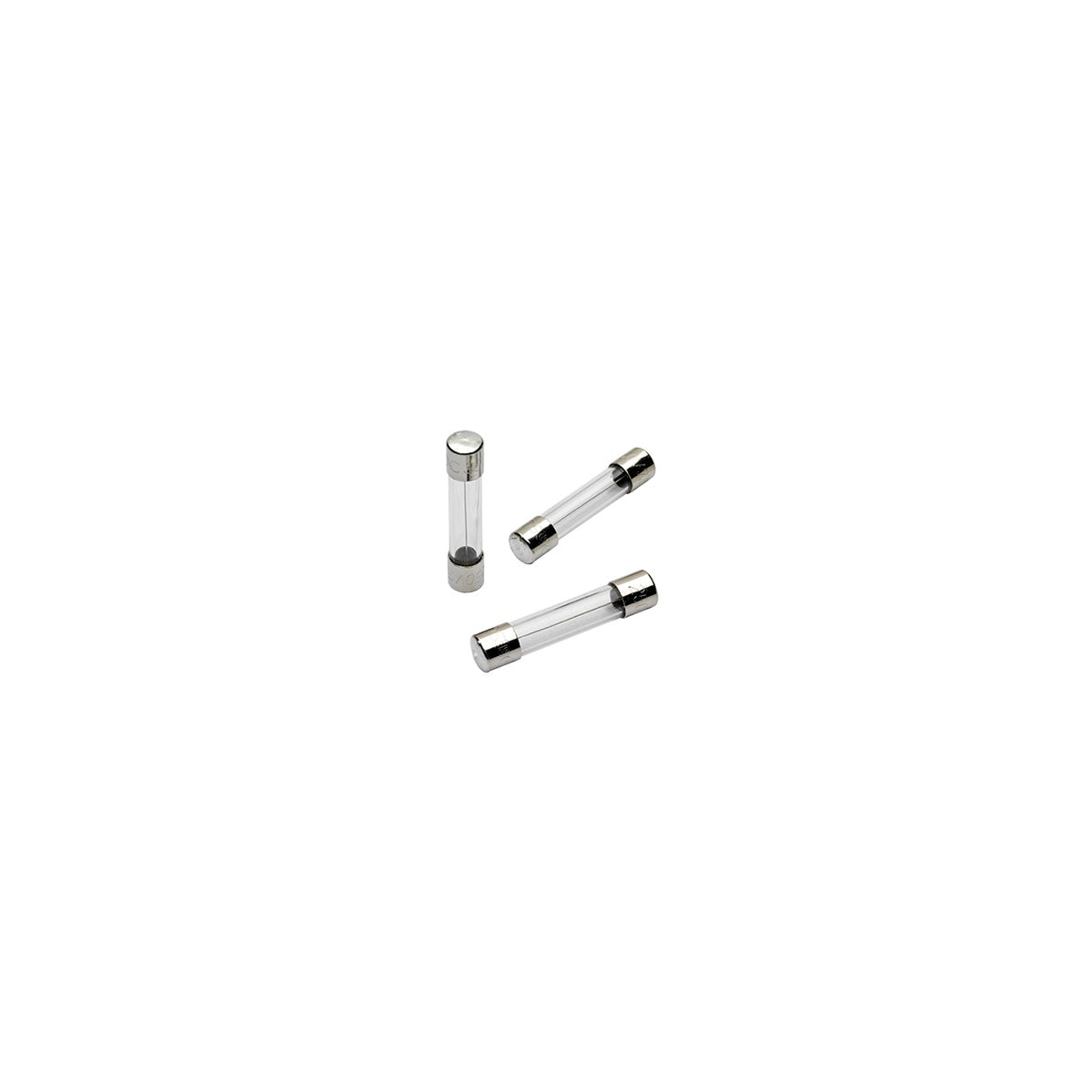

Fuse GGC - Fast-Acting 250V 0.3A 6x32mm, 1/4" X 1-1/4" Glass Fuse
This fast-acting glass fuse is designed for electronic circuits, providing reliable overcurrent protection up to 250 volts. It is suitable for use by electrical distributors and switchgear suppliers seeking compact, precise fusing solutions for wire and cable protection in low-voltage applications.
Specifications
- Amperage: 0.3 amperes
- Voltage Rating: Up to 250V
- Interrupt Rating: 0.2 kA
- Dimensions: 0.25 in (Diameter) x 1.25 in (Length) x 0.25 in (Width)
- Mounting Type: Clip
- Connection: Ferrule
- Weight: 0.0100 lbs
- Manufacturer: Mersen
- Manufacturer Part #: GGC3/10
- Country of Origin: China
- Application: Electronic circuits
Features
- Fast-acting fuse for rapid response to overcurrent conditions
- Glass body construction for visual inspection
- Standard 1/4" x 1-1/4" size for compatibility with common fuse holders
- Clip mounting for secure installation
- Ferrule connection ensuring reliable electrical contact
