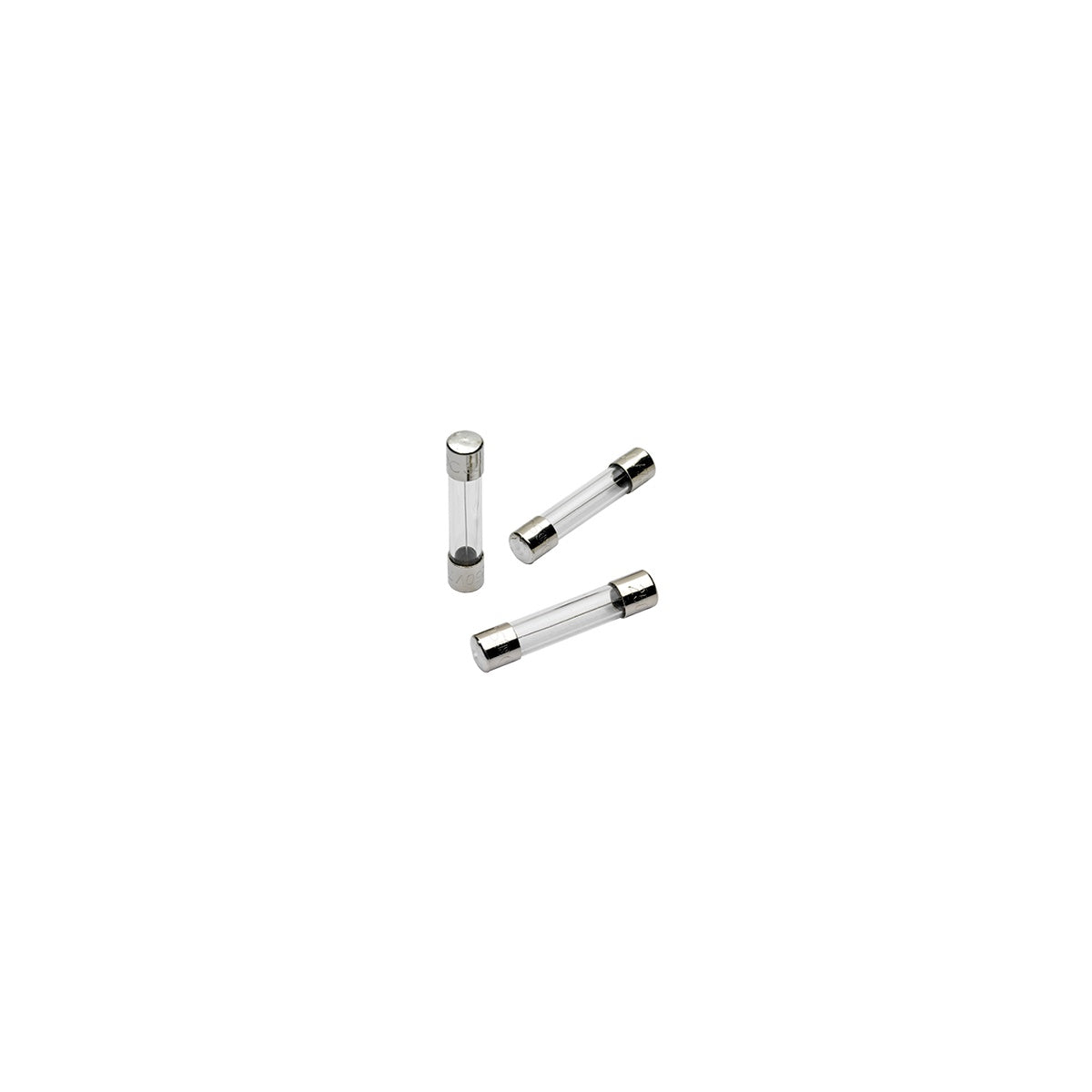

Fuse GGC - Fast-Acting 125V 15A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196447
Part: #GGC15
UPC: 782001760786
Fuse GGC - Fast-Acting 125V 15A 6x32mm, 1/4" X 1-1/4" Glass
SKU: #196447
Part: #GGC15
UPC: 782001760786
Description
Fuse GGC - Fast-Acting 125V 15A 6x32mm Glass Fuse
This Fuse GGC is a fast-acting glass fuse designed for electrical protection in a variety of applications. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable overcurrent protection. The fuse features a glass body and is rated for up to 125 volts and 15 amperes, with a compact size of 1/4" x 1-1/4".
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: GGC15
- Amperage: 15 amperes
- Voltage Rating: 125 volts
- Dimensions: 0.25 in (diameter) x 1.25 in (length) x 0.25 in (width and height)
- Mounting Type: Clip
- Material: Glass body
- Product Weight: 0.0100 lbs
- Country of Origin: China
Features
- Fast-acting fuse for quick response to overcurrent conditions
- Glass body allows visual inspection of fuse element
- Compact size suitable for miniature fuse applications
- UL Listed and CSA Certified for safety and compliance
