Fuse GDL - Time-Delay 250V 6A 6x32mm, 1/4" X 1-1/4"
SKU: #196428
Part: #GDL6
UPC: 782001763343
Fuse GDL - Time-Delay 250V 6A 6x32mm, 1/4" X 1-1/4"
SKU: #196428
Part: #GDL6
UPC: 782001763343
Description
Fuse GDL - Time-Delay 250V 6A 6x32mm, 1/4" X 1-1/4" | Electrical Fuse

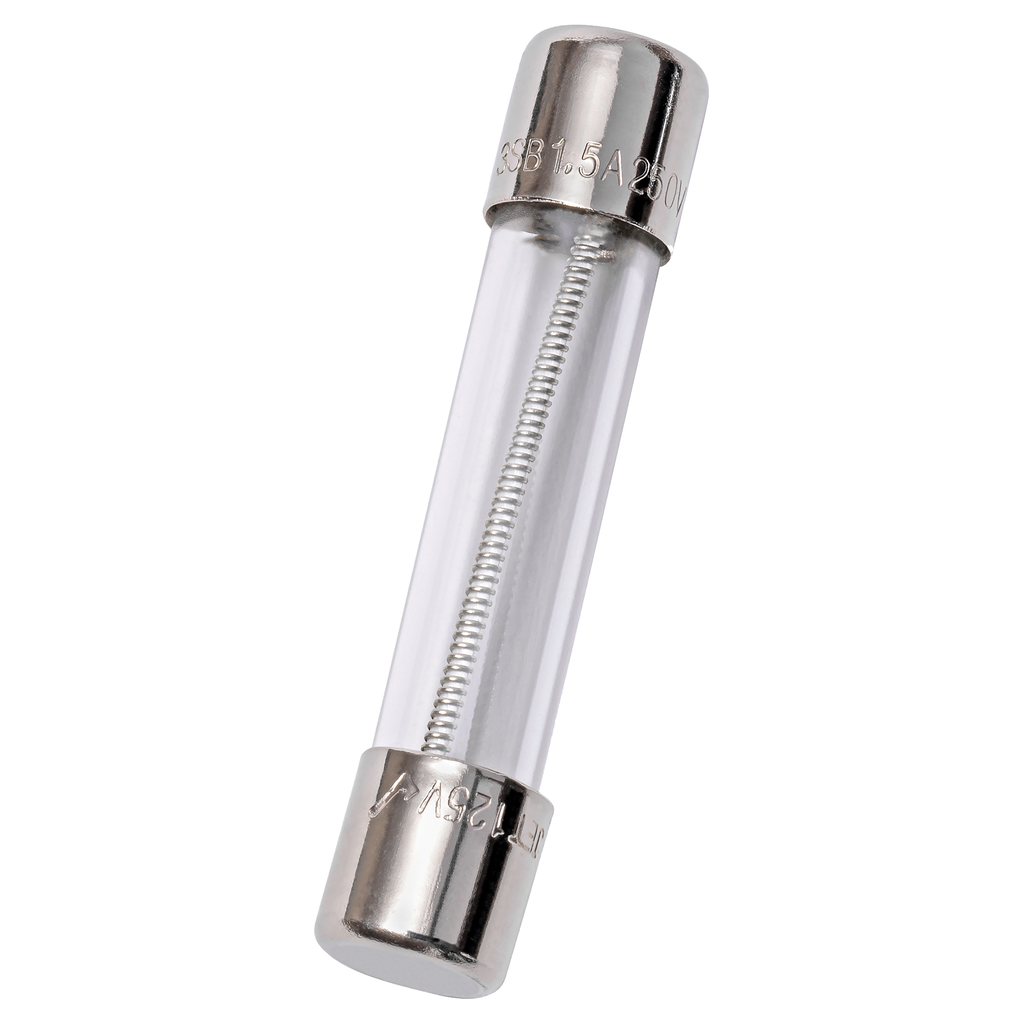

This Fuse GDL is a time-delay glass fuse designed for electrical protection in various applications. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable circuit protection up to 250 volts. The fuse’s time-delay characteristic allows it to withstand temporary current surges without blowing, making it ideal for circuits with transient inrush currents.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: GDL6
- Voltage Rating: Up to 250V
- Amperage: 6 amperes
- Fuse Type: Time Delay
- Material: Glass body
- Dimensions: 1/4" diameter x 1 1/4" length (0.25 in x 1.25 in)
- Mounting Type: Clip
- Product Weight: 0.0100 lbs
- Country of Origin: China
Features
- Glass body construction for clear visual inspection
- Time-delay action to tolerate temporary surges
- Compact 6x32mm size for standard fuse holders
- Clip mounting for secure installation
- UL Listed and CSA Certified for safety compliance (per datasheet on page 1)
