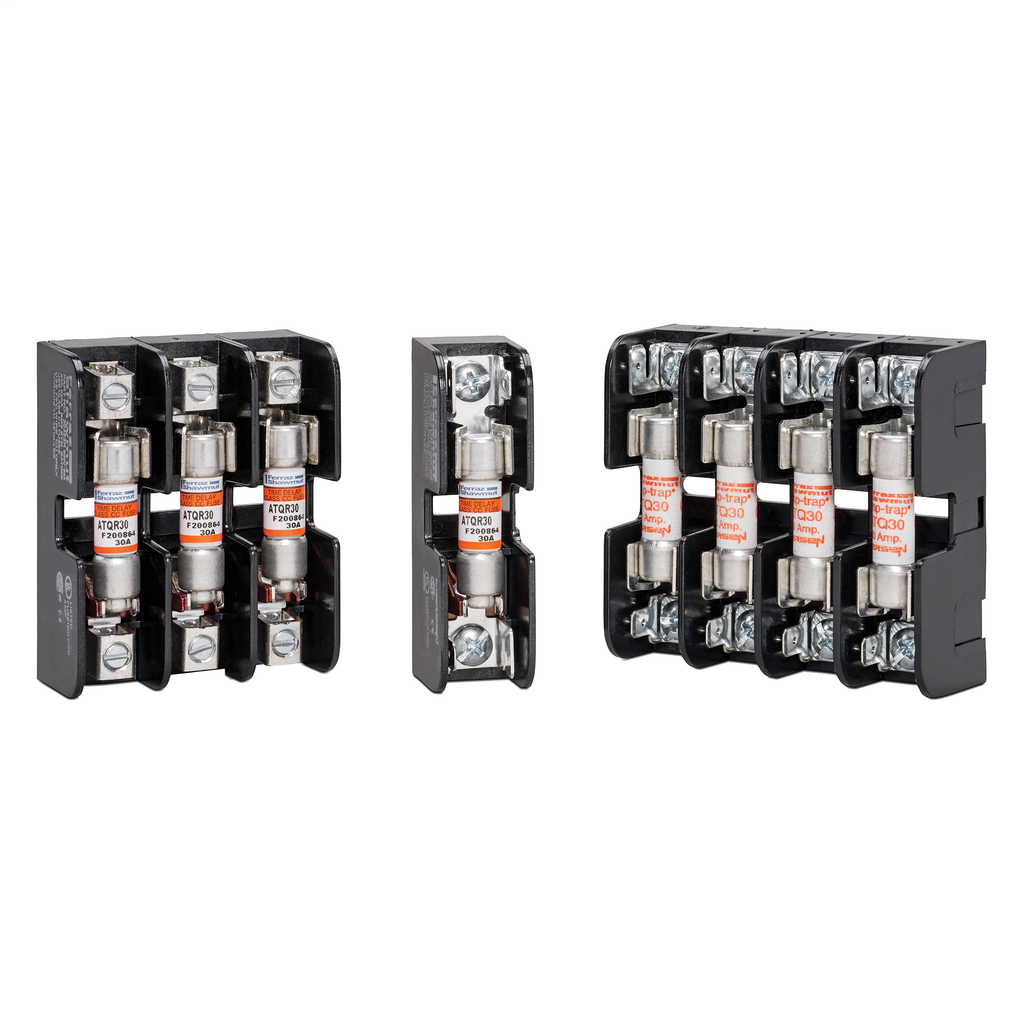

Fuse Bases 600V 30A Midget Adder Tin-Plate CU Pressure Plate with Reinforced Clip

The Mersen Fuse Bases are designed for use with all 30 ampere 1-1/2” x 13/32” midget fuses, providing reliable electrical protection in industrial and commercial applications. These fuse blocks accommodate Class CC fuses as well and offer versatile connection options suitable for a wide range of stranded or solid copper wire. Ideal for electrical distributors and switchgear suppliers, these fuse bases support secure wiring configurations with pressure plate connectors and reinforced clips, ensuring stable and efficient electrical connections.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 30 A
• Class: Midget
• Number of Poles: 1
• Material: Glass Filled Polycarbonate (GFPC)
• Connection Type: Pressure Plate with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 Hz
• Maximum Operating Temperature: 80¬∞C
• Dimensions (L x W x H): 3.04 in x 0.75 in x 1.31 in
• Country of Origin: Mexico
• Manufacturer: Mersen
• Manufacturer Part Number: 30320
• Product Weight: 0.1 lb

Features

• Compatible with all 30 ampere midget and Class CC fuses
• Glass filled polycarbonate insulators with dielectric strength exceeding 2500V
• High conductivity tin-plated copper alloy fuse clips for optimal electrical performance
• Unique adder block design allows snapping onto multi-pole blocks for flexible configurations
• Pressure plate connectors with reinforced clip provide secure and reliable wire connections
• UL recognized and CSA certified to meet industry safety standards
