Fuse Bases 600V 30A Midget 3-pole Tin-Plate CU Pressure Plate with Reinf Clip – Electrical Fuse Bases

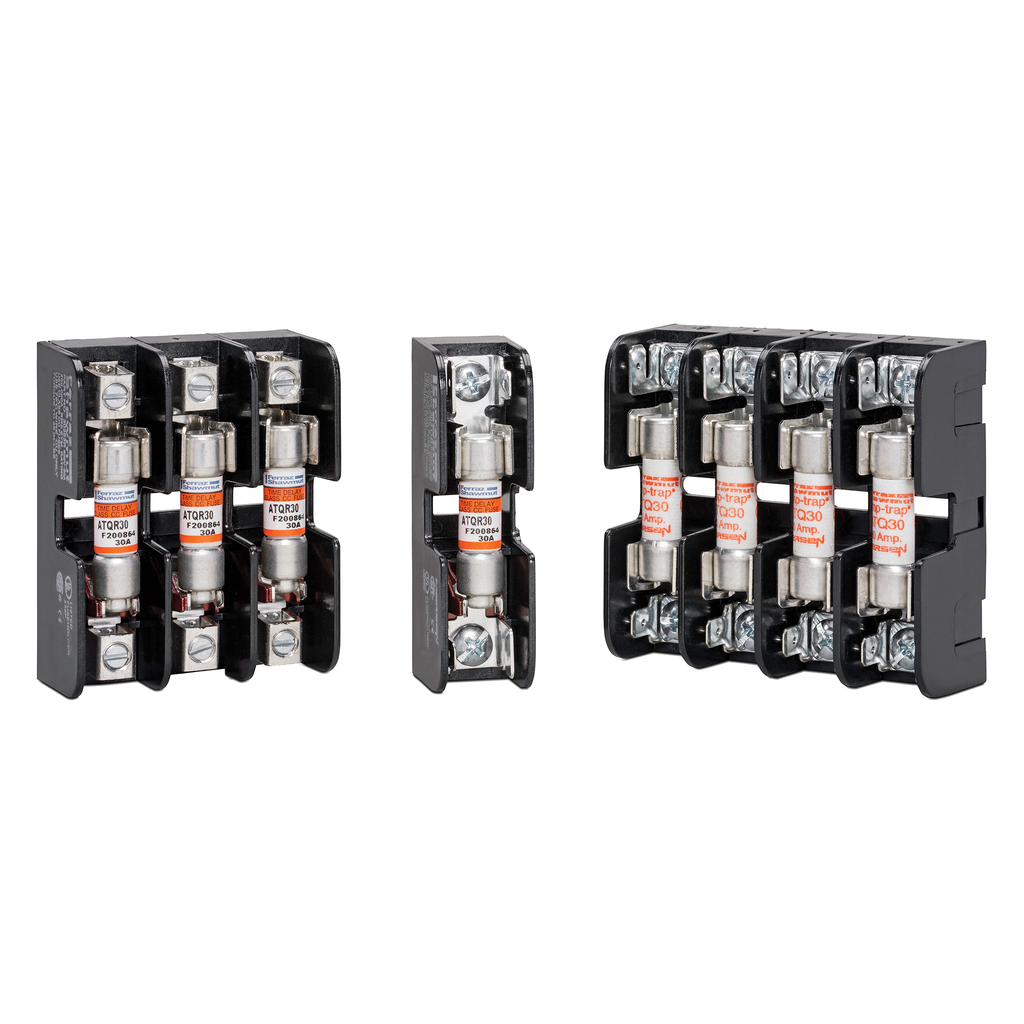

Mersen Fuse Bases are designed for use with 30 ampere midget fuses sized 1-1/2” x 13/32” and Class CC fuses. These 3-pole fuse blocks accommodate various wiring configurations with pressure plate connectors featuring reinforced clips, suitable for stranded or solid copper wire. Constructed with glass-filled polycarbonate insulators, the fuse bases provide verified dielectric strength exceeding 2500V, ensuring reliable electrical insulation. Ideal for electrical distributors and switchgear suppliers requiring robust fuse mounting solutions within lighting and wire and cable applications.

Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/DC
• Number of Poles: 3-pole
• Material: Glass Filled Polycarbonate
• Connection: Pressure Plate with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 Hertz
• Max. Operating Temperature: 80 degrees Celsius
• Dimensions (L x W x H): 3.04 in x 2.35 in x 1.31 in
• Product Weight: 0.35 lbs
• Country of Origin: Mexico
• Manufacturer Part #: 30323

Features

• Accommodates all 30 ampere 1-1/2” x 13/32” midget fuses and Class CC fuses
• High conductivity tin-plated copper alloy fuse clips for optimal electrical performance
• Glass-filled polycarbonate insulators with dielectric strength over 2500V
• Unique adder block system allows easy assembly of multi-pole segmented fuse blocks
• Choice of box, screw, or pressure-plate connectors for versatile wiring options
• UL recognized and CSA certified for safety and compliance
