Fuse Bases 600V 30A Midget 3-pole Tin-Plate Copper Screw with Reinforced Clip – Midget Fuse Blocks

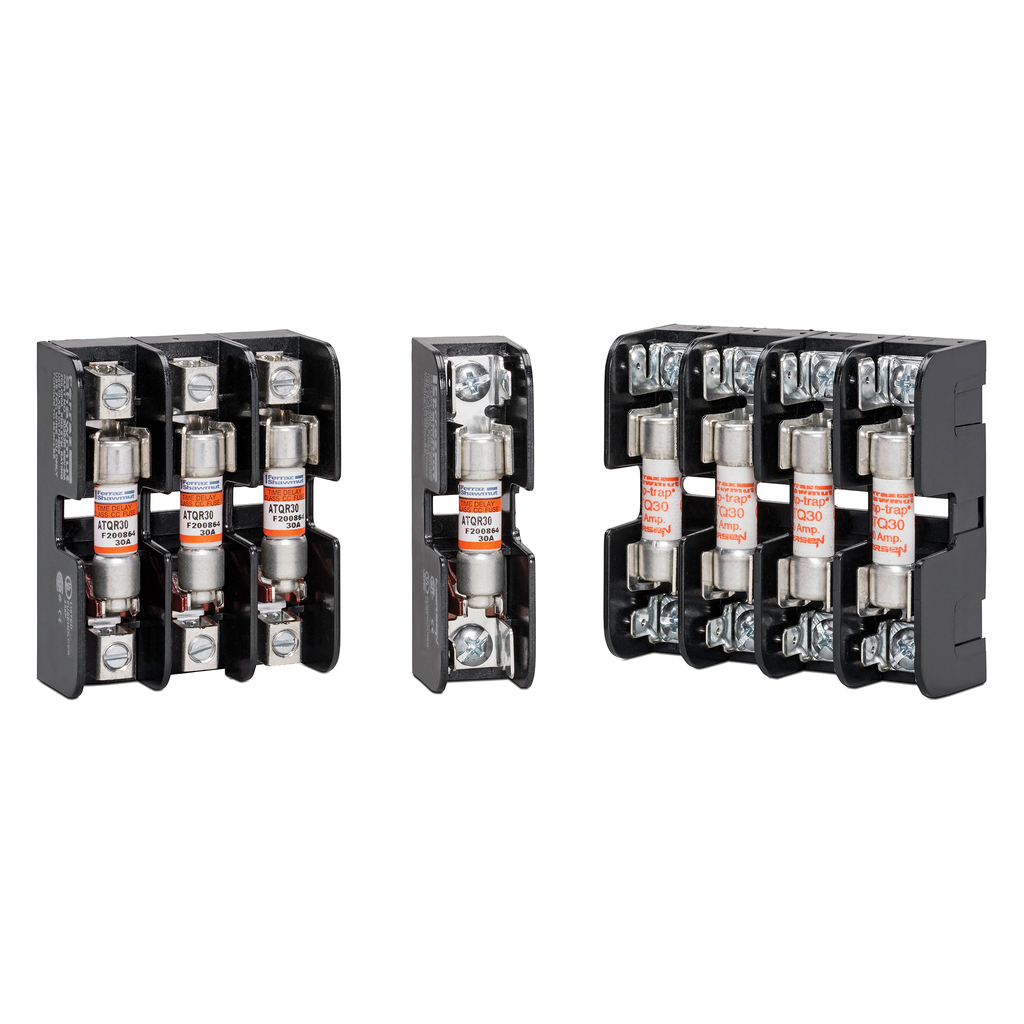

The Mersen Fuse Bases 600V 30A Midget 3-pole with tin-plated copper screw connections and reinforced clips are designed for use with all 30 ampere 1-1/2” x 13/32” midget fuses. These fuse blocks provide reliable electrical protection and are suitable for applications requiring secure fuse mounting and electrical distribution. Ideal for electrical distributors and switchgear suppliers, they accommodate stranded or solid copper wire and support configurations up to three poles, with the option to expand to multi-pole segmented blocks.

Specifications

• Voltage Rating: 600 VAC / DC
• Amperage Rating: 30 amperes
• Number of Poles: 3-pole
• Material: Glass Filled Polycarbonate (GFPC) Insulators
• Connection Type: Screw with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Dimensions (L x W x H): 3.04 in x 2.35 in x 1.31 in
• Maximum Operating Temperature: 80 degrees Celsius
• Fuse Clips: High conductivity tin-plated copper alloy
• Dielectric Strength: Verified in excess of 2500V
• Country of Origin: Mexico

Features

• Accommodates all 30 ampere midget fuses
• Unique adder block design allows snapping onto 1-, 2-, or 3-pole blocks to form multi-pole segmented fuse blocks
• Choice of box, screw, or pressure-plate connectors to fit a wide range of stranded or solid copper wire
• Glass filled polycarbonate insulators with 94V-0 flammability rating and verified dielectric strength
• UL recognized and CSA certified for compliance with industry standards
• Fuse clips made of tin-plated copper alloy for high conductivity and durability
• Recommended mounting screws: #8 (.164" diameter)
