Fuse Bases 600V 30A Midget 3-pole Tin-Plate Copper Copper Box – Electrical Fuse Blocks

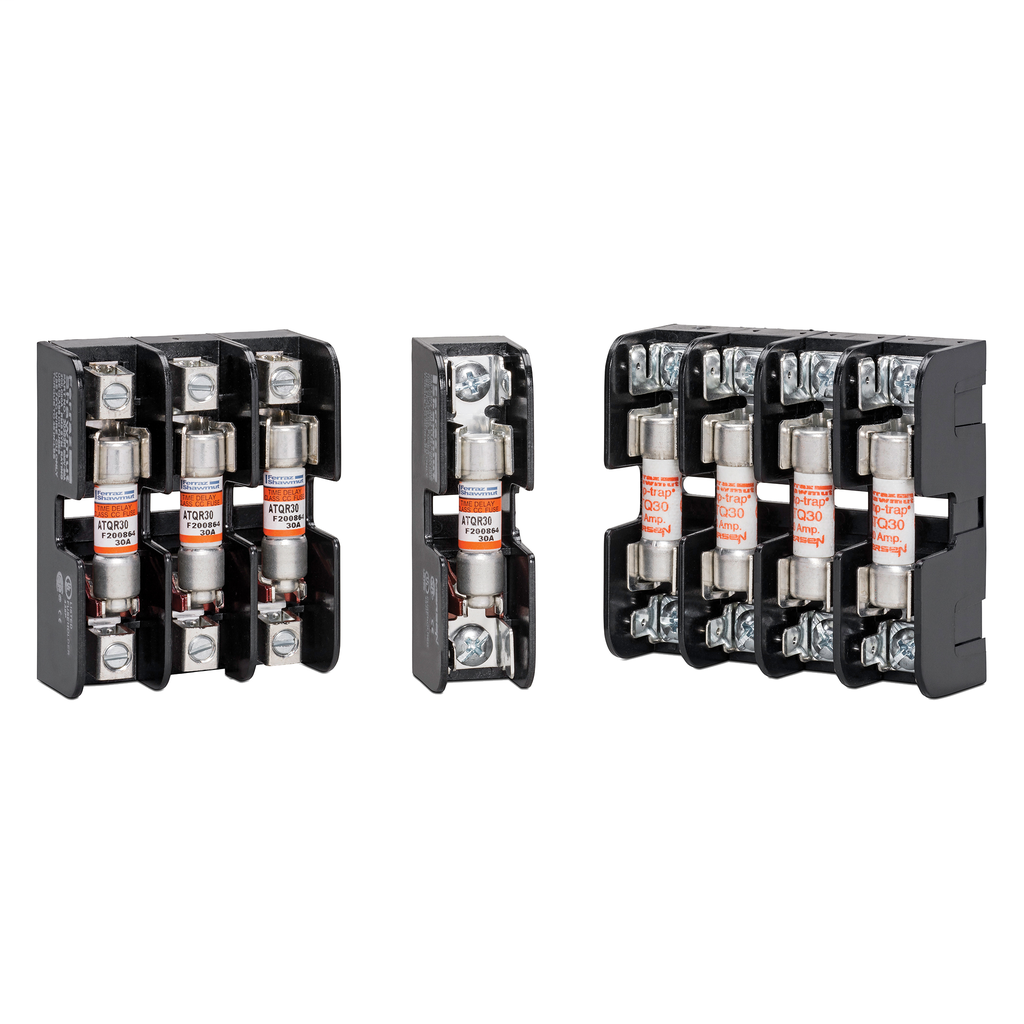

The Mersen Fuse Bases 600V 30A Midget 3-pole Tin-Plate Copper Copper Box is designed for use with all 30 ampere 1-1/2” x 13/32” midget fuses, providing reliable fuse mounting solutions for electrical distributors and switchgear suppliers. These fuse blocks accommodate stranded or solid copper wire with a choice of box, screw, or pressure-plate connectors. Constructed with glass-filled polycarbonate insulators, they offer verified dielectric strength exceeding 2500V, suitable for various lighting solutions and wire and cable applications requiring secure fuse protection.

Specifications

• Amperage: 30 amperes
• Voltage Rating: 600 VAC/DC
• Number of Poles: 3-pole
• Material: Glass Filled Polycarbonate (GFPC) Insulators
• Connection Type: Copper Box
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Dimensions (L x W x H): 3.04 in x 2.35 in x 1.31 in
• Max Operating Temperature: 80 degrees Celsius
• Fuse Clip Material: High conductivity tin-plated copper alloy
• Country of Origin: Mexico

Features

• Compatible with all 30A 1-1/2” x 13/32” midget fuses
• Glass-filled polycarbonate insulators with dielectric strength >2500V
• Unique adder block design enables multi-pole segmented blocks (1-, 2-, or 3-pole and beyond)
• Choice of box, screw, or pressure-plate connectors for versatile wire connection
• Fuse clips made from tin-plated copper alloy for high conductivity and reliability
• UL recognized and CSA certified to meet industry safety standards
