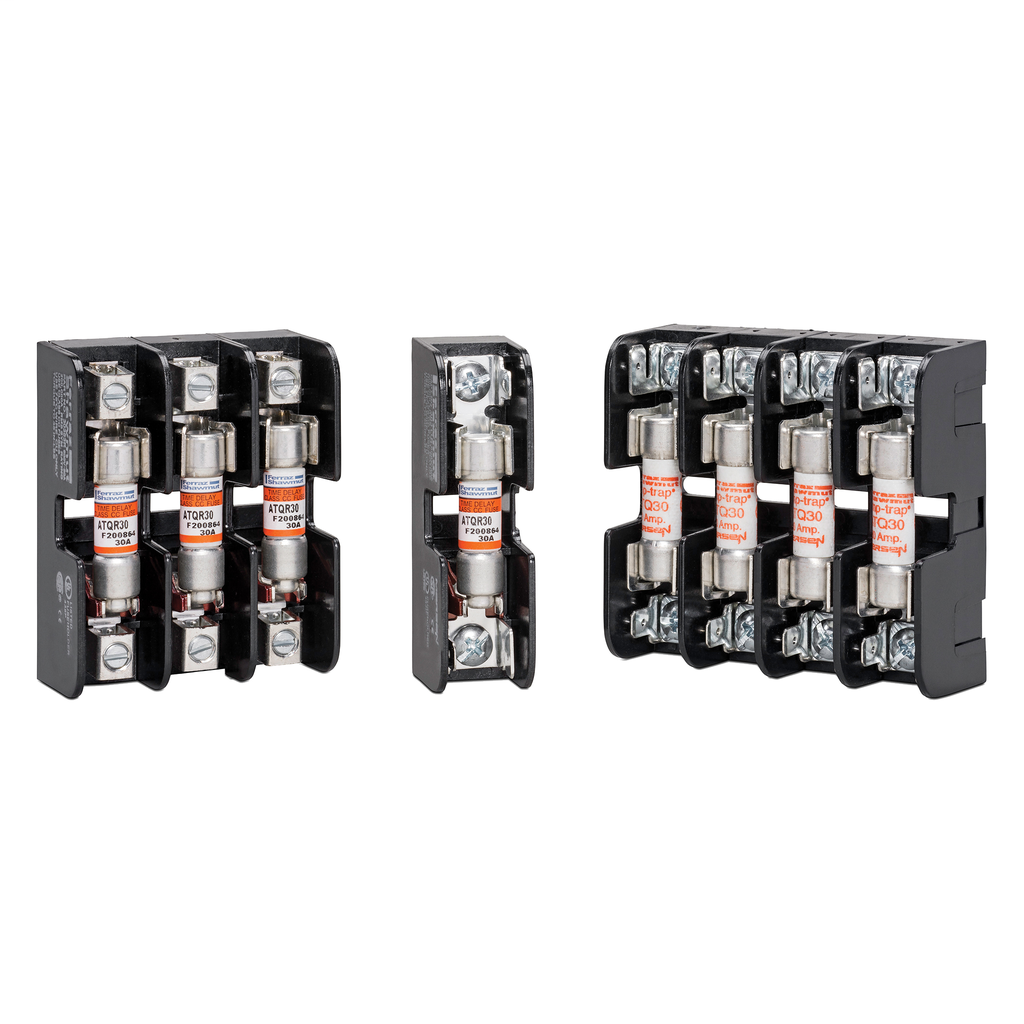

Fuse Bases 600V 30A Midget 2-pole Tin-Plate CU Pressure Plate with Reinf Clip - Midget Fuse Blocks

The Mersen Fuse Bases 600V 30A Midget 2-pole fuse block is designed to accommodate all 30 ampere 1-1/2” x 13/32” midget fuses, providing reliable electrical distribution solutions for industrial and commercial applications. This fuse block is suitable for use by electrical distributors, lighting solutions providers, and switchgear suppliers requiring robust wire and cable connections. It features pressure plate connections with reinforced clips, supporting a wide range of stranded or solid copper wire installations. Constructed with glass-filled polycarbonate insulators, it ensures dielectric strength exceeding 2500V, suitable for demanding electrical environments.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: 30322
• Voltage Rating: 600 VAC / DC
• Amperage Rating: 30 amperes
• Number of Poles: 2-pole
• Material: Glass Filled Polycarbonate
• Connection Type: Pressure Plate with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Maximum Operating Temperature: 80 degrees Celsius
• Dimensions (L x W x H): 3.04 in x 1.6 in x 1.31 in
• Product Weight: 0.23 lbs
• Country of Origin: Mexico

Features

• Accommodates all 30A 1-1/2” x 13/32” midget fuses
• Glass-filled polycarbonate insulators with verified dielectric strength over 2500V
• High conductivity tin-plated copper alloy fuse clips for reliable electrical contact
• Unique adder block design allows for easy assembly of multi-pole segmented blocks
• Pressure plate connectors with reinforced clips support a wide range of copper wire types
• UL recognized and CSA certified for safety and compliance
