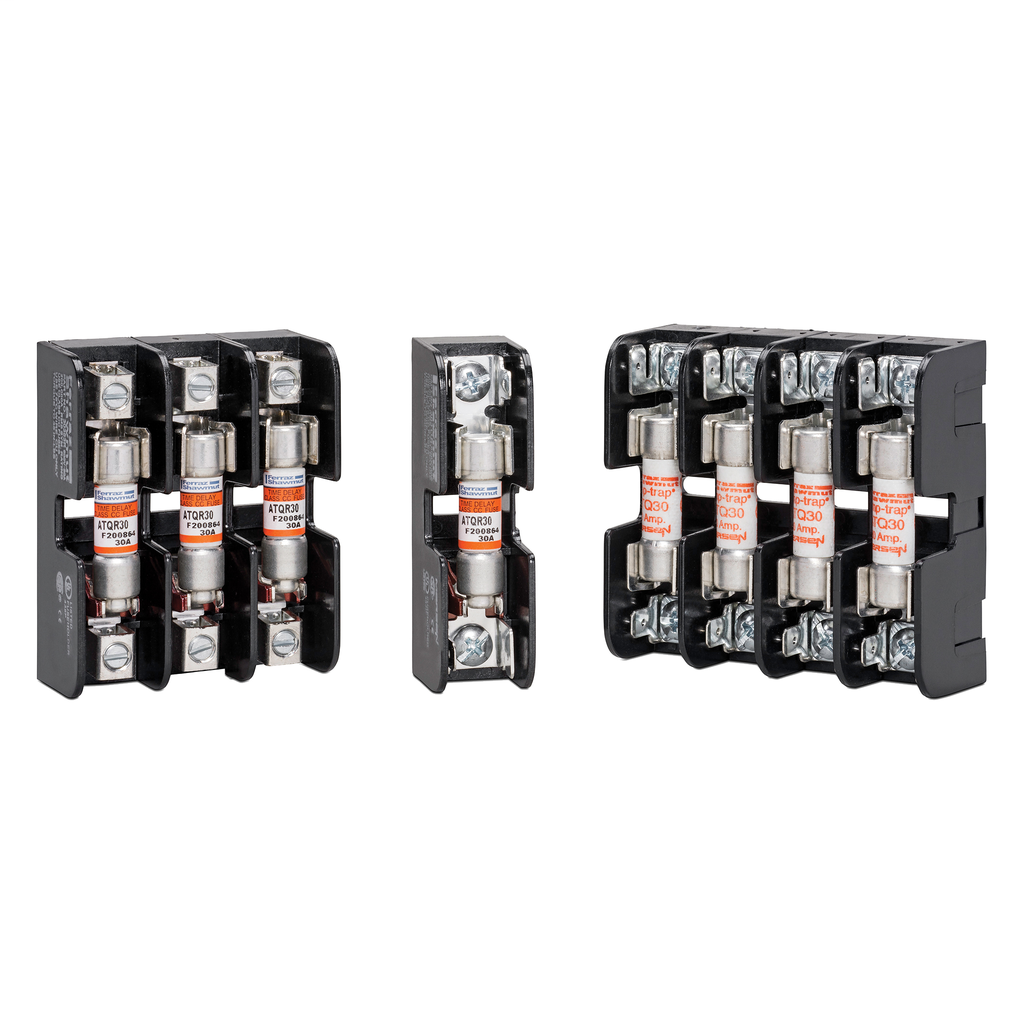

Fuse Bases 600V 30A Midget 2-pole Tin-Plate Copper Screw with Reinforced Clip

Mersen Fuse Bases are designed for electrical distributors and switchgear suppliers requiring reliable fuse blocks for 30 ampere midget fuses. These 600V, 2-pole fuse bases accommodate all 30 ampere 1-1/2” x 13/32” midget fuses and feature screw mounting or DIN rail compatibility. Constructed with glass-filled polycarbonate insulators and high conductivity tin-plated copper alloy fuse clips, they ensure secure connections and verified dielectric strength exceeding 2500V. Suitable for wire and cable applications involving stranded or solid copper conductors, these fuse bases support modular multi-pole configurations for flexible lighting solutions and electrical distribution systems.

Specifications

• Amperage: 30 amperes
• Voltage Rating: 600 VAC / DC
• Number of Poles: 2-pole
• Material: Glass Filled Polycarbonate
• Connection Type: Screw with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Dimensions (L x W x H): 3.04 in x 1.6 in x 1.31 in
• Maximum Operating Temperature: 80 degrees Celsius
• Product Weight: 0.23 lb
• Country of Origin: Mexico
• Manufacturer Part Number: 30312

Features

• Accommodates all 30A 1-1/2” x 13/32” midget fuses
• Glass-filled polycarbonate insulators with verified dielectric strength over 2500V
• High conductivity tin-plated copper alloy fuse clips for reliable electrical contact
• Unique adder block design allows snapping onto 1-, 2-, or 3-pole blocks for multi-pole segmentation
• Screw or DIN rail mounting options for flexible installation
