Fuse Bases 600V 30A Midget 1-pole Tin-Plate CU Pressure Plate with Reinf Clip – Electrical Fuse Base

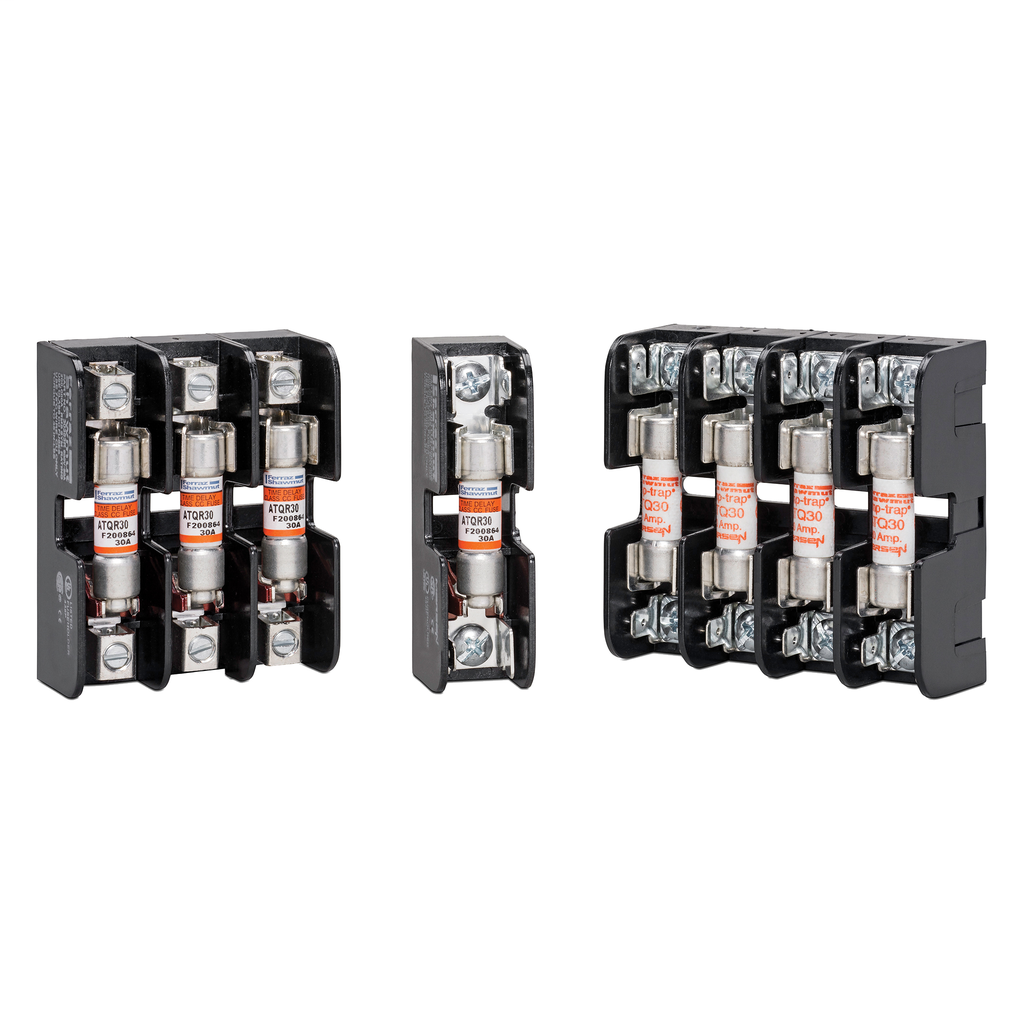

This Mersen fuse base is designed for use with all 30 ampere 1-1/2” x 13/32” midget fuses, suitable for electrical distributors and switchgear suppliers requiring reliable fuse holders. It features a pressure plate connection with reinforced clip, accommodating a wide range of stranded or solid copper wire. The fuse base supports 600V operation at 30 amperes and is intended for mounting via screw or DIN rail, making it adaptable for various electrical and lighting solutions installations.

Specifications

• Amperage Rating: 30 A
• Voltage: 600 VAC / DC
• Class: Midget
• Number of Poles: 1
• Material: Glass Filled Polycarbonate
• Connection: Pressure Plate with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 Hertz
• Max. Operating Temperature: 80 degrees Celsius
• Dimensions (L x W x H): 3.04 in x 0.85 in x 1.31 in
• Product Weight: 0.1100 lbs
• Country of Origin: Mexico
• Manufacturer Part #: 30321

Features

• Accommodates all 30 ampere 1-1/2” x 13/32” midget fuses
• High conductivity tin-plated copper alloy fuse clips
• Glass-filled polycarbonate insulators with dielectric strength over 2500V
• Unique adder block design allows snap-on multi-pole segmented blocks
• Compatible with a wide range of stranded or solid copper wire
• UL recognized component and CSA certified
