Fuse Bases 600V 30A Midget 1-pole Tin-Plate Copper Copper Box – Electrical Fuse Base

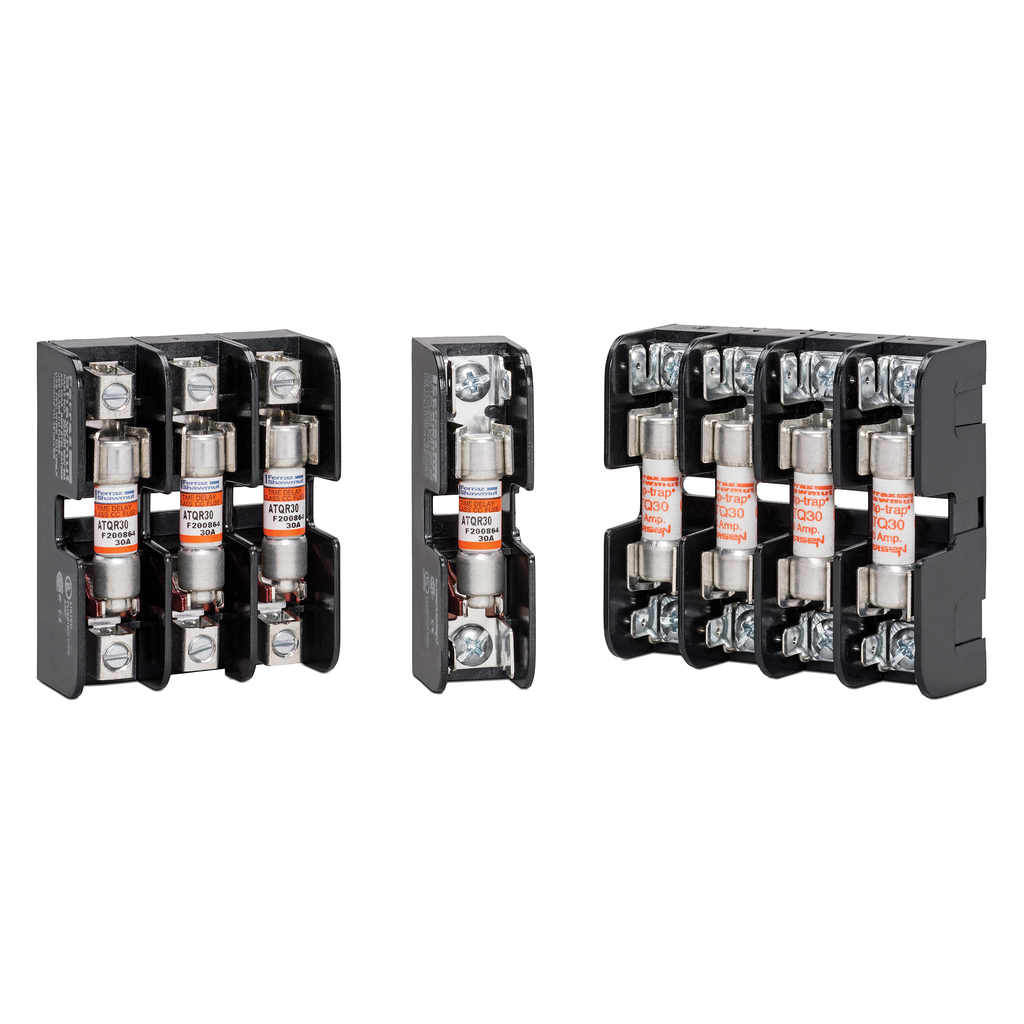

The Mersen Fuse Base 600V 30A Midget 1-pole with tin-plated copper box connection is designed for use with all 30 ampere 1-1/2” x 13/32” midget fuses. It provides a reliable electrical connection for wire and cable applications in industrial and commercial electrical distribution systems. This fuse base is suitable for electrical distributors and switchgear suppliers requiring compact, modular fuse blocks for protection and circuit control. The product features glass-filled polycarbonate insulators with high dielectric strength and tin-plated copper alloy fuse clips for superior conductivity.

Specifications

• Amperage: 30 amperes
• Voltage Rating: 600 VAC/DC
• Frequency: 50 hertz
• Material: Glass Filled Polycarbonate
• Connection Type: Copper Box
• Number of Poles: 1
• Mounting: Screw Mount or DIN Rail
• Dimensions (L x W x H): 3.04 in x 0.85 in x 1.31 in
• Maximum Operating Temperature: 80 degrees Celsius
• Product Weight: 0.1100 lbs
• Country of Origin: Mexico
• Manufacturer: Mersen
• Manufacturer Part Number: 30351

Features

• Accommodates all 30 ampere 1-1/2” x 13/32” midget fuses
• High conductivity tin-plated copper alloy fuse clips
• Glass-filled polycarbonate insulators with dielectric strength exceeding 2500V
• Modular design with unique adder block for multi-pole segmented configurations
• Choice of box, screw, or pressure-plate connectors fitting a wide range of stranded or solid copper wire
• UL recognized and CSA certified for safety and performance
