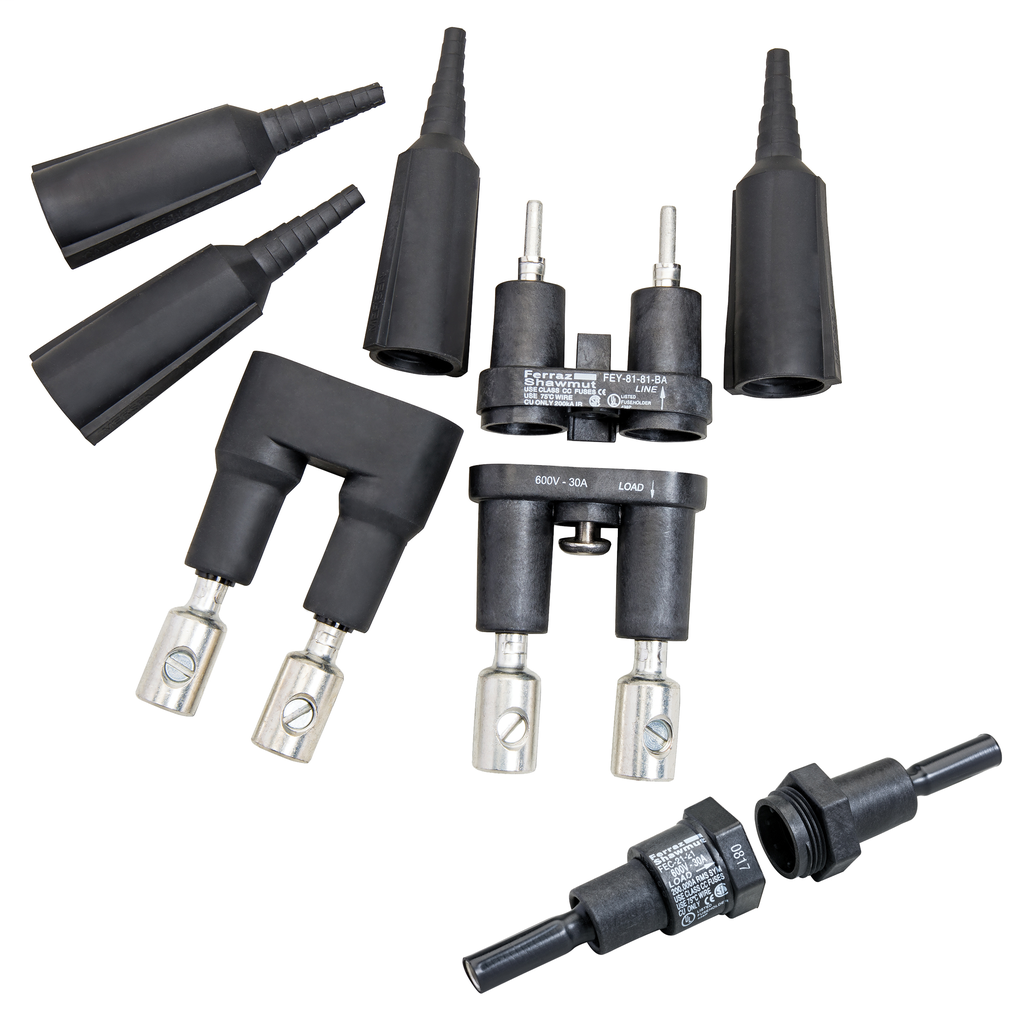

Fuse Bases 600V 30A Midget 1-pole 41-41 Crimp – In-Line Fuse Holder

Mersen’s Fuse Bases 600V 30A Midget 1-pole 41-41 Crimp is an in-line fuse holder designed for quick and secure installation in electrical distribution and lighting solutions. It accommodates 1-1/2" x 13/32" (10 x 38 mm) midget fuses and is suitable for applications including street lighting, parking lot lighting, traffic signaling, sports lighting, boats and marinas, and humid or corrosive environments. This fuse holder features captive securing nuts or screws for faster assembly, and three internal O-rings per pole provide a water-resistant compartment for the fuse, ensuring reliable protection in demanding conditions. The product is compatible with crimp connections and supports a maximum amperage of 30 amperes at 600 volts.

Specifications

• Voltage Rating: 600 VAC / DC
• Amperage Rating: 30 A
• Fuse Class: Midget
• Mounting Type: In-Line
• Connection Type: Crimp
• Material: Polyethylene
• Dimensions (L x W x H): 4.3 in x 1 in x 1 in
• Frequency: 50 Hz
• Maximum Operating Temperature: 80°C
• Country of Origin: Mexico
• Product Weight: 0.1 lb
• Manufacturer Part Number: FEB-41-41

Features

• Quick installation with captive nuts and screws
• Three internal O-rings per pole for water-resistant sealing
• Colored O-rings (blue for single pole) for easy identification
• Optional insulator boots available for watertight seal (breakaway versions include boots)
• Optional breakaway feature for safe load disconnection during pole knockdown
• Fuses remain encapsulated within watertight compartment on load side
• Compatible with Mersen midget fuses such as ATQ, ATM, TRM, OTM, GGU, GFN, A13X-2, A25Z-2, A60Q-2, A6Y-2B
• High heat and impact resistant insulator
• Environmentally friendly design with no lead solder
• Tulip-shaped fuse clips for improved contact and reduced losses
