Fuse Bases 600V 30A Midget 1-pole 21-21 Crimp - In-Line Fuse Holder

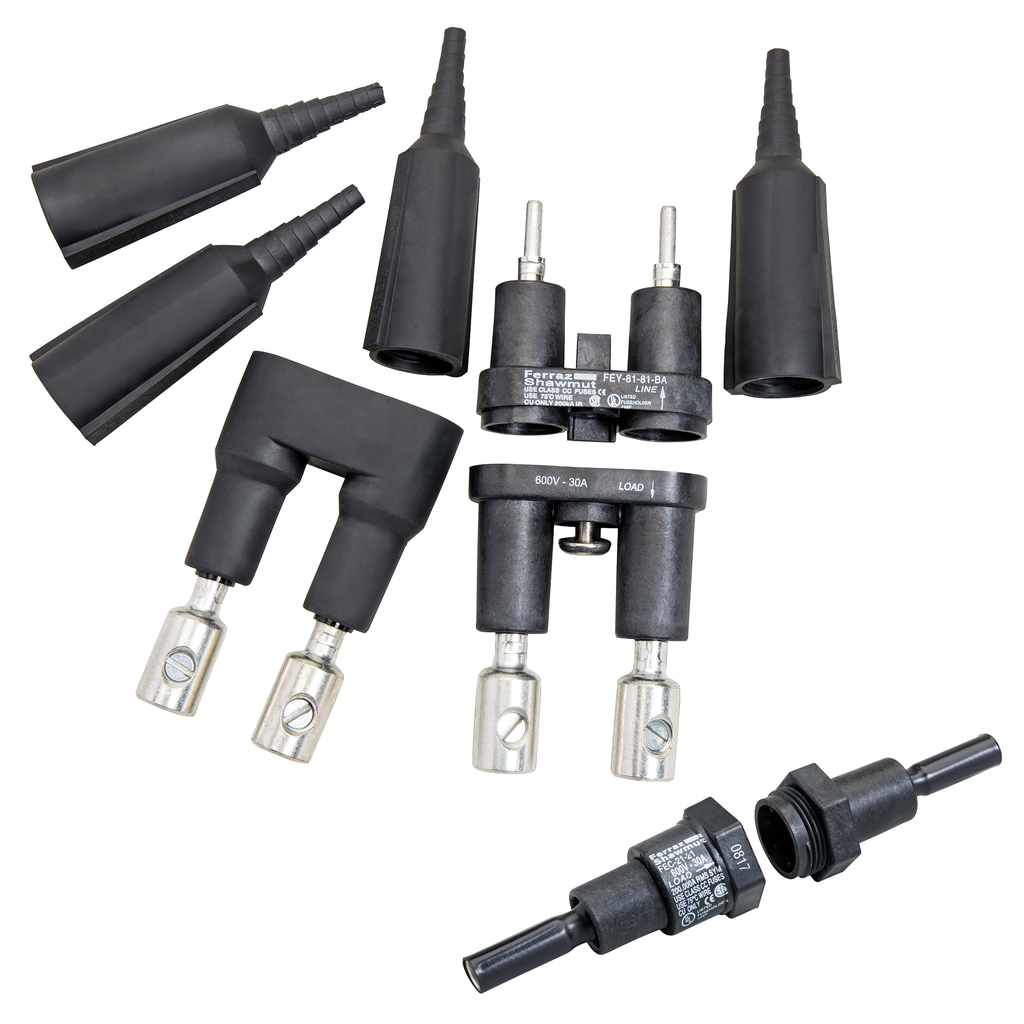

This Mersen Fuse Base is a 600 Volt, 30 Amp single-pole in-line fuse holder designed to accommodate 1-1/2" x 13/32" (10 x 38 mm) midget fuses. It is engineered for quick installation in electrical distribution and lighting solutions, including street lighting, parking lot lighting, traffic signaling, sports lighting, and marine environments. The fuse holder features captive securing nuts or screws to streamline field assembly and three internal O-rings per pole for a water-resistant seal, suitable for humid and corrosive environments. Optional cone-shaped insulator boots provide additional watertight protection. The fuse holder's breakaway versions safely disconnect the load during pole knockdown events, ensuring safety and easy reconnection once the pole is restored.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 30 amperes
• Fuse Class: Midget
• Mounting Type: In-Line
• Connection Type: Crimp
• Dimensions (L x W x H): 4.3 in x 1 in x 1 in
• Material: Polyethylene
• Frequency: 50 hertz
• Maximum Operating Temperature: 80 degrees Celsius
• Country of Origin: Mexico
• Manufacturer Part Number: FEB-21-21
• Product Weight: 0.1000 lbs

Features

• Captive nuts and screws for rapid installation
• Three internal O-rings per pole provide water-resistant sealing
• Colored O-rings (blue for single pole) for quick identification
• Optional cone-shaped insulator boots for watertight seal (standard on breakaway versions)
• Optional breakaway feature safely disconnects load during pole knockdown
• Fuses remain encapsulated within watertight compartment on load side
• Compatible with Midget fuses including ATQ, ATM, TRM, OTM, GGU, GFN, A13X-2, A25Z-2, A60Q-2, A6Y-2B
• High heat and impact resistant insulator
• Designed for use in humid, corrosive, and outdoor environments
