Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp – In-Line Fuse Holder

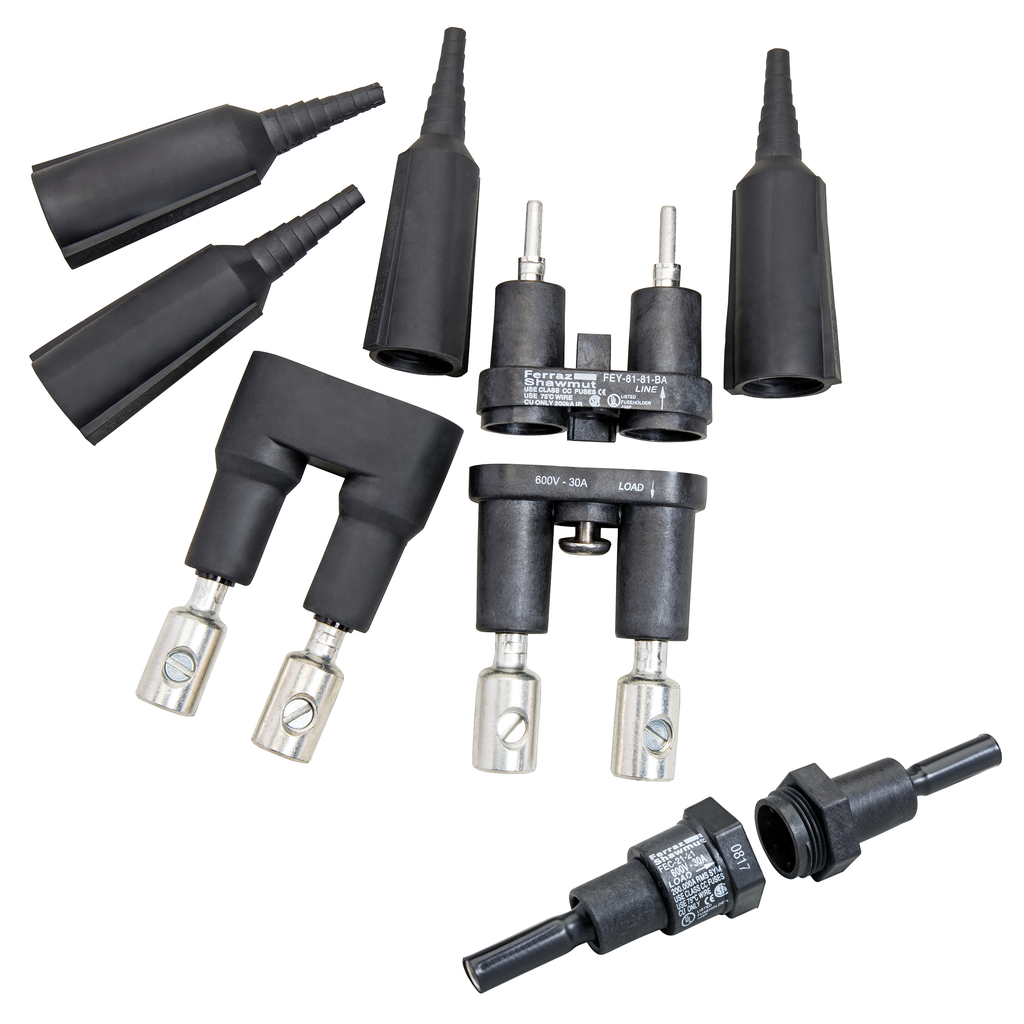

Mersen’s Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp is part of a complete line of single and dual pole in-line fuse holders designed to accommodate 1-1/2" x 13/32" (10 x 38 mm) midget fuses. Engineered for quick installation, these fuse holders feature captive securing nuts or screws that reduce assembly time by eliminating loose components in the field. The design includes three internal O-rings per pole providing a water-resistant compartment, with captive O-rings color-coded blue for single pole units for easy identification. Optional cone-shaped insulator boots can be added for a watertight seal. The fuse holder supports use in demanding applications such as street lighting, parking lot lighting, traffic signaling, sports lighting, boats and marinas, and humid or corrosive environments, making it suitable for electrical distributors and lighting solutions providers.

Specifications

• Voltage Rating: 600 V
• Amperage Rating: 30 A
• Fuse Class: Midget
• Mounting Type: In-Line
• Connection Type: Crimp
• Material: Polyethylene
• Frequency: 50 Hz
• Maximum Operating Temperature: 80 °C
• Dimensions (L x W x H): 4.3 in x 1 in x 1 in
• Product Weight: 0.1 lb
• Country of Origin: Mexico
• Manufacturer Part Number: FEB-11-11

Features

• Captive nuts and screws for faster installation
• Three internal O-rings per pole for water resistance
• Color-coded O-rings for quick pole identification
• Optional cone-shaped insulator boots for watertight sealing
• Breakaway feature available for safe load disconnection during pole knockdown
• Fuses remain encapsulated within the watertight fuse holder on the load side
• Compatible with Mersen’s 1-1/2" x 13/32" midget fuses
• Designed for use in harsh environments including humid and corrosive conditions
