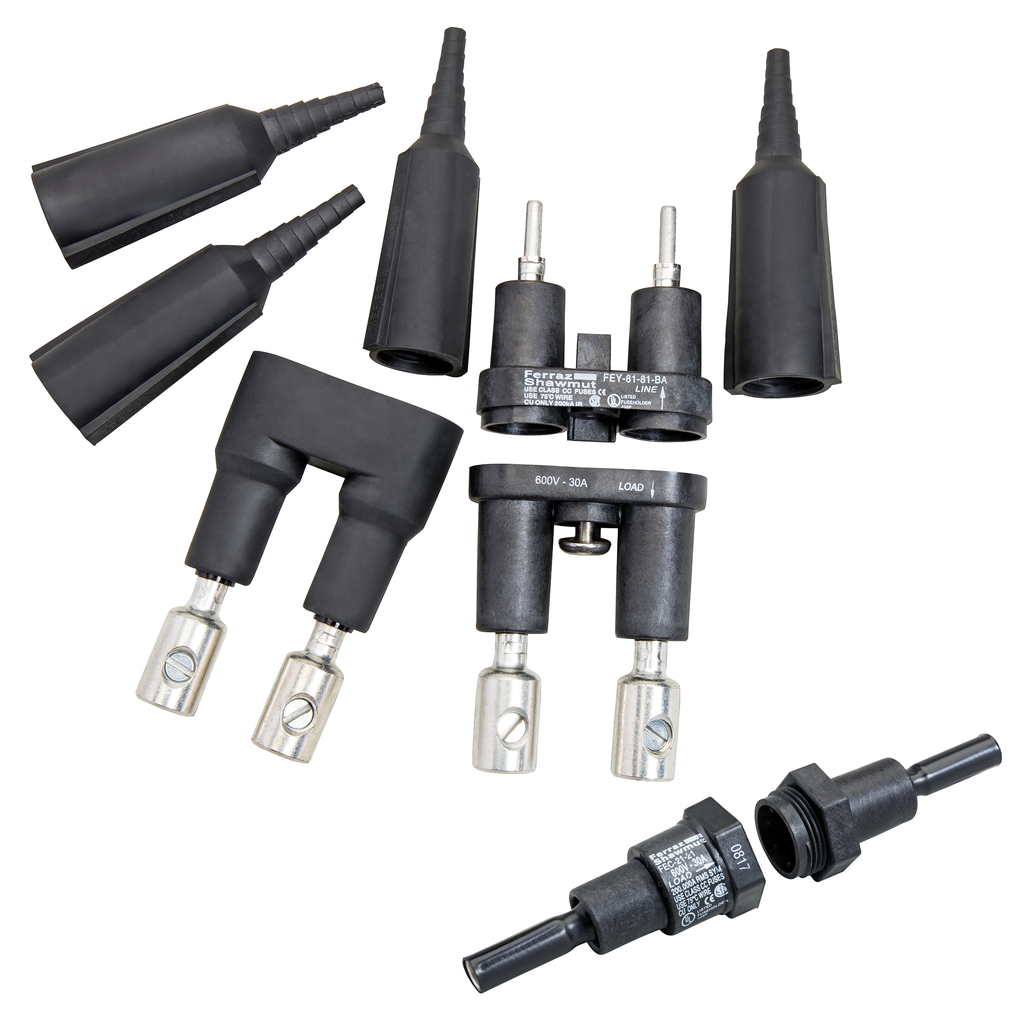

Fuse Bases 600V 30A Midget 1-pole 11-11 Breakaway Crimp – In-Line Fuse Holder

Mersen’s Fuse Bases 600V 30A Midget 1-pole 11-11 Breakaway Crimp fuse holder is designed for quick installation and reliable protection in electrical distribution and lighting solutions. It accommodates 1-1/2" x 13/32" (10 x 38 mm) midget fuses and is suitable for applications including street lighting, parking lot lighting, traffic signaling, sports lighting, boats, marinas, and humid or corrosive environments. This in-line fuse holder features captive nuts and screws to reduce installation time and three internal O-rings per pole for a water-resistant seal. The breakaway design safely disconnects the load in case of pole knockdown, ensuring fuse protection remains intact and watertight on the load side.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 30 A
• Fuse Class: Midget
• Mounting: In-Line
• Connection Type: Crimp
• Material: Polyethylene
• Dimensions (L x W x H): 5.8 in x 1 in x 1 in
• Frequency: 50 Hz
• Maximum Operating Temperature: 80 °C
• Product Weight: 0.2 lbs
• Country of Origin: Mexico

Features

• Quick installation with captive nuts and screws
• Three internal O-rings per pole for water-resistant sealing
• Colored O-rings (blue for single pole) for fast identification
• Optional cone-shaped insulator boots provide watertight seal (standard on breakaway versions)
• Breakaway feature safely disconnects load during pole knockdown
• Fuses remain encapsulated in watertight compartment on load side
• Compatible with a wide range of midget fuses
• Designed for use in harsh and humid/corrosive environments
