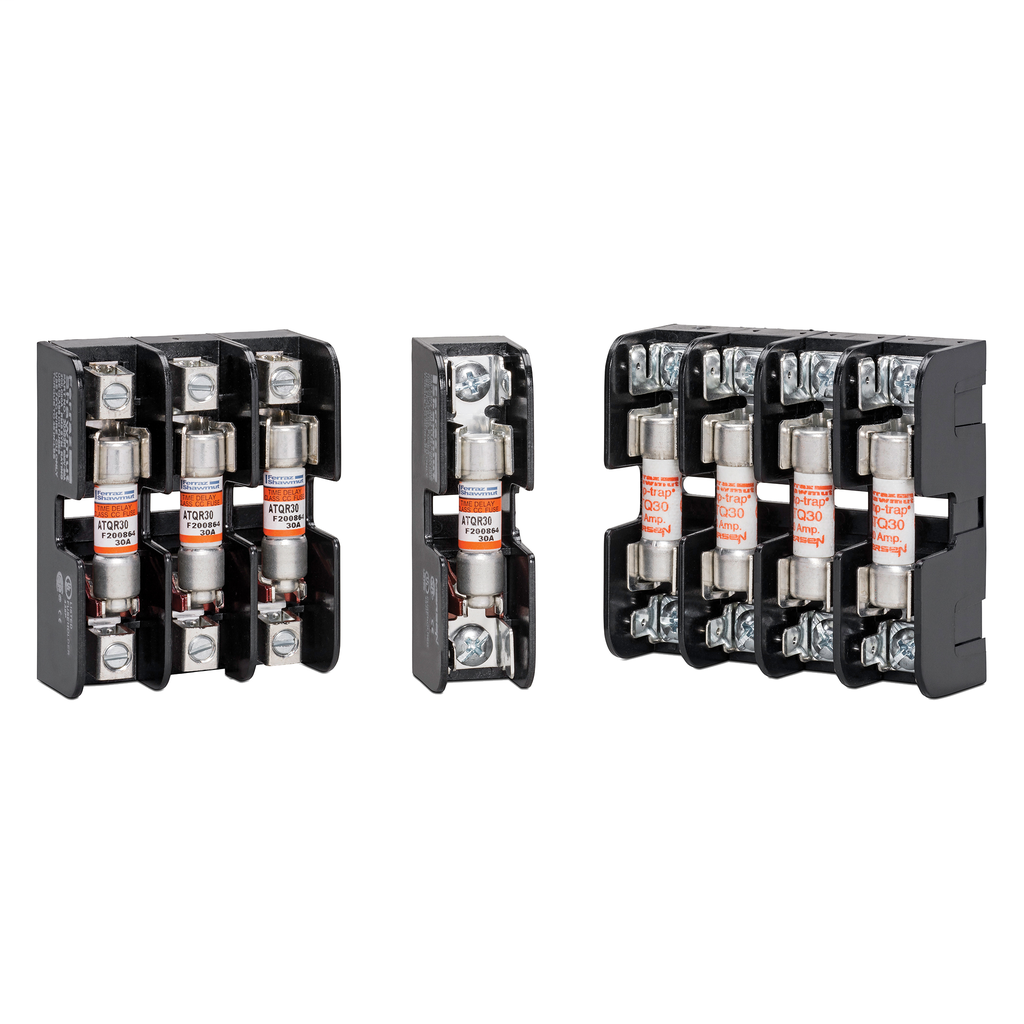

Fuse Bases 600V 30A Class CC Adder Tin-Plate CU Pressure Plate with Reinf Clip

This Mersen fuse base is designed for use with all 30 ampere Class CC fuses, providing reliable electrical protection in industrial and commercial applications. It features a pressure plate connection with a reinforced clip, suitable for a wide range of stranded or solid copper wire. Constructed with glass-filled polycarbonate insulators, it offers verified dielectric strength exceeding 2500V and supports mounting via screw or DIN rail. This fuse base is ideal for electrical distributors and switchgear suppliers requiring durable and versatile fuse holders for wire and cable installations.

Specifications

• Amperage: 30 amperes
• Voltage Rating: 600 VAC/DC
• Class: Class CC
• Material: Glass Filled Polycarbonate
• Connection: Pressure Plate with Reinforced Clip
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Number of Poles: 1
• Max. Operating Temperature: 80 degrees Celsius
• Dimensions (L x W x H): 3.04 in x 2.35 in x 1.31 in
• Product Weight: 0.1 lb
• Country of Origin: Mexico
• Manufacturer Part #: 30320R

Features

• Accommodates all 30 ampere Class CC fuses
• High conductivity tin-plated copper alloy fuse clips for reliable electrical contact
• Glass-filled polycarbonate insulators with dielectric strength over 2500V
• Unique adder block design enables multi-pole segmented blocks by snapping onto 1-, 2-, or 3-pole blocks
• Compatible with a wide range of stranded or solid copper wire
• UL recognized and CSA certified for safety and performance compliance
