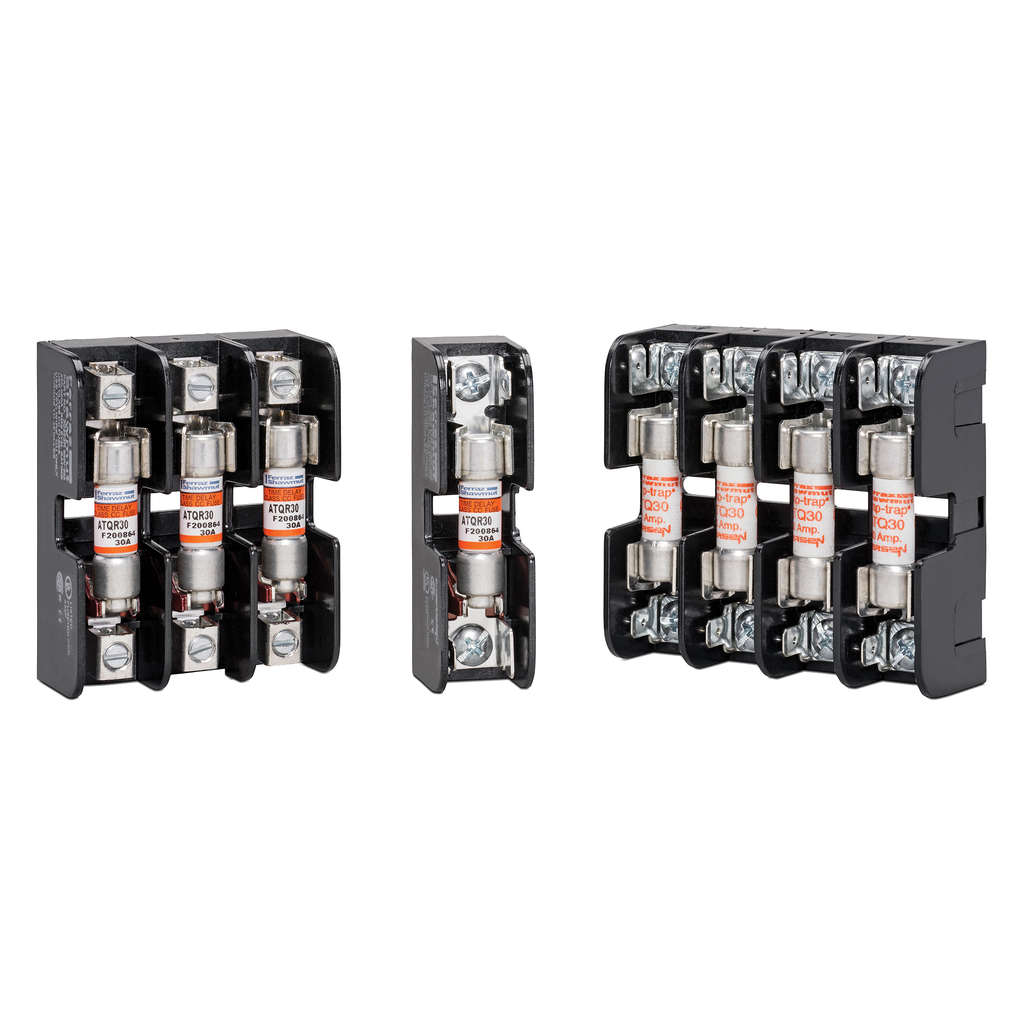

Fuse Bases 600V 30A Class CC Adder Tin-Plate Copper Copper Box – Electrical Fuse Block

The Mersen Fuse Bases 600V 30A Class CC Adder with Tin-Plated Copper Box connection is designed for electrical distribution applications requiring reliable fuse protection. This fuse block accommodates all 30 ampere Class CC fuses and midget fuses sized 1-1/2” x 13/32”. It is suitable for use in wire and cable assemblies and switchgear supplied by electrical distributors and lighting solutions providers. The product supports screw mount or DIN rail mounting, facilitating flexible installation in various industrial and commercial electrical systems.

Specifications

• Amperage: 30 amperes
• Voltage Rating: 600 VAC/DC
• Class: Class CC
• Material: Glass Filled Polycarbonate (GFPC)
• Connection Type: Copper Box
• Mounting: Screw Mount or DIN Rail
• Frequency: 50 hertz
• Number of Poles: 1
• Dimensions (L x W x H): 3.04 in x 2.35 in x 1.31 in
• Maximum Operating Temperature: 80 degrees Celsius
• Product Weight: 0.1 lb
• Country of Origin: Mexico
• Manufacturer Part Number: 30350R

Features

• Accommodates all 30 ampere Class CC and midget fuses
• Insulators made from glass-filled polycarbonate with dielectric strength exceeding 2500V
• High conductivity tin-plated copper alloy fuse clips for reliable electrical contact
• Unique adder block design allows snapping onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks
• Supports a wide range of stranded or solid copper wire connections
• UL recognized and CSA certified for safety and performance
