Fuse Bases 600V 30A Class CC 1-pole Tin-Plate CU Screw with Reinforced Clip
SKU: #193867
Part: #30311R
UPC: 782001758394
Fuse Bases 600V 30A Class CC 1-pole Tin-Plate CU Screw with Reinforced Clip
SKU: #193867
Part: #30311R
UPC: 782001758394
Description
Fuse Bases 600V 30A Class CC 1-pole Tin-Plate CU Screw with Reinforced Clip

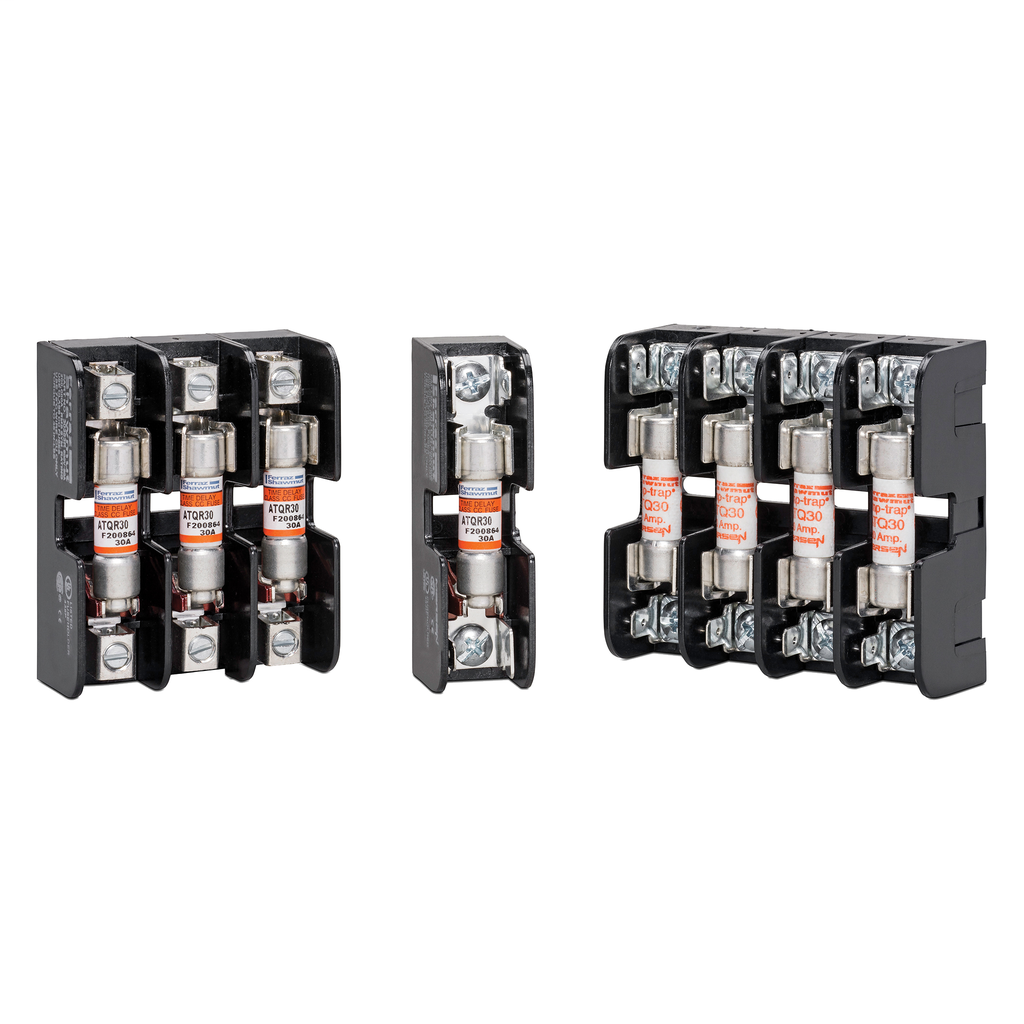

This Mersen fuse base is designed for use with 30 ampere Class CC fuses, providing reliable electrical protection in industrial and commercial applications. It supports a 600V rating and is suitable for integration by electrical distributors and switchgear suppliers requiring durable fuse holders for wire and cable connections. The product features screw mounting or DIN rail compatibility, making it adaptable for various electrical panel setups.
Specifications
- Amperage Rating: 30 A
- Voltage Rating: 600 V AC/DC
- Number of Poles: 1
- Material: Glass Filled Polycarbonate
- Connection Type: Screw with Reinforced Clip
- Mounting: Screw Mount or DIN Rail
- Frequency: 50 hertz
- Max. Operating Temperature: 80 degrees Celsius
- Dimensions (L x W x H): 3.04 in x 0.75 in x 1.31 in
- Product Weight: 0.1100 lb
- Country of Origin: Mexico
- Manufacturer Part #: 30311R
- Fuse Class: Class CC
Features
- Accommodates all 30 ampere Class CC fuses
- Glass-filled polycarbonate insulators with dielectric strength exceeding 2500V
- High conductivity tin-plated copper alloy fuse clips
- Unique adder block system for creating multi-pole segmented blocks
- Compatible with a wide range of stranded or solid copper wire
- UL recognized and CSA certified for safety and performance
