Fuse Bases 600V 30A Class CC 1-pole 11-11 Crimp – In-Line Fuse Holder

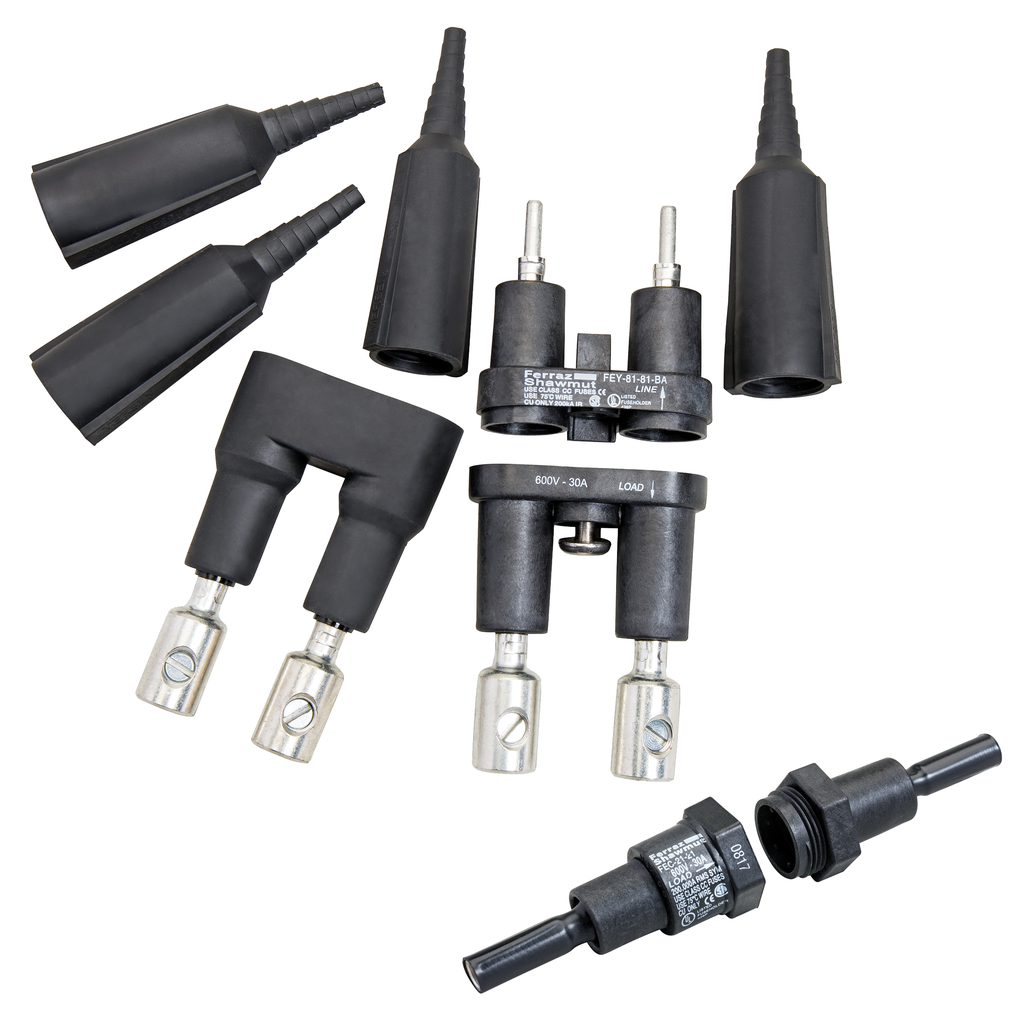

Mersen’s Fuse Bases 600V 30A Class CC 1-pole 11-11 Crimp fuse holder is designed for use in electrical distribution and lighting solutions, accommodating Class CC fuses for circuit protection. Suitable for applications such as street lighting, parking lot lighting, traffic signaling, sports lighting, boats, marinas, and humid or corrosive environments, this in-line fuse holder ensures reliable and quick installation for electrical distributors and switchgear suppliers. The fuse holder features a water-resistant compartment sealed by three internal O-rings per pole, with color-coded O-rings for fast identification. Optional insulator boots provide additional watertight sealing. The breakaway version offers safe load disconnection in case of pole knockdown, with fuses remaining encapsulated for protection and easy reconnection after maintenance.

Specifications

• Manufacturer: Mersen
• Voltage Rating: 600 VAC/DC
• Amperage Rating: 30 Amperes
• Fuse Class: Class CC
• Mounting: In-Line
• Connection Type: Crimp
• Material: Polyethylene
• Maximum Operating Temperature: 80°C
• Dimensions (L x W x H): 4.3 in x 1 in x 1 in
• Frequency: 50 Hertz
• Country of Origin: Mexico

Features

• Accommodates 1-1/2" x 13/32" (10 x 38 mm) Class CC fuses
• Quick installation with captive securing nuts or screws
• Three internal O-rings per pole provide water resistance
• Color-coded O-rings (blue for single pole) for easy identification
• Optional cone-shaped insulator boots for watertight seal
• Optional breakaway feature safely disconnects load during pole knockdown
• Fuses remain encapsulated within watertight compartment on load side
• Compatible with a wide range of terminal variations
• High heat and impact resistant insulator
• Environmentally friendly design with no lead solder
