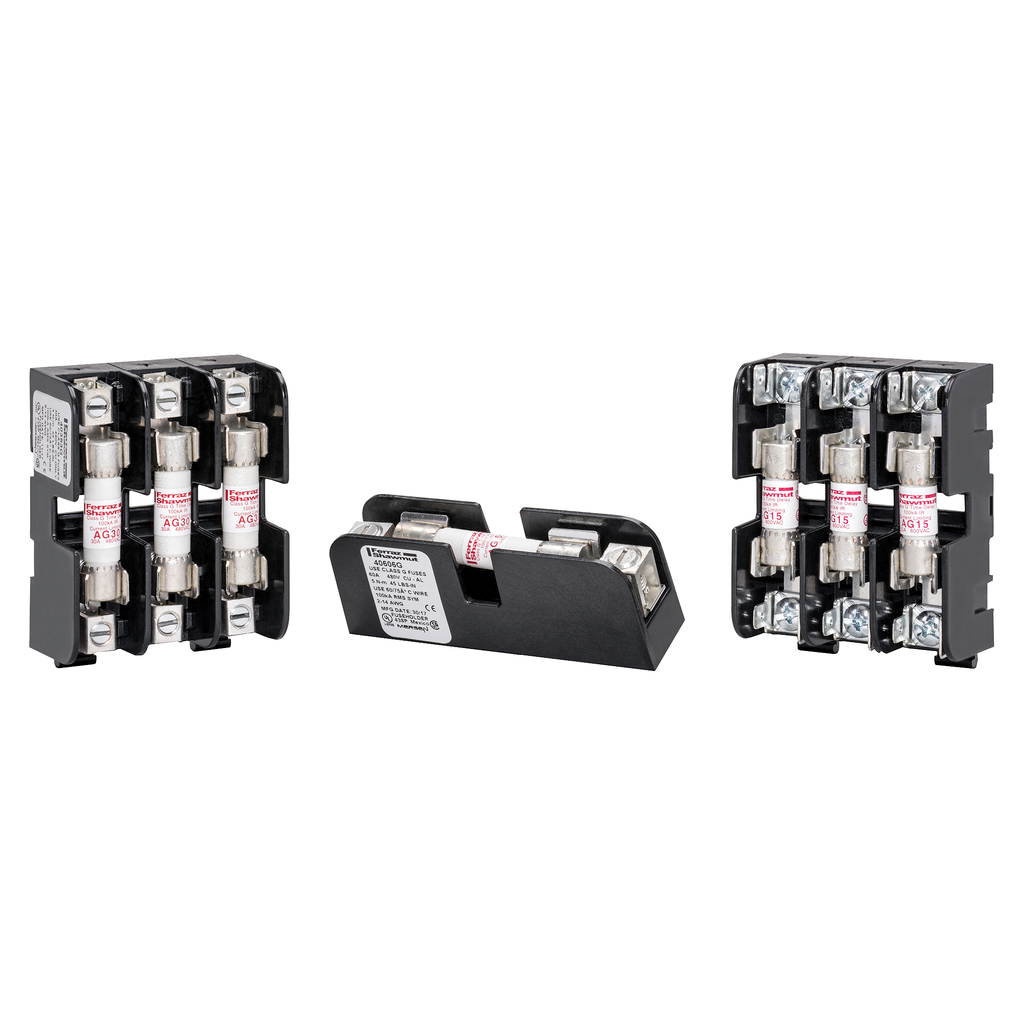

Fuse Bases 480V 60A Class G 1-pole Tin-Plate Aluminum Box with Reinforced Clip

This Mersen Class G fuse base is designed for electrical distribution and switchgear applications requiring reliable fuse protection. It accommodates 15, 20, 30, and 60 ampere Class G fuses, with this model rated for 60 amperes and 480 volts. The fuse base features a tin-plated aluminum box connection with a reinforced clip, suitable for a wide range of stranded or solid copper wire. The insulator is made from glass-filled polycarbonate (GFPC), providing verified dielectric strength exceeding 2500V, ensuring electrical safety and durability in demanding environments. This fuse base supports direct screw mounting and is compatible with multi-pole segmented block assemblies for flexible system design, making it a practical component for electrical distributors and lighting solutions requiring dependable fuse holders.

Specifications

• Amperage: 60 amperes
• Voltage Rating: 480V
• Number of Poles: 1
• Material: Glass Filled Polycarbonate
• Connection: Box with Reinforced Clip
• Mounting: Direct Screw Mount
• Frequency: 50 hertz
• Max. Operating Temperature: 80 degrees Celsius
• Dimensions (L x W x H): 3.78 in x 0.86 in x 1.4 in
• Manufacturer: Mersen
• Country of Origin: Mexico
• Manufacturer Part #: 40606G

Features

• Accommodates all 15, 20, 30, and 60 ampere Class G fuses
• Glass-filled polycarbonate insulators with dielectric strength over 2500V
• High conductivity tin-plated copper alloy fuse clips
• Unique adder block design enables multi-pole segmented blocks
• Spring reinforcing standard for 60A clips
