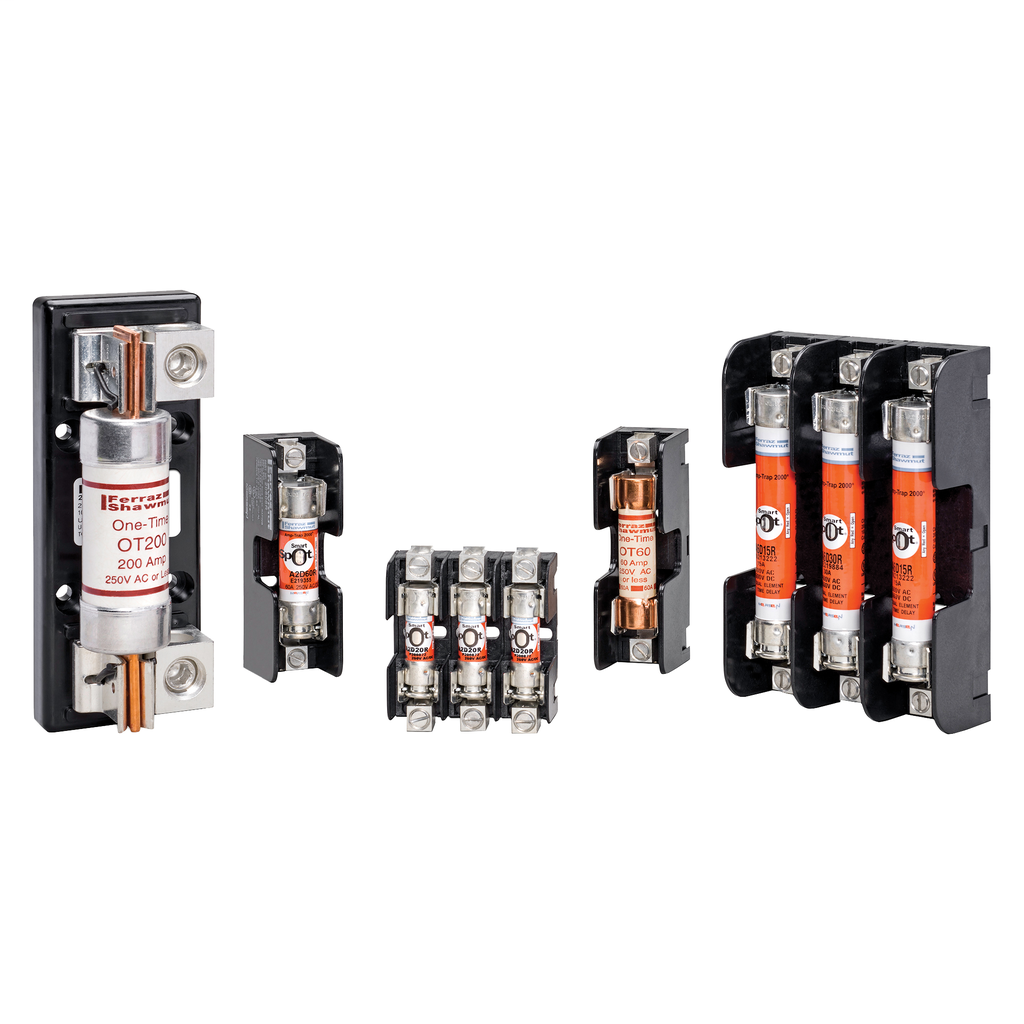

Fuse Bases 250V 30A Class R 2-pole Tin-Plate CU Pressure Plate with Reinforced Clip

This fuse base is designed for use with Class R 250V power fuses, suitable for electrical distributors and switchgear suppliers requiring reliable fuse block solutions. It accommodates 2-pole configurations with a pressure plate connection featuring a reinforced clip, ensuring secure and stable wire termination. Constructed with glass-filled polycarbonate insulators, it supports stranded or solid copper or aluminum wire, offering dielectric strength exceeding 2500V. Ideal for lighting solutions and wire and cable applications where robust fuse protection is necessary.

Specifications

• Class: Class R
• Voltage Rating: 250 volts AC/DC
• Amperage Rating: 30 amperes
• Number of Poles: 2-pole
• Material: Glass Filled Polycarbonate
• Connection Type: Pressure Plate with Reinforced Clip
• Mounting: Direct Screw Mount
• Frequency: 50 hertz
• Dimensions (L x W x H): 3 in x 2.03 in x 1.38 in
• Maximum Operating Temperature: 80 degrees Celsius
• Product Weight: 0.2400 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: 20327R

Features

• Accommodates Class H, K, and R 250 and 600V power fuses
• Choice of screw, pressure plate, box, and stud connectors for versatile wiring options
• Insulators molded from glass-filled polycarbonate with verified dielectric strength over 2500V
• High conductivity tin-plated copper fuse clips with spring reinforcement for 30A and above
• Unique adder block design for forming multipole segmented fuse blocks

Downloads & Links

• Spec Sheet
• Spec Sheet (French)
