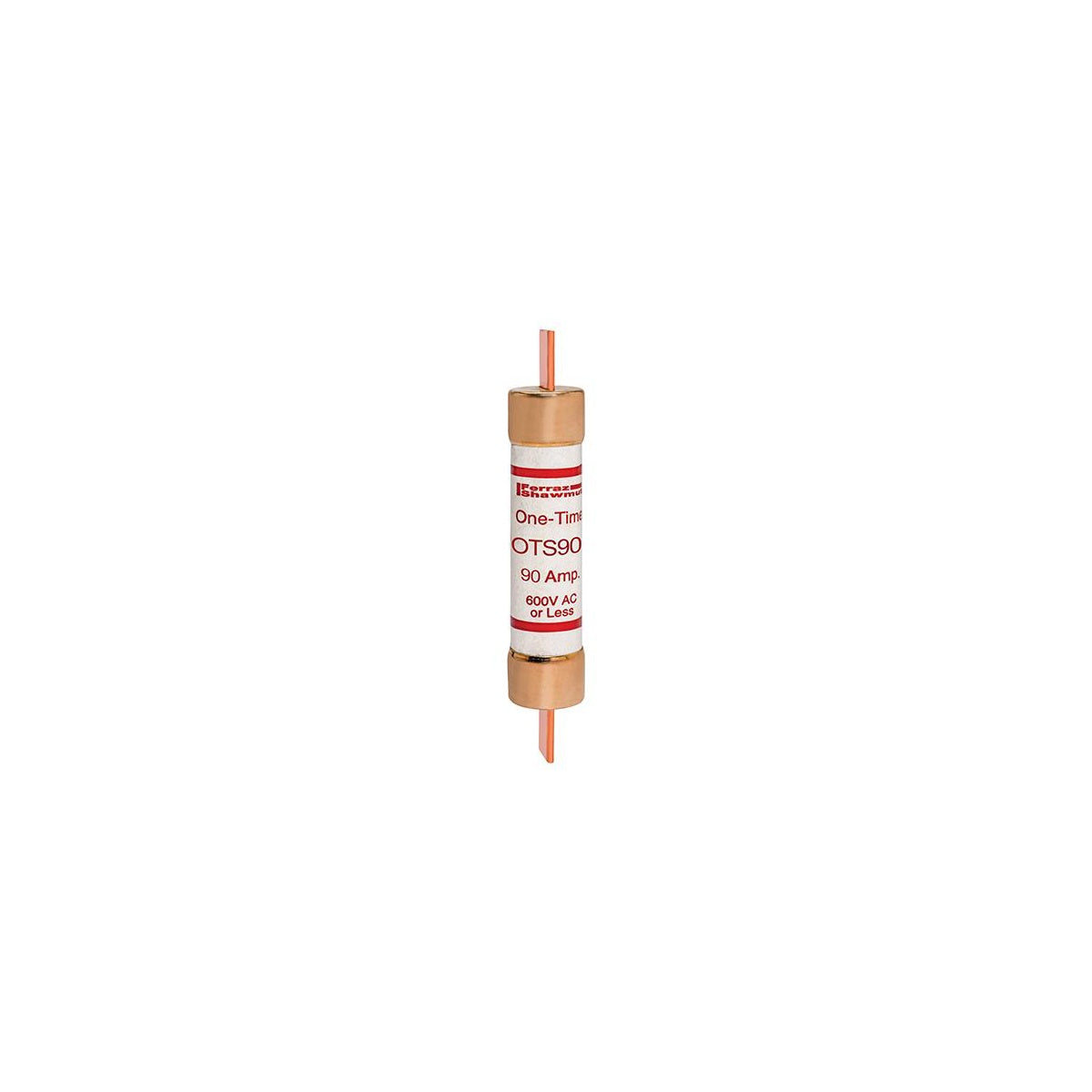

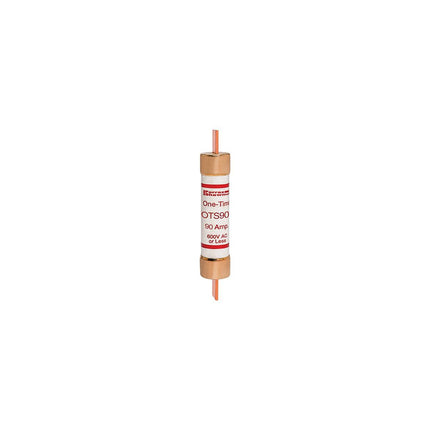

Fuse Amp-Trap® 600V 90A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 90A Fast-Acting Class K5 OTS Series is a general purpose fuse designed for electrical distributors and lighting solutions requiring reliable protection of feeders and branch circuits. It is suitable for residential and small commercial installations, providing low cost protection for resistive heating and other non-motor loads. This fuse safely interrupts short circuit currents up to 50,000 amperes and features a fast-acting design for enhanced circuit protection.

Specifications

• Amperage Rating: 90 A
• Voltage Rating: 600 V AC / 300 V DC
• Interrupt Rating: 50 kA
• Fuse Class: Class K5
• Dimensions (L x W x H): 7.88 in x 1.31 in x 1.31 in
• Diameter: 1.31 inches
• Weight: 0.5290 lbs
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube
• Manufacturer Part #: OTS90

Features

• One-time use, fast-acting fuse for reliable overload protection
• Low cost option for protecting non-inductive circuits
• Easy-to-read imprint label for quick identification and replacement
• Not a rejection fuse; replacement fuses must meet or exceed original interrupting ratings
• UL Listed to Standard 248-9 and CSA Certified to Standard C22.2 No. 248.9
• Self-certified for DC per UL248
