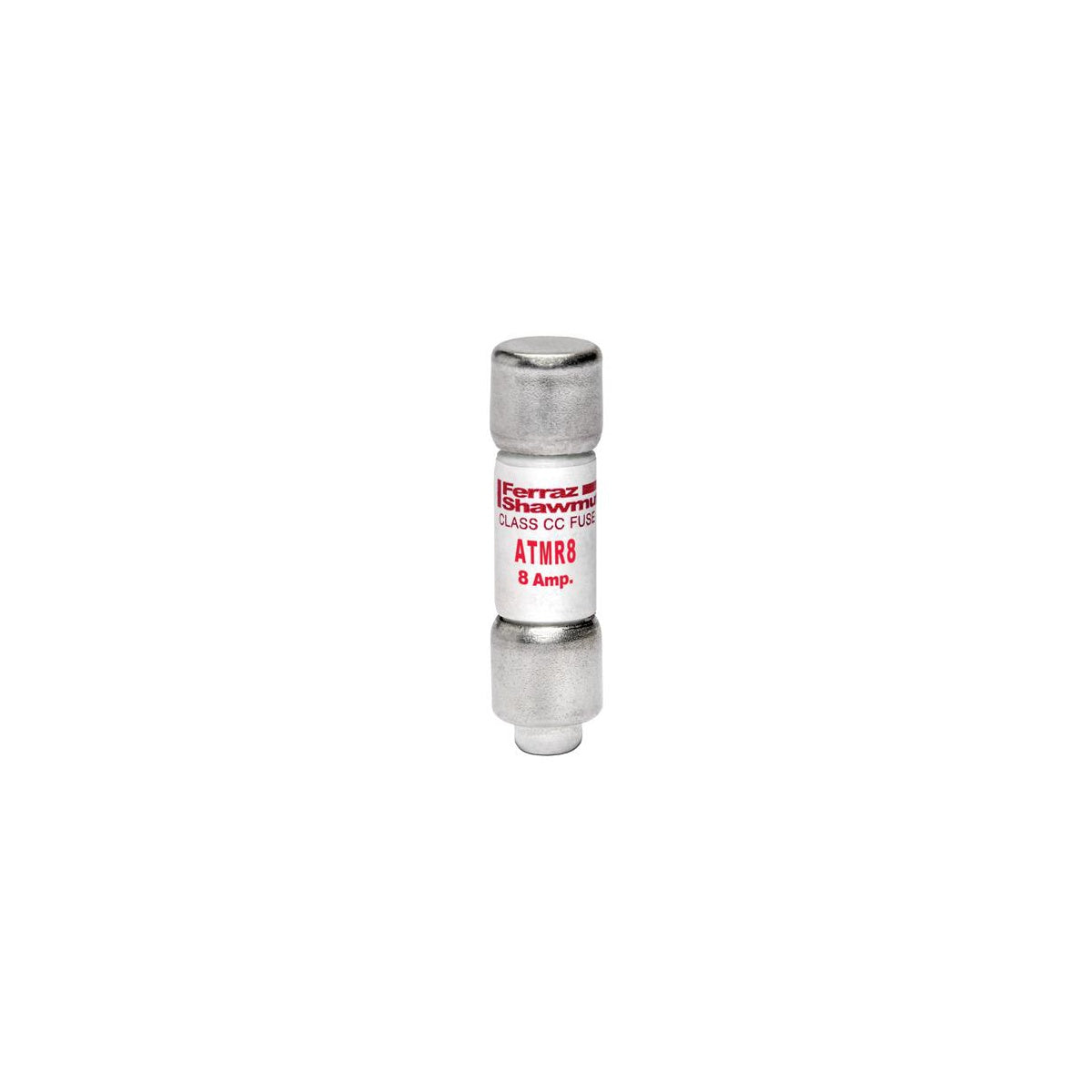

Fuse Amp-Trap® 600V 8A Fast-Acting Class CC ATMR Series
SKU: #195803
Part: #ATMR8
UPC: 782001904517
Fuse Amp-Trap® 600V 8A Fast-Acting Class CC ATMR Series
SKU: #195803
Part: #ATMR8
UPC: 782001904517
Description
Fuse Amp-Trap® 600V 8A Fast-Acting Class CC ATMR Series
The Fuse Amp-Trap® ATMR Series is a fast-acting, Class CC fuse designed for branch circuit protection in electrical distribution systems. Ideal for control circuits, lighting solutions, general loads, and branch circuit protection, this fuse provides current-limiting protection with a compact size suitable for various industrial and commercial applications. As a reliable component for wire and cable protection, it is commonly supplied by switchgear suppliers and electrical distributors for economical and effective circuit safeguarding.
Specifications
- Voltage Rating: 600 VAC / DC
- Amperage Rating: 8 A
- Interrupt Rating: 200 kA
- Fuse Class: Class CC
- Frequency: 50 hertz
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lb
- Manufacturer: Mersen
Features
- Fast-acting fuse providing current-limiting protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design prevents substitution by lesser rated fuses
- Economical protection for control circuits and control circuit transformers
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- Suitable for use where short circuit currents exceed 10,000 amperes
