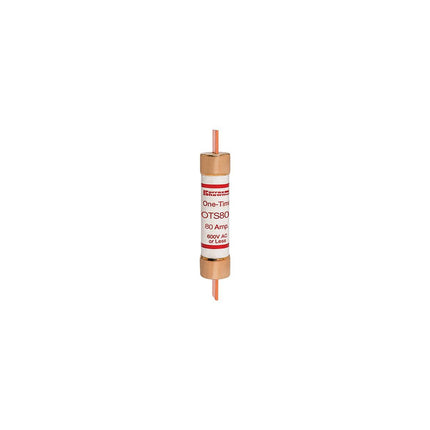

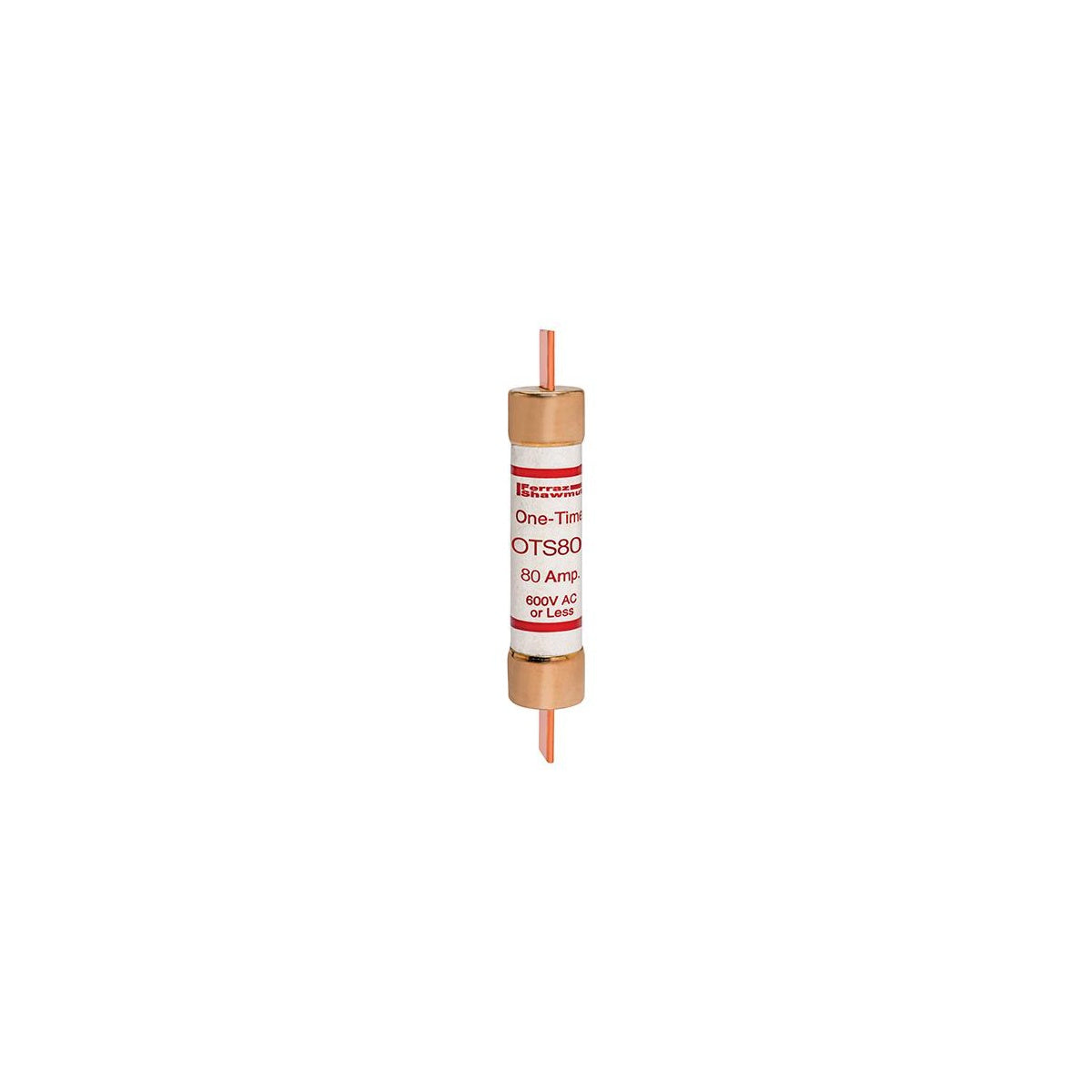

Fuse Amp-Trap® 600V 80A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 80A Fast-Acting Class K5 OTS Series is designed for low cost protection of feeder and branch circuits serving lighting, resistive heating, and other non-motor loads. This fuse safely interrupts short circuit currents up to 50,000 amperes, making it suitable for residential and small commercial electrical installations. It is a reliable component for electrical distributors and switchgear suppliers requiring durable wire and cable protection solutions.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: OTS80
• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 80 A
• Interrupting Rating: 50 kA
• Fuse Class: Class K5
• Dimensions: Length 7.88 in, Diameter 1.31 in
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Product Weight: 0.5290 lbs
• Application: Feeders, Branch circuits, Resistive heating, Residential and small commercial installations

Features

• One-time general purpose fuse for low cost circuit protection
• Fast-acting characteristics suitable for non-inductive loads
• Not a rejection fuse; replacement fuses must match or exceed interrupting ratings
• Easy to read imprint label for quick recognition and replacement
• UL Listed to Standard 248-9, CSA Certified to Standard C22.2 No. 248.9
• Self-certified for DC per UL248
