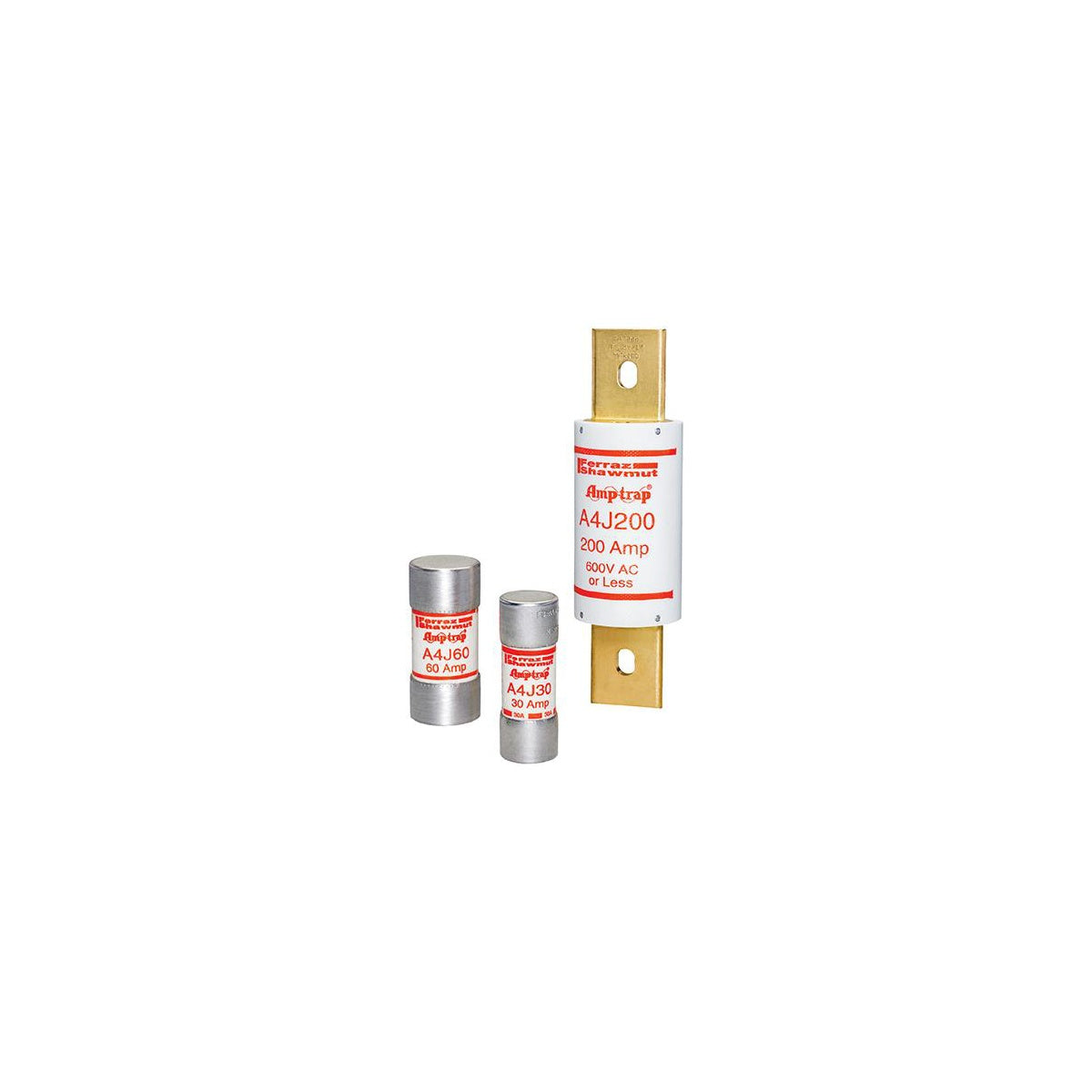

Fuse Amp-Trap® 600V 80A Fast-Acting Class J A4J Series

The Fuse Amp-Trap® 600V 80A Fast-Acting Class J A4J Series by Mersen offers excellent current-limiting protection for a broad range of electrical applications. Designed to meet the needs of electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers, this fuse is suitable for use in capacitors, load centers, panelboards, switchboards, bus ducts, feeder circuits, circuit breakers, and lighting, heating, and general loads.

Specifications

• Amperage Rating: 80 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA AC
• Fuse Class: Class J
• Dimensions (L x W x H): 4.63 in x 1.06 in x 1.06 in
• Diameter: 1.06 inches
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: GMG
• Product Weight: 0.2400 lb
• Manufacturer Part Number: A4J80

Features

• Fast-acting fuse with very current-limiting characteristics to reduce peak let-thru current
• Unique dimensions prevent substitution with fuses of lower voltage ratings or interrupting capabilities
• Fiberglass body ensures dimensional stability in harsh industrial environments
• Easy-to-read imprint label for quick identification and replacement
• UL listed to standard 248-8, CSA certified to C22.2 no. 248.8, DC listed to UL 248, and IEC 269-2-1 compliant
