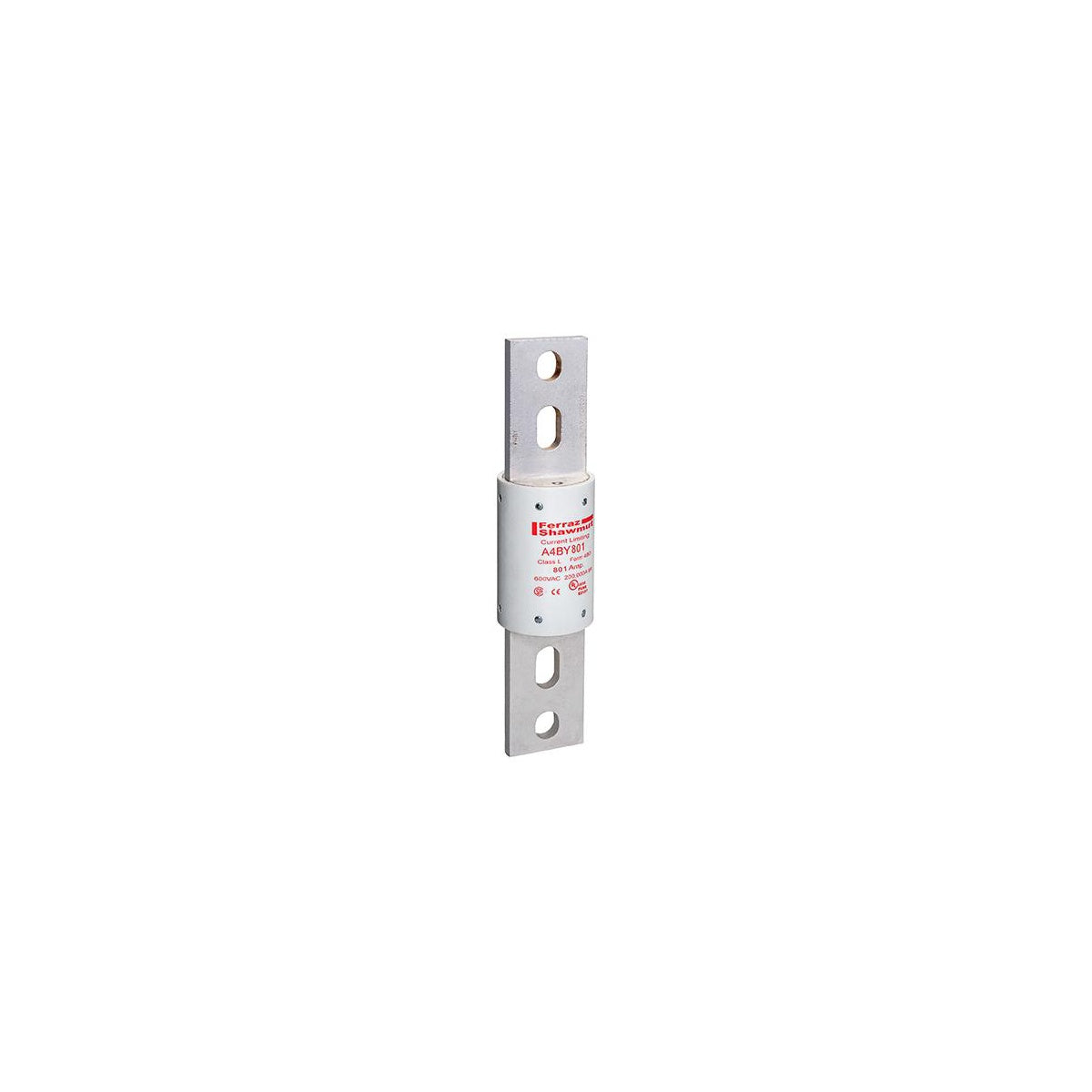

Fuse Amp-Trap® 600V 801A Time-Delay Class L A4BY Series
SKU: #194889
Part: #A4BY801
UPC: 782001939120

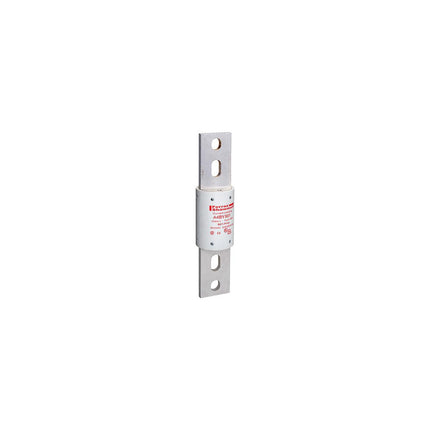

Fuse Amp-Trap® 600V 801A Time-Delay Class L A4BY Series
SKU: #194889
Part: #A4BY801
UPC: 782001939120
Description
Fuse Amp-Trap® 600V 801A Time-Delay Class L A4BY Series
The Fuse Amp-Trap® A4BY Series is a Class L, 600V time-delay fuse designed for protection of mains feeders, circuit breakers, load centers, panelboards, switchboards, and metering centers. This fuse is rated for continuous current up to 801 amperes and features a 4-second minimum time delay at 500% rating, allowing it to withstand normal current surges and coordinate effectively with ground fault relays. It is suitable for electrical distributors and switchgear suppliers requiring reliable current-limiting protection in industrial and commercial electrical installations.
Specifications
- Amperage Rating: 801 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Class: Class L
- Dimensions: Length 10.75 in, Width 2.5 in, Height 2.5 in
- Diameter: 2.5 inches
- Mounting Type: Bolted
- Connection Type: Blade
- Insulation Material: GMG
- Product Weight: 4.28 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: A4BY801
Features
- 100% rated for continuous current up to ampere rating
- 4-second minimum time delay at 500% rating for surge tolerance and relay coordination
- Current-limiting design enhances protection of service entrance equipment and feeder circuits
- Glass melamine body with plated terminals for durability in harsh environments
- Unique dimensions prevent interchangeability with other fuse classes
- Blade stamped catalog numbers for permanent identification
- UL and CSA listed for safety and performance compliance
