Fuse Amp-Trap® 600V 800A Fast-Acting Class T A6T Series
SKU: #379306
Part: #A6T800
UPC: 782001891589
Fuse Amp-Trap® 600V 800A Fast-Acting Class T A6T Series
SKU: #379306
Part: #A6T800
UPC: 782001891589
Description

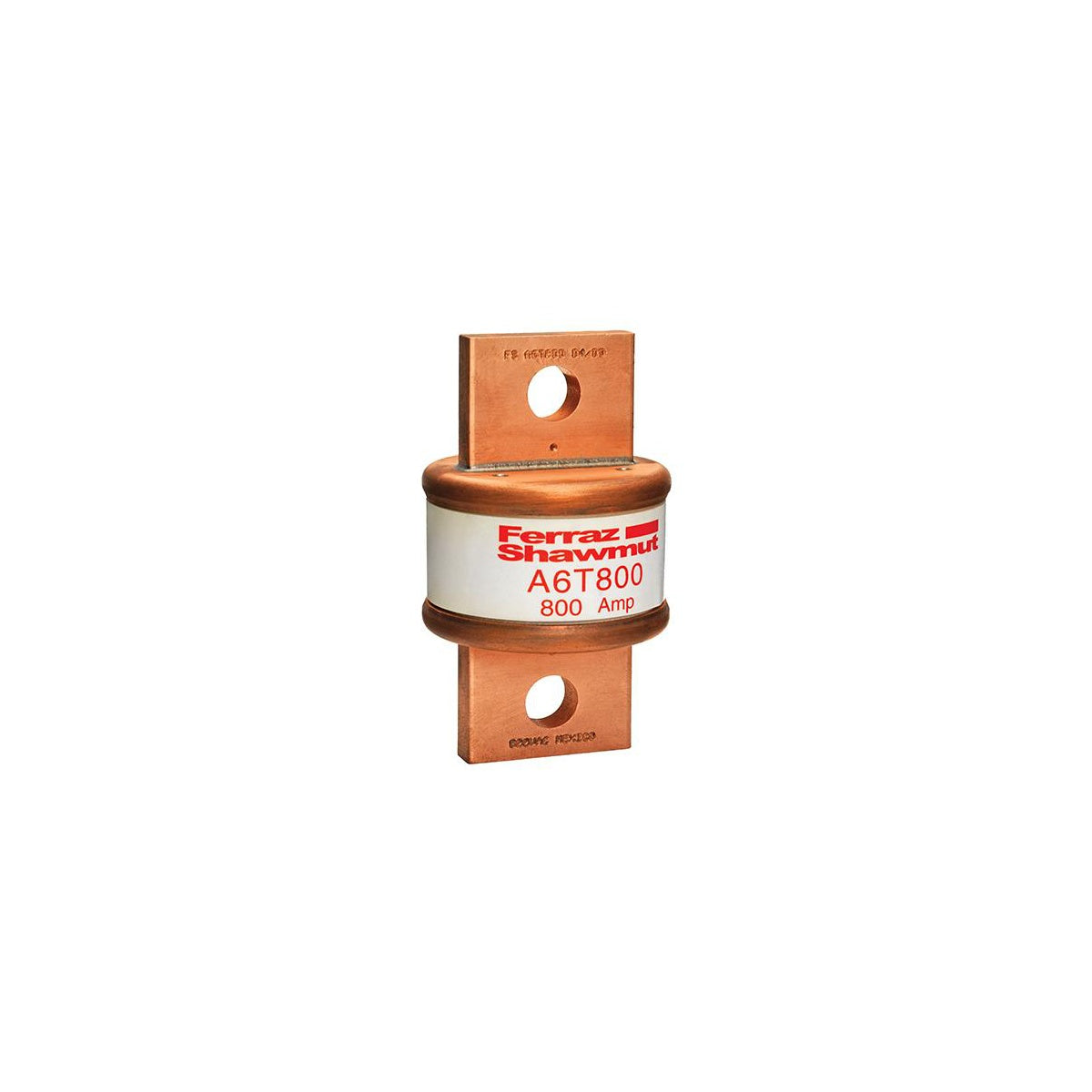

Fuse Amp-Trap® 600V 800A Fast-Acting Class T A6T Series Fuse
This Fuse Amp-Trap® Class T fast-acting fuse is designed for electrical distributors and switchgear suppliers requiring high current-limitation in a compact size. It is suitable for use in load centers, panelboards, switchboards, circuit breakers, and metering centers, providing reliable protection and coordination within electrical systems.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: A6T800
- Amperage Rating: 800 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class T
- Connection: Blade
- Mounting Type: Bolted
- Dimensions (L x W x H): 4.33 in x 2.5 in x 2.5 in
- Product Weight: 1.3 lb
- Insulation Material: GMG (Glass Melamine)
Features
- Fast-acting fuse with high current-limitation
- Compact physical size prevents substitution with lower rated fuses
- Glass melamine body for superior dimensional stability
- Permanent identification with catalog numbers stamped on blades
