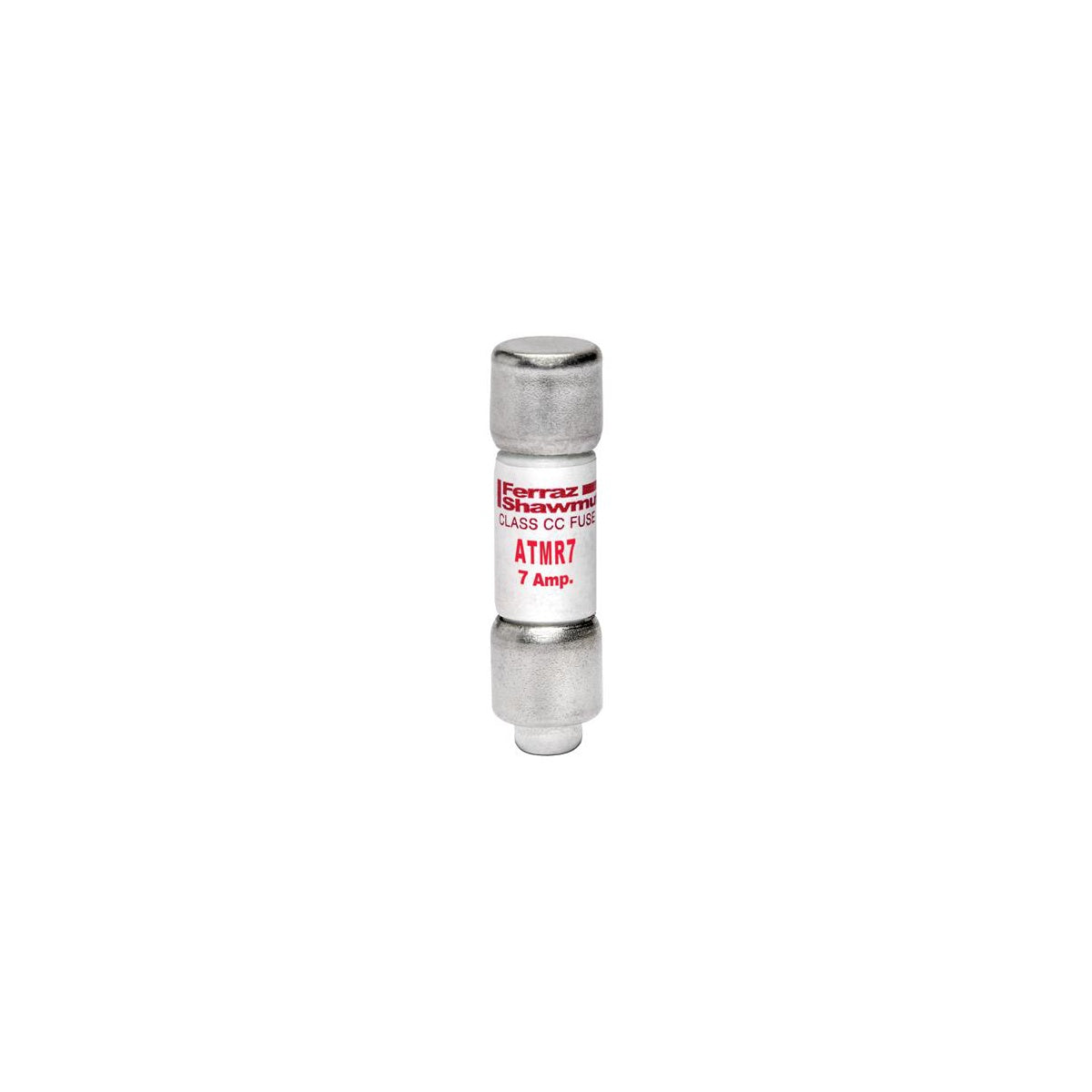

Fuse Amp-Trap® 600V 7A Fast-Acting Class CC ATMR Series
SKU: #195794
Part: #ATMR7
UPC: 782001903916
Fuse Amp-Trap® 600V 7A Fast-Acting Class CC ATMR Series
SKU: #195794
Part: #ATMR7
UPC: 782001903916
Description
Fuse Amp-Trap® 600V 7A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fast-acting fuse is designed for economical branch circuit protection in control circuits, lighting, general loads, and branch circuit applications. As a product from a leading electrical distributor and switchgear supplier, this fuse offers current-limiting protection for general circuits and control circuit transformers where short circuit currents exceed 10,000 amperes. Its compact size and rejection-style design prevent substitution with lower-rated fuses, ensuring reliable and safe operation in electrical systems.
Specifications
- Voltage Rating: 600 VAC/DC
- Amperage Rating: 7 A
- Interrupt Rating: 200 kA AC
- Frequency: 50 hertz
- Dimensions (L x W x H): 1.5 in x 0.41 in x 0.41 in
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Fuse Class: Class CC
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer Part Number: ATMR7
- Manufacturer: Mersen
Features
- Fast-acting and very current-limiting for enhanced circuit protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design prevents replacement errors with recommended fuse blocks
- Versatile for use in individual components and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC listed to UL Standard 248
