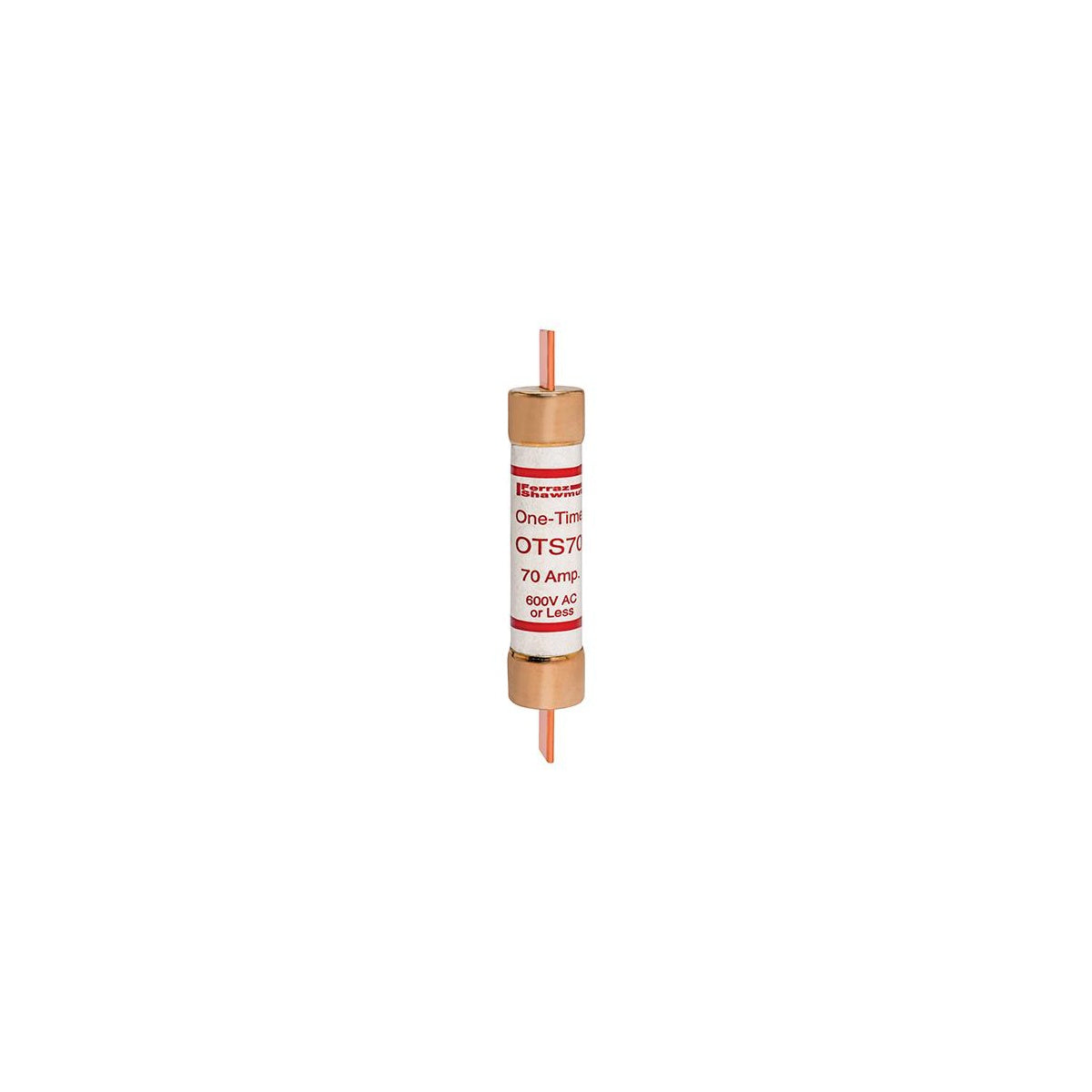

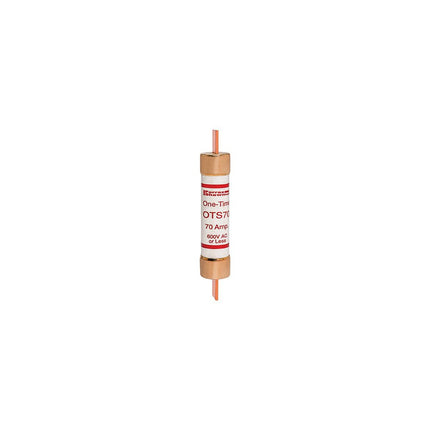

Fuse Amp-Trap® 600V 70A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 70A Fast-Acting Class K5 OTS Series fuse provides reliable, low-cost protection for feeder and branch circuits in lighting, heating, and other non-motor load applications. Designed for use in residential and small commercial installations, this fuse safely interrupts short circuit currents up to 50,000 amperes. Suitable for electrical distributors and switchgear suppliers, it features a fast-acting design for effective circuit protection.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: OTS70
• Fuse Class: Class K5
• Voltage Rating: 600 VAC
• Amperage Rating: 70 A
• Interrupting Rating: 50 kA
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Dimensions (L × W × H): 7.88 in × 1.31 in × 1.31 in
• Weight: 0.5290 lb

Features

• One-time general purpose fuse for low cost circuit protection
• Fast-acting design suitable for resistive heating and lighting circuits
• Safe interruption of short circuit currents up to 50,000 amperes
• Clip mounting with blade connection for easy installation
• PolyTube insulation for enhanced durability
• Not a rejection fuse; replacement fuses must meet or exceed original interrupting ratings
