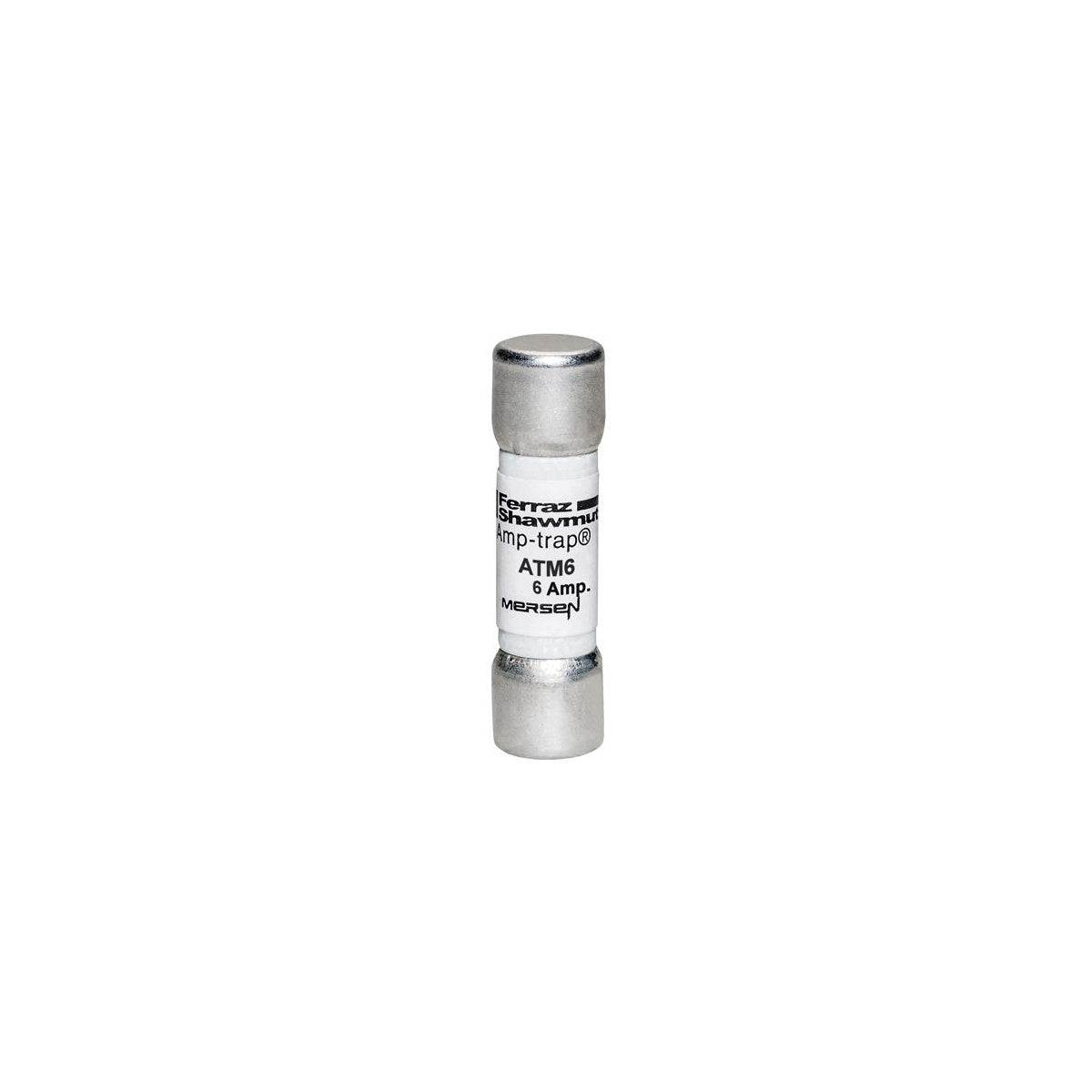

Fuse Amp-Trap® 600V 6A Fast-Acting Midget ATM Series
SKU: #375993
Part: #ATM6
UPC: 782001900762
Fuse Amp-Trap® 600V 6A Fast-Acting Midget ATM Series
SKU: #375993
Part: #ATM6
UPC: 782001900762
Description
Fuse Amp-Trap® 600V 6A Fast-Acting Midget ATM Series – Electrical Fuse
The Fuse Amp-Trap® 600V 6A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fuse is suitable for applications requiring reliable protection in electrical distribution and lighting solutions. It provides fast-acting response to overcurrent conditions, making it ideal for use by electrical distributors and switchgear suppliers in wire and cable protection systems.
Specifications
- Amperage Rating: 6 A
- Voltage Rating: 600 V AC/DC
- Interrupt Rating: 100 kA
- Class: Midget
- Fuse Class: Midget
- Dimensions: 1.5 in (Length) x 0.41 in (Diameter/Width/Height)
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer Part #: ATM6
- Manufacturer: Mersen
Features
- Fast-acting fuse for quick circuit protection
- Rated for both AC and DC applications up to 600 volts
- High interrupting rating of 100kA for enhanced safety
- Compact midget size suitable for demanding electrical environments
- Designed for capacitor protection and circuits with high inrush currents
- Clip mounting for easy installation
