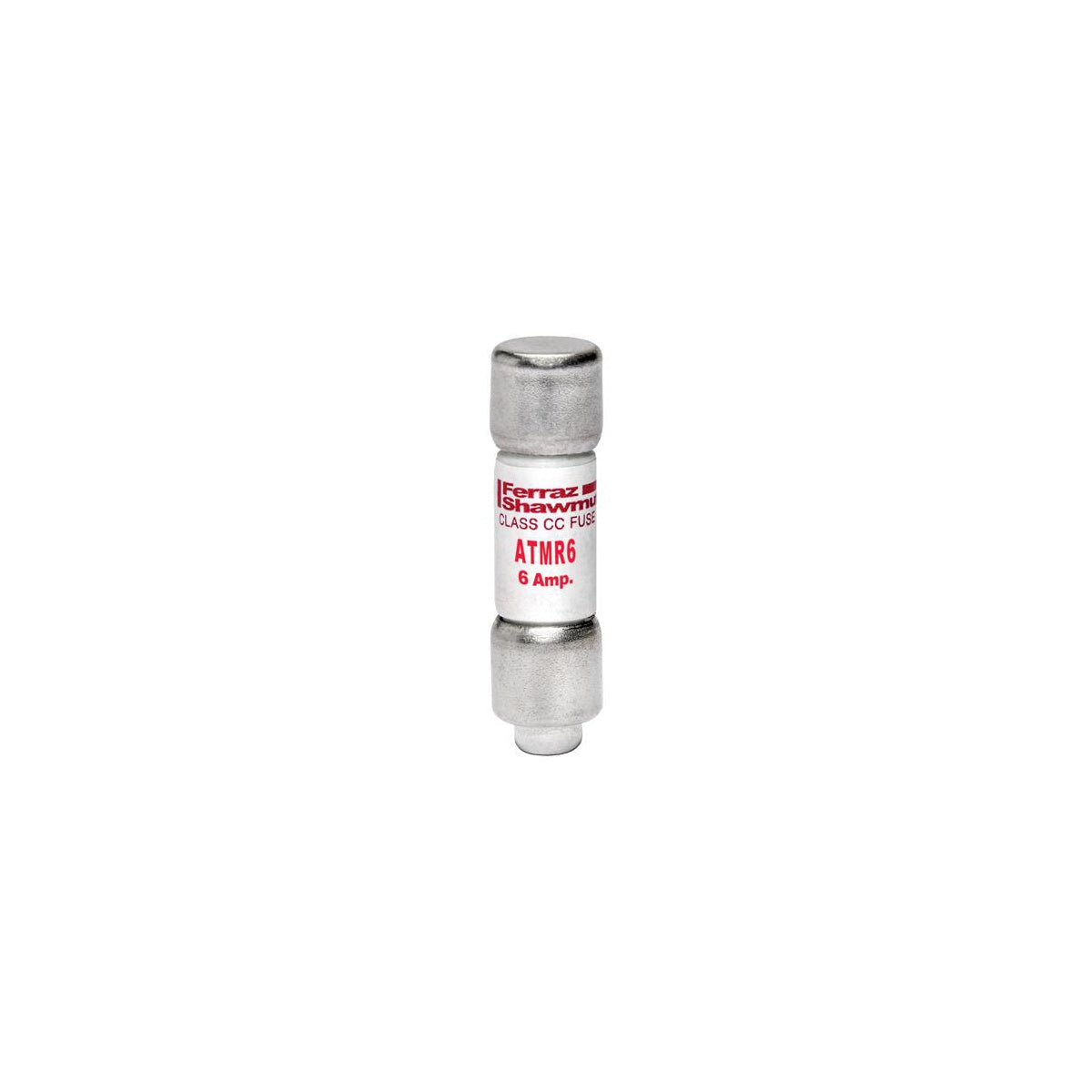

Fuse Amp-Trap® 600V 6A Fast-Acting Class CC ATMR Series

The Amp-Trap® ATMR fuse is a fast-acting, current-limiting fuse designed for branch circuit protection in control circuits, lighting, and general loads. As a Class CC fuse rated for 600V AC/DC, it is suitable for electrical distributors and switchgear suppliers requiring reliable protection of control circuit transformers and general circuits where short circuit currents exceed 10,000 amperes. Its rejection-style design prevents substitution with lower-rated fuses, ensuring safety and compliance in electrical installations.

Specifications

• Voltage Rating: 600 VAC/DC
• Amperage Rating: 6 A
• Interrupt Rating: 200 kA AC, 100 kA DC
• Fuse Class: Class CC
• Frequency: 50 hertz
• Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer: Mersen
• Manufacturer Part #: ATMR6

Features

• Fast-acting for quick circuit interruption
• Very current-limiting to reduce damage during faults
• Rejection-style design prevents incorrect fuse replacement
• Economical protection for control circuits and transformers
• Smallest dimension 600V fuse suitable for branch circuit protection
• Versatile for individual component and branch circuit protection
