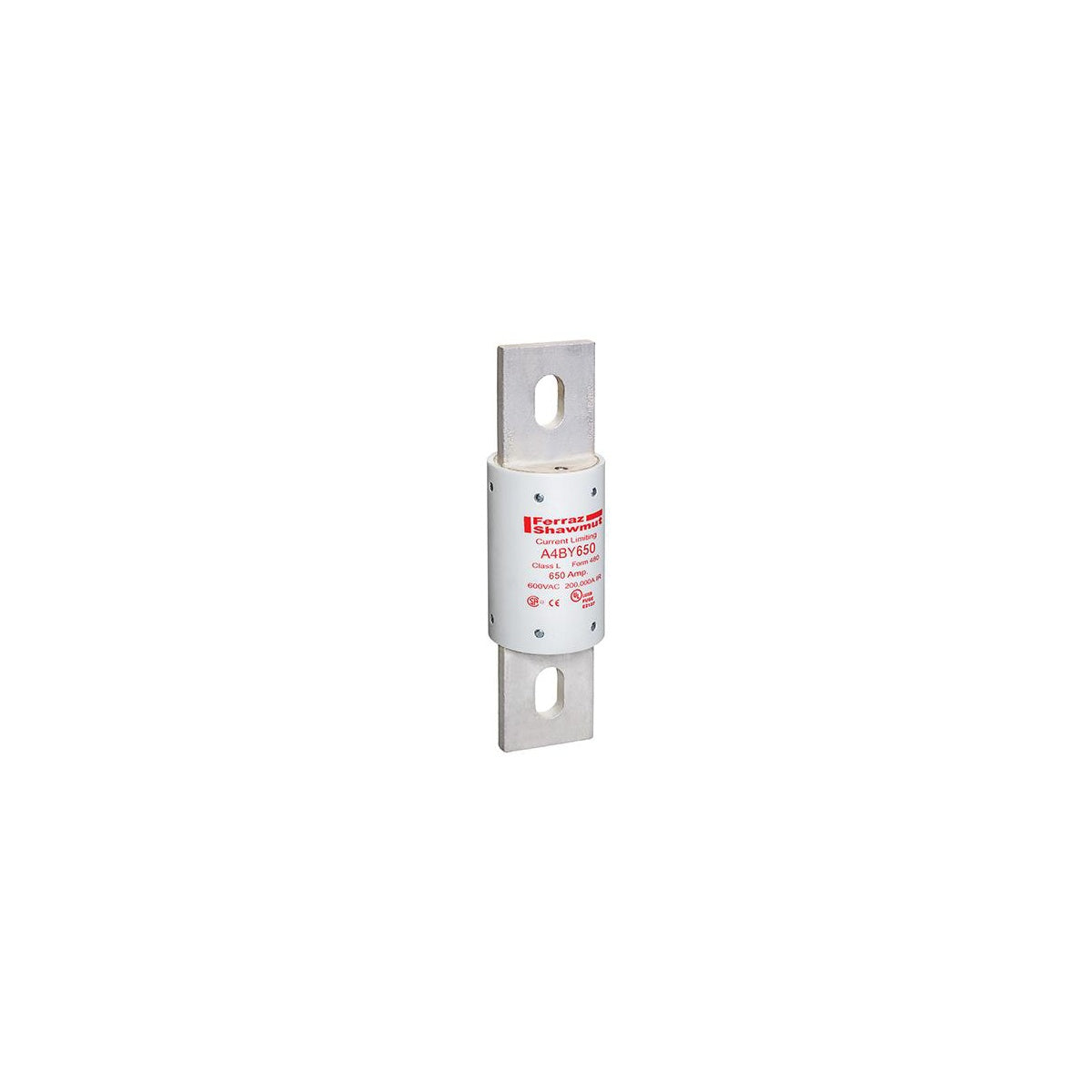

Fuse Amp-Trap® 600V 650A Time-Delay Class L A4BY Series
SKU: #194852
Part: #A4BY650
UPC: 782001939083
Fuse Amp-Trap® 600V 650A Time-Delay Class L A4BY Series
SKU: #194852
Part: #A4BY650
UPC: 782001939083
Description
Fuse Amp-Trap® 600V 650A Time-Delay Class L A4BY Series
The Fuse Amp-Trap® A4BY Series is a Class L, 600V time-delay fuse designed for electrical distributors and switchgear suppliers to protect service entrance equipment, feeder circuits, circuit breakers, load centers, panelboards, switchboards, and metering centers. This fuse provides reliable current limiting and coordination with ground fault relays, suitable for continuous current applications up to its ampere rating.
Specifications
- Amperage Rating: 650 A
- Voltage Rating: 600 VAC
- Interrupt Rating: 200 kA
- Fuse Class: Class L
- Dimensions (L x W x H): 8.63 in x 2 in x 2 in
- Mounting Type: Bolted
- Connection: Blade
- Insulation Material: GMG
- Product Weight: 3.64 lbs
- Manufacturer Part #: A4BY650
Features
- 100% rated device allowing continuous current up to ampere rating
- 4-second minimum time delay at 500% rating for normal current surges
- Current-limiting design to protect electrical systems
- Unique dimensions prevent replacement by other fuse classes
- Blade-stamped catalog numbers for permanent identification
- Glass melamine body and plated terminals for superior reliability in harsh environments
- UL/CSA listed and self-certified for DC applications
