Fuse Amp-Trap® 600V 60A Fast-Acting Class T A6T Series
SKU: #195322
Part: #A6T60
UPC: 782001891114
Fuse Amp-Trap® 600V 60A Fast-Acting Class T A6T Series
SKU: #195322
Part: #A6T60
UPC: 782001891114
Description

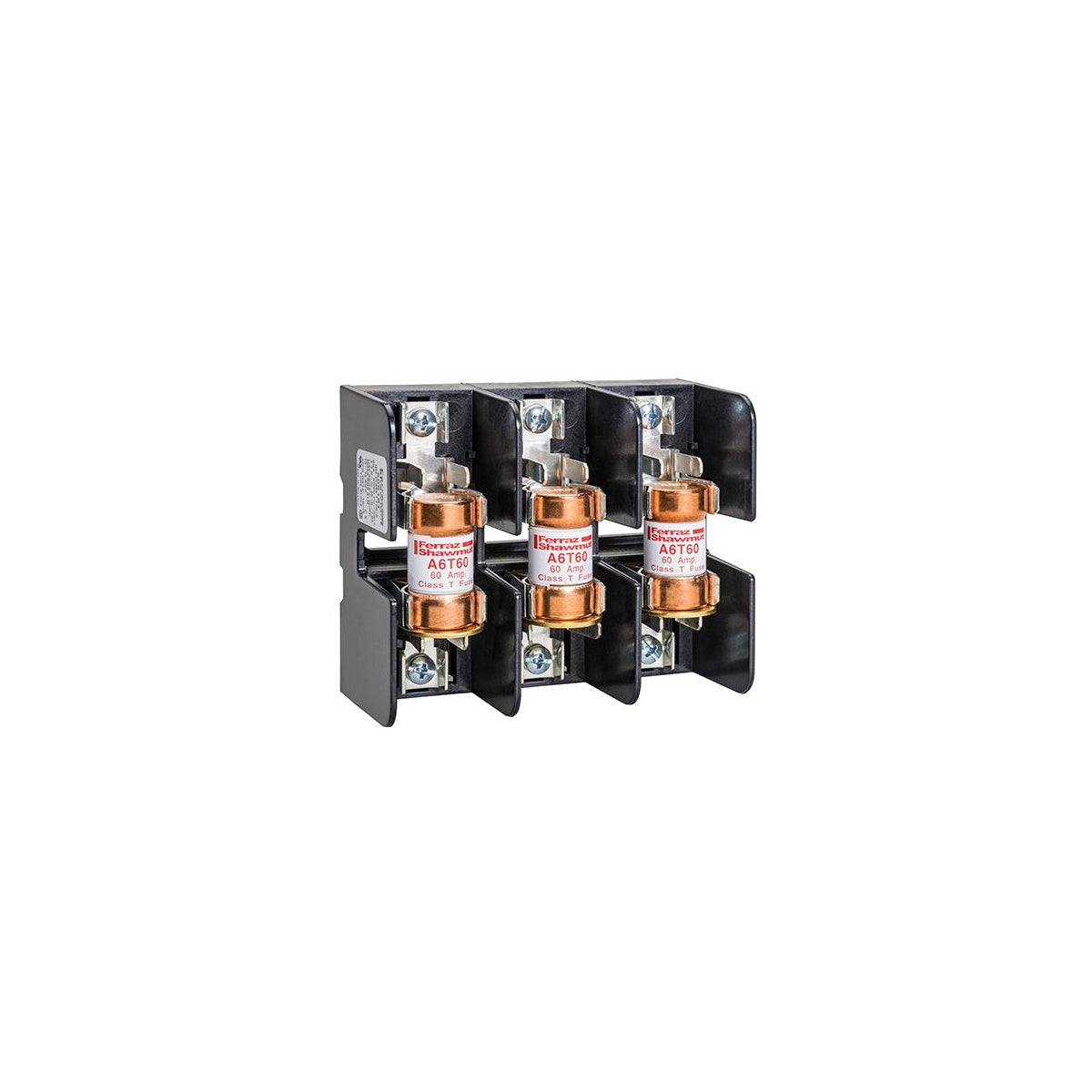

Fuse Amp-Trap® 600V 60A Fast-Acting Class T A6T Series
The Fuse Amp-Trap® 600V 60A Fast-Acting Class T A6T Series is designed for electrical distributors and switchgear suppliers requiring reliable protection in load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse combines high current-limitation with a compact size, ensuring safety and performance in demanding electrical applications.
Specifications
- Amperage Rating: 60 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class T
- Dimensions (L x W x H): 1.57 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Product Weight: 0.0830 lbs
- Insulation Material: GMG (Glass Melamine)
- Connection Type: Ferrule
- Mounting Type: Clip
- Manufacturer: Mersen
- Manufacturer Part #: A6T60
Features
- Fast-acting fuse for rapid response to overcurrent conditions
- High current-limitation to enhance circuit protection
- Compact physical size prevents substitution with lower-rated fuses
- Glass melamine body provides superior dimensional stability
- Catalog numbers permanently stamped on blades for clear identification
