Fuse Amp-Trap® 600V 60A Fast-Acting Class RK1 A6K Series
SKU: #195268
Part: #A6K60R
UPC: 782001915674
Fuse Amp-Trap® 600V 60A Fast-Acting Class RK1 A6K Series
SKU: #195268
Part: #A6K60R
UPC: 782001915674
Description

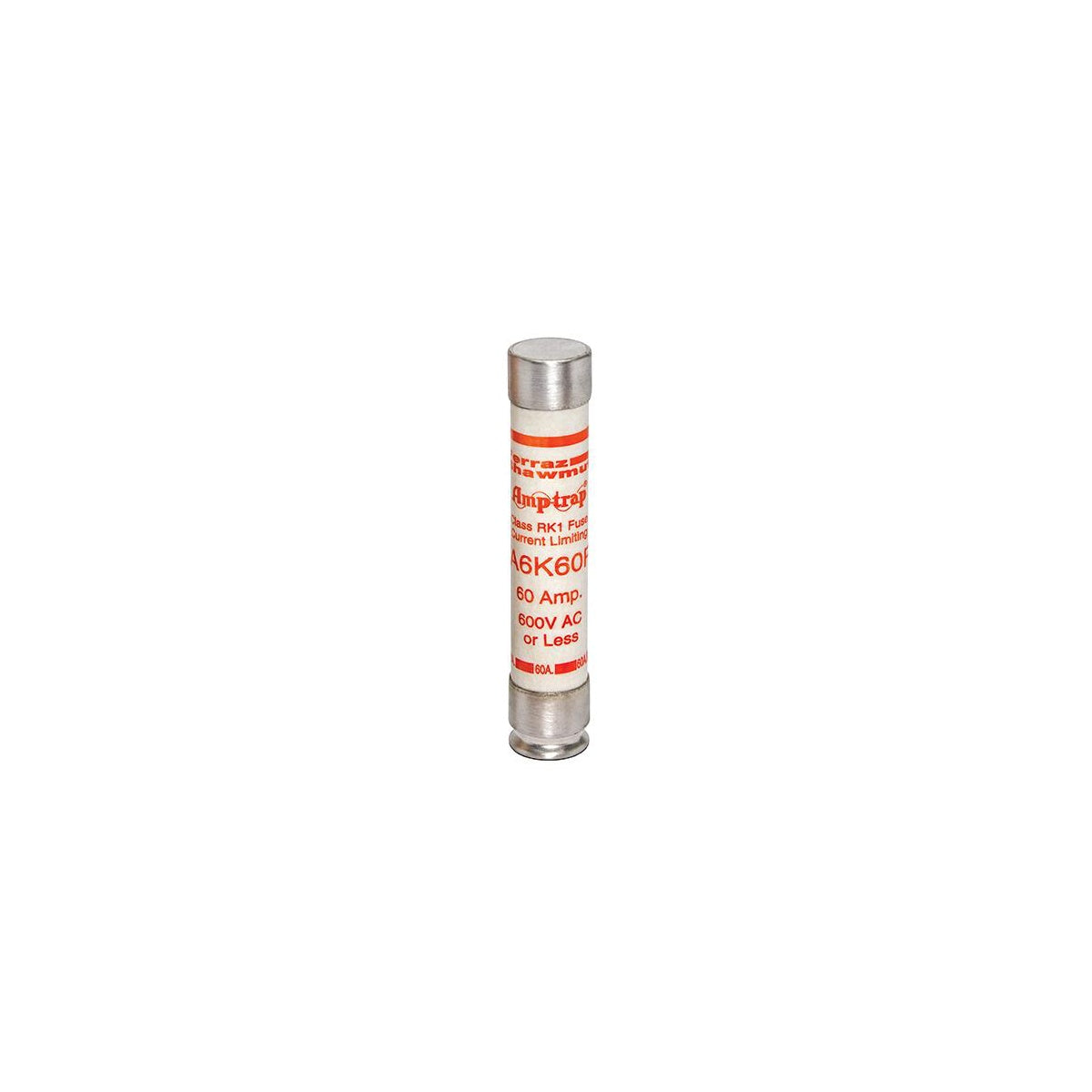

Fuse Amp-Trap® 600V 60A Fast-Acting Class RK1 A6K Series
The Fuse Amp-Trap® A6K Series is a fast-acting, current-limiting fuse designed for protection in electrical distribution systems. It is ideal for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits. This fuse provides excellent protection where high available short-circuit currents exist, making it suitable for branch and feeder circuits as well as backup protection. It is a reliable component for electrical distributors and switchgear suppliers seeking robust lighting solutions and wire and cable protection.
Specifications
- Amperage Rating: 60 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Product Weight: 0.3250 lbs
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Manufacturer: Mersen
- Manufacturer Part #: A6K60R
Features
- Highly current-limiting for low peak let-thru current
- Fast-acting for rapid response to faults
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
