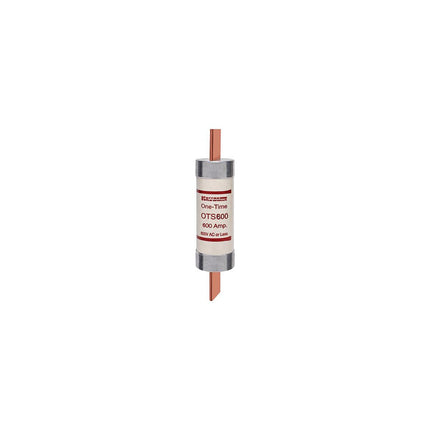

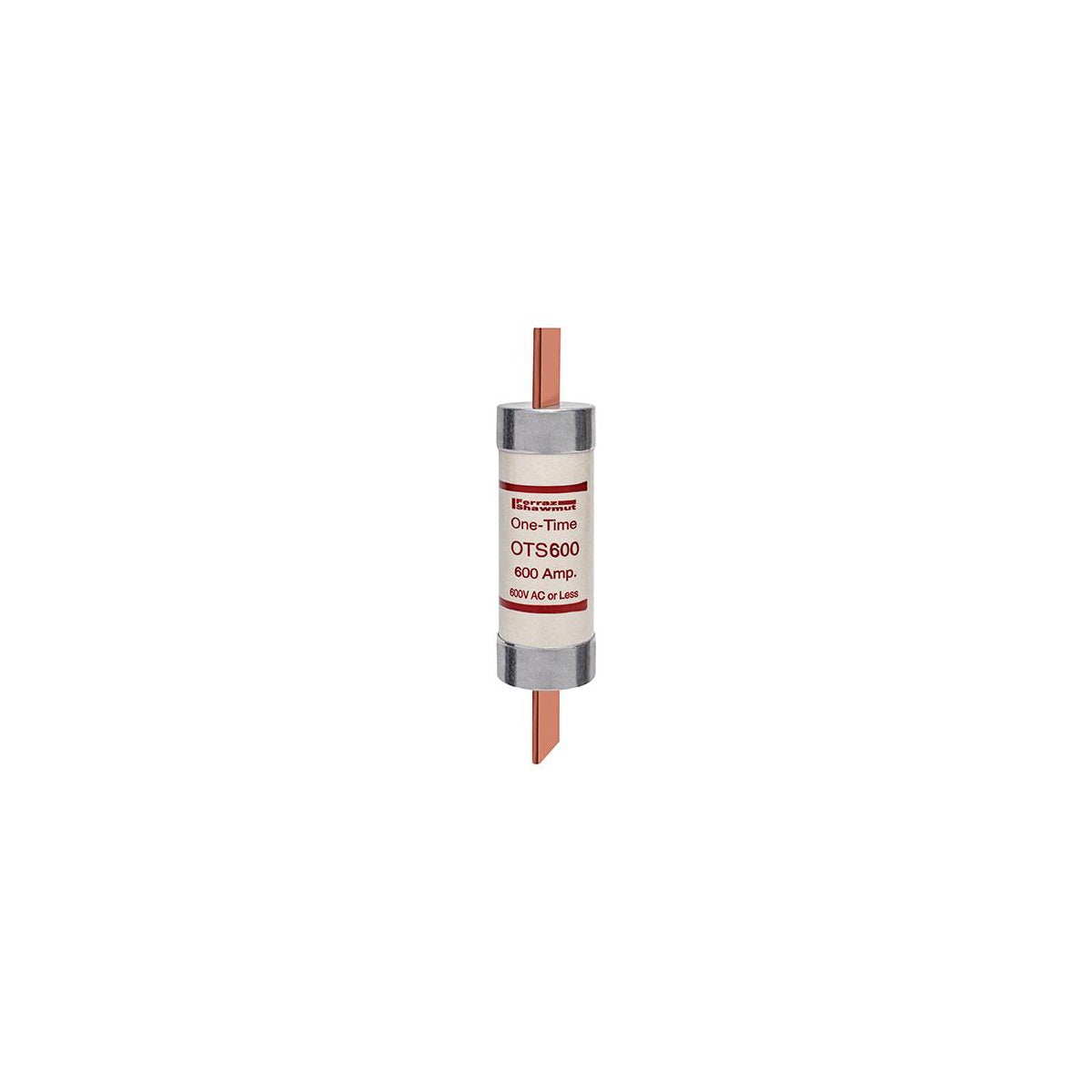

Description
Features
- Easy to read imprint label for quick recognition and replacement
- Low cost for high protection value
Applications
- Feeders
- Branch circuits
- Resistive heating
- Residential and small commercial installations
Approvals & Standards
- UL Listed to Standard 248-9 File E2137
- CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
- Self-certified for DC per UL248
Specifications
- Rated voltage AC UL: 600 V
- Rated voltage DC UL: 300 V
- Frequency: 50/60 Hz
- Ampere Rating: 600 A
- ROHS Compliant: Yes
- Fuse Class: Class K5
- Speed/Characteristic: Fast-Acting
- Mounting: Clip
- AC Max I.R./Breaking Capacity: I1: 50 kA
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Blade
- Body/Insulating Material: PolyTube
Product Dimensions
- Product Weight: 5.1 lb
- Product Diameter: 3.12 in
- Product Length: 13.38 in
Packaging Dimensions
- Sell Pack Quantity: 1 Each
- Sell Pack Weight: 5.36 lb
- Sell Pack Width: 3.25 in
- Sell Pack Length: 13.75 in
- Sell Pack Height: 3.12 in
Downloads
Spec SheetSpec Sheet FR
Drawings
Curves 1
Curves 2
More Information
Manufacturer Catalog Number
OTS600
Weight
5.1
Length
13.38
Width
3.12
Height
3.12
Diameter
3.12 inches
Frequency
50 hertz
Interrupt Rating
50 kA
Mounting Type
Clip
Product Size
13.38 x 3.12 in
Terminal Type
Blade
Type
Class K5
