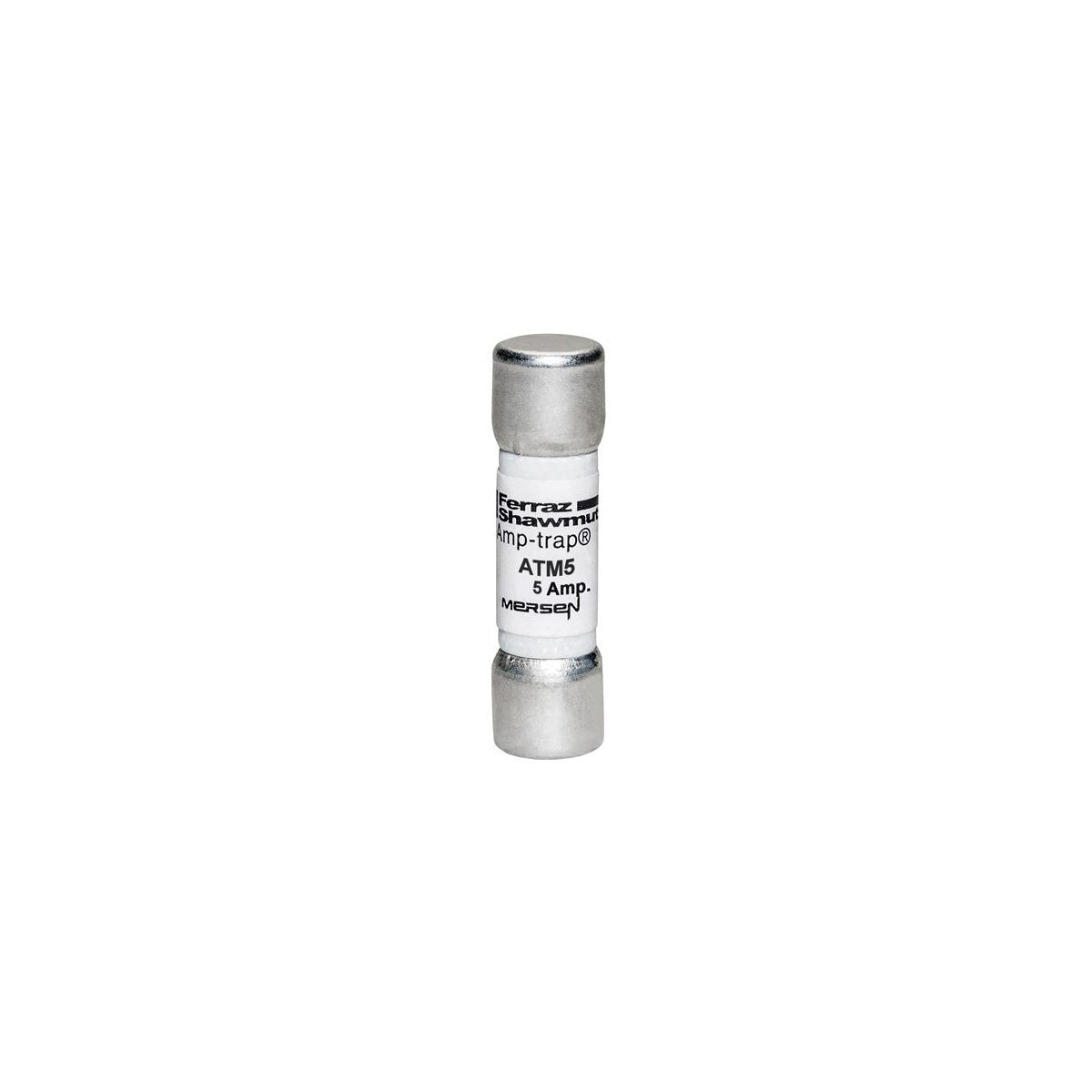

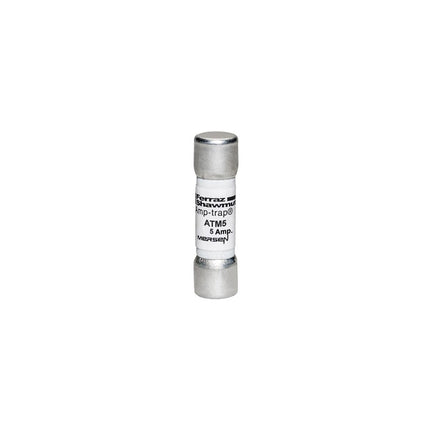

Fuse Amp-Trap® 600V 5A Fast-Acting Midget ATM Series – Electrical Fuse

The Fuse Amp-Trap® 600V 5A Fast-Acting Midget ATM Series by Mersen is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fast-acting fuse is suitable for applications requiring reliable protection against overcurrents in lighting solutions, wire and cable assemblies, and switchgear supplied by electrical distributors. It is engineered to withstand high inrush currents and demanding duty cycles, making it ideal for capacitor protection and other specialized uses.

Specifications

• Voltage Rating: 600 volts AC and DC
• Interrupt Rating: 100 kA
• Amperage Rating: 5 A
• Fuse Class: Midget
• Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0170 lbs
• Manufacturer Part Number: ATM5

Features

• Fast-acting fuse capable of handling high inrush currents
• Wide range of applications beyond standard midget fuses
• High interrupting rating ensures circuit protection up to 100kA
• Compact midget size for space-efficient installation
• Designed for supplemental protection, not for branch circuit protection
