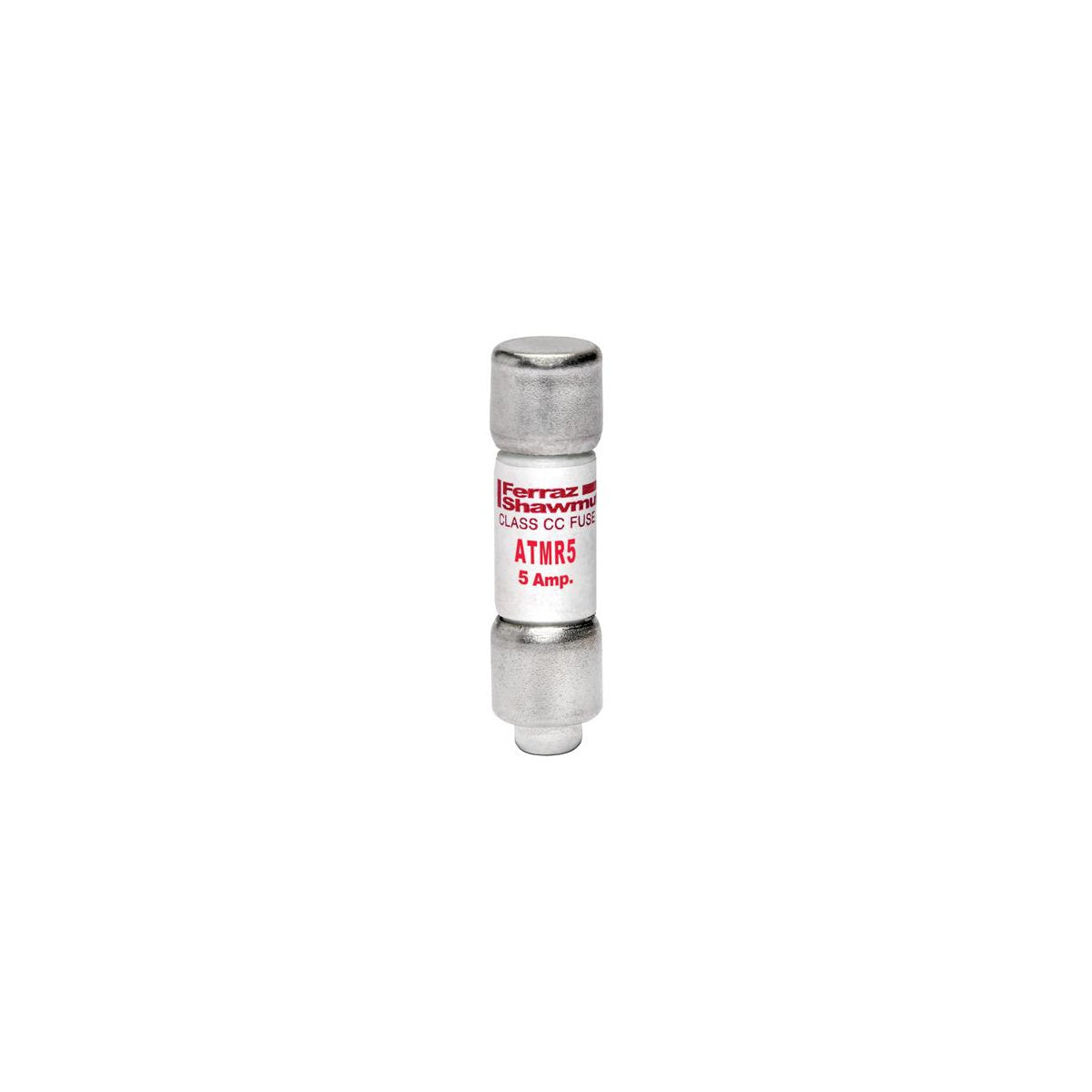

Fuse Amp-Trap® 600V 5A Fast-Acting Class CC ATMR Series
SKU: #195775
Part: #ATMR5
UPC: 782001903893
Fuse Amp-Trap® 600V 5A Fast-Acting Class CC ATMR Series
SKU: #195775
Part: #ATMR5
UPC: 782001903893
Description
Fuse Amp-Trap® 600V 5A Fast-Acting Class CC ATMR Series
The Amp-Trap® ATMR fuse is a fast-acting, current-limiting fuse designed for branch circuit protection in control circuits, lighting, and general loads. As a compact 600V fuse in the Class CC family, it offers economical and reliable protection for control circuits and transformers where short circuit currents exceed 10,000 amperes. This fuse's rejection-style design prevents substitution with lower-rated fuses, ensuring safety and compliance in electrical distribution and switchgear applications.
Specifications
- Voltage Rating: 600VAC / DC
- Amperage Rating: 5 A
- Interrupt Rating: 200 kA AC, 100 kA DC
- Frequency: 50 hertz
- Dimensions: 1.5 in length × 0.41 in diameter (0.41 in width and height)
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: GMG
- Fuse Class: Class CC
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATMR5
Features
- Fast-acting and very current-limiting for enhanced circuit protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design prevents replacement errors with recommended fuse blocks
- Versatile for individual component and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC Listed to UL Standard 248
