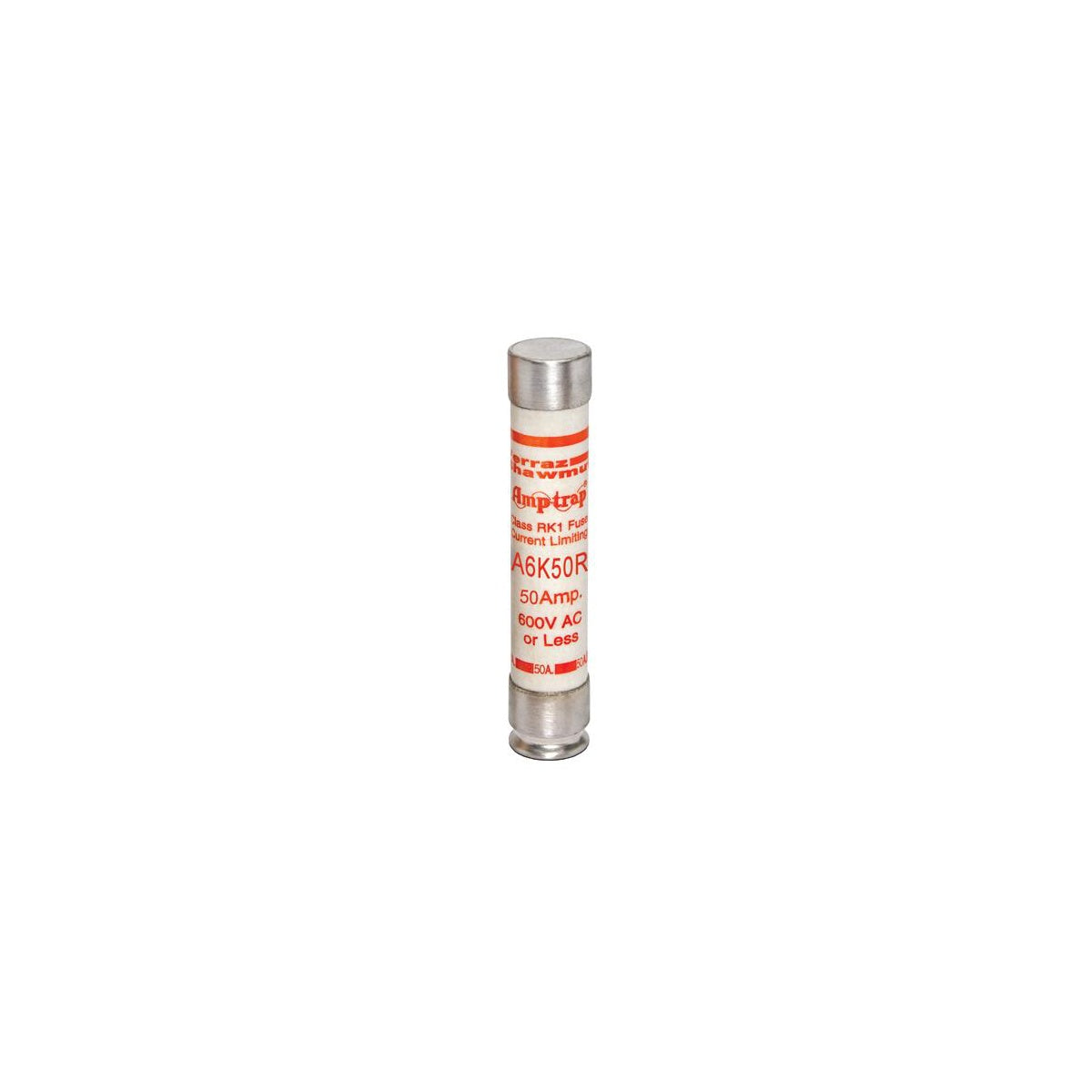

Fuse Amp-Trap® 600V 50A Fast-Acting Class RK1 A6K Series
SKU: #390342
Part: #A6K50R
UPC: 782001915667
Fuse Amp-Trap® 600V 50A Fast-Acting Class RK1 A6K Series
SKU: #390342
Part: #A6K50R
UPC: 782001915667
Description
Fuse Amp-Trap® 600V 50A Fast-Acting Class RK1 A6K Series
The Fuse Amp-Trap® A6K Series is a current-limiting, fast-acting fuse designed for protection in electrical distribution systems. It is suitable for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits. This fuse is ideal for branch and feeder circuit protection and backup protection where high available short-circuit currents exist. It is commonly used by electrical distributors and switchgear suppliers as part of reliable lighting solutions and wire and cable systems.
Specifications
- Voltage Rating: 600 VAC / 300 VDC
- Amperage Rating: 50 A
- Interrupt Rating: 200 kA
- Fuse Class: Class RK1
- Dimensions: Length 5.5 in, Diameter 1.06 in
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.3250 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: A6K50R
Features
- Current-limiting design provides a high degree of current limitation for low peak let-thru current
- Fast-acting fuse suitable for branch/feeder circuits and backup protection
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body offers dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- UL listed to standard 248-12 and CSA certified to standard C22.2 No. 248.12
- Self-certified for DC use per UL248
