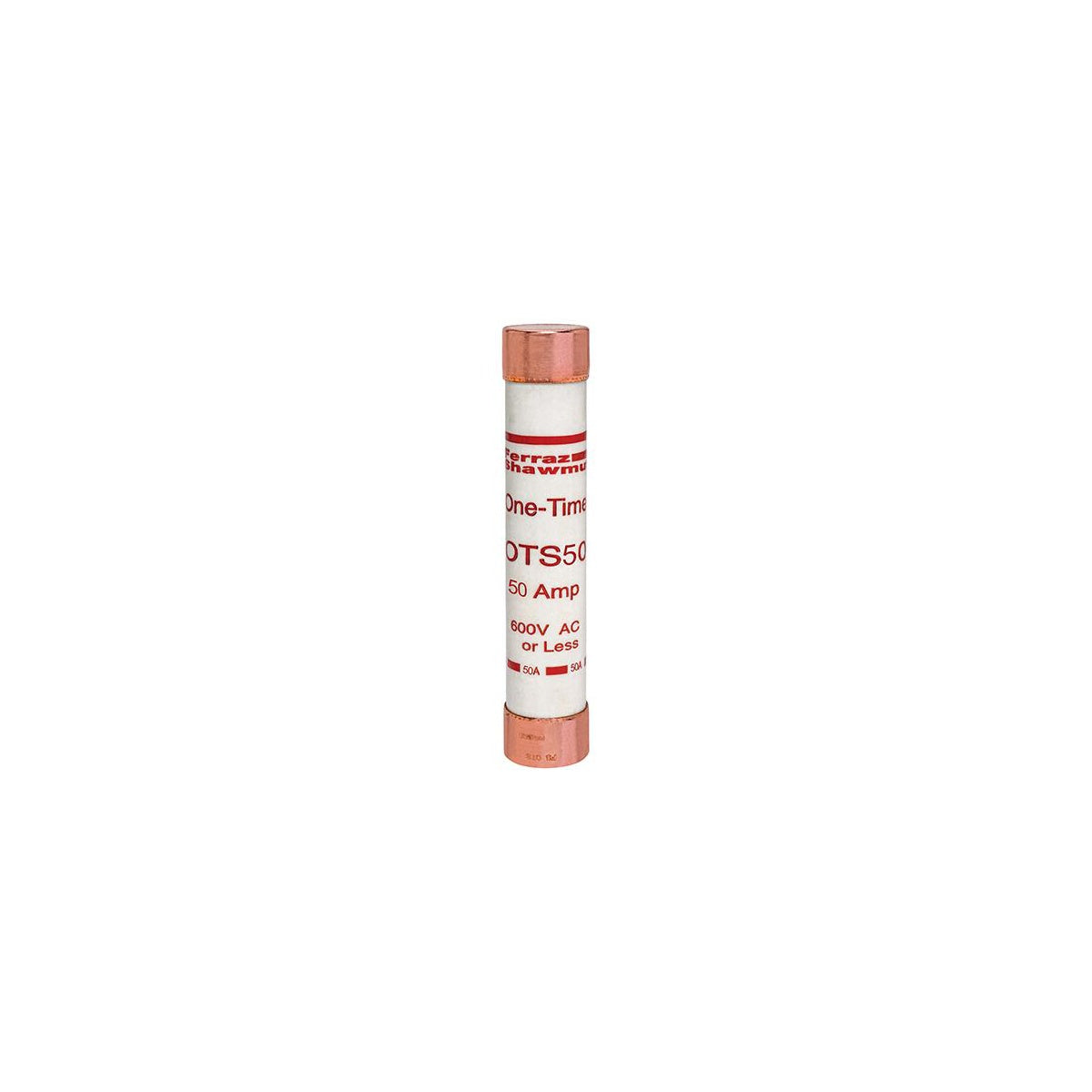

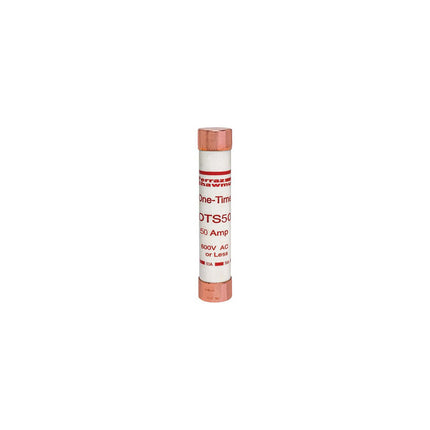

Fuse Amp-Trap® 600V 50A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 50A Fast-Acting Class K5 OTS Series fuse is designed for low-cost protection of feeders and branch circuits in residential and small commercial electrical installations. It is suitable for resistive heating, lighting, and other non-motor loads. This fuse interrupts short circuit currents up to 50,000 amperes, making it a reliable component for electrical distributors and switchgear suppliers focusing on wire and cable protection and lighting solutions.

Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 50 kA
• Fuse Class: Class K5
• Dimensions: 5.5 in (length) x 1.06 in (diameter)
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: PolyTube
• Product Weight: 0.2150 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: OTS50

Features

• One-time general purpose fuse for low-cost circuit protection
• Fast-acting design suitable for non-motor loads such as lighting and heating
• Capable of safely interrupting short circuits up to 50,000 amperes
• Not a rejection fuse; replacement fuses must meet or exceed original interrupting ratings
• PolyTube insulation for enhanced safety and durability
• Compact dimensions facilitate easy installation in residential and small commercial setups
