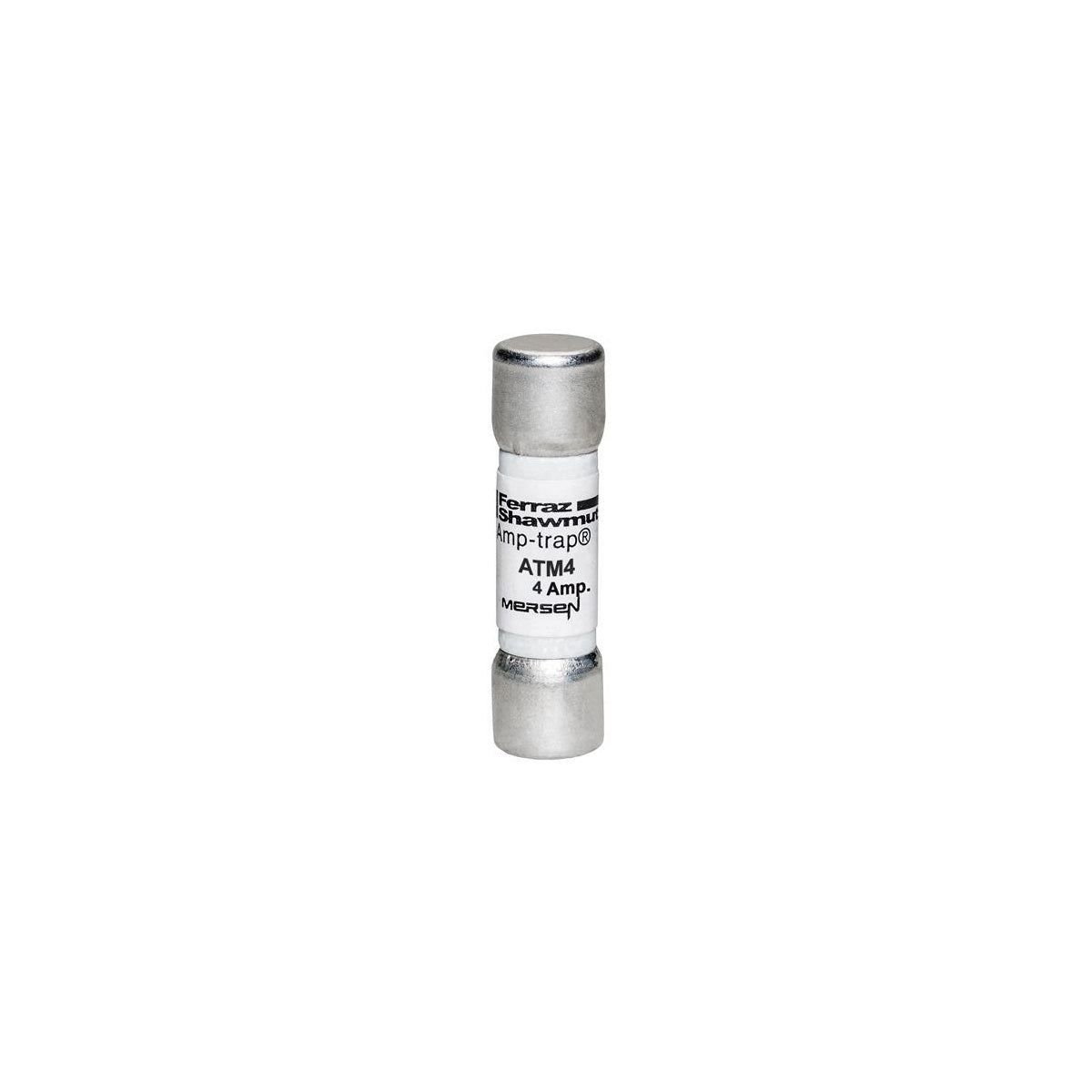

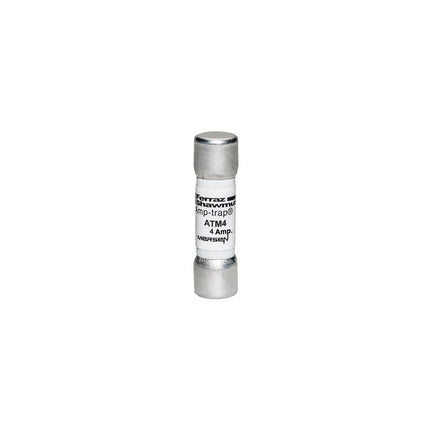

Fuse Amp-Trap® 600V 4A Fast-Acting Midget ATM Series
SKU: #195670
Part: #ATM4
UPC: 782001900748
Fuse Amp-Trap® 600V 4A Fast-Acting Midget ATM Series
SKU: #195670
Part: #ATM4
UPC: 782001900748
Description
Fuse Amp-Trap® 600V 4A Fast-Acting Midget ATM Series - Electrical Fuse
The Fuse Amp-Trap® 600V 4A Fast-Acting Midget ATM Series is designed for supplemental protection of circuits up to 600VAC and 600VDC with a 100kA interrupting rating. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable fast-acting protection, particularly in applications involving lighting solutions and wire and cable systems. It is engineered to withstand higher inrush currents and tougher duty cycles, making it ideal for specific uses such as capacitor protection. This product is not intended for branch circuit protection.
Specifications
- Voltage Rating: 600 volts AC and DC
- Interrupt Rating: 100 kA
- Amperage Rating: 4 A
- Fuse Class: Midget
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer: Mersen
- Manufacturer Part Number: ATM4
Features
- Fast-acting design for quick circuit protection
- High interrupt rating of 100kA for enhanced safety
- Capable of handling higher inrush currents and tough duty cycles
- Compact midget size compatible with standard 30A fuse dimensions
- Clip mounting for secure and easy installation
