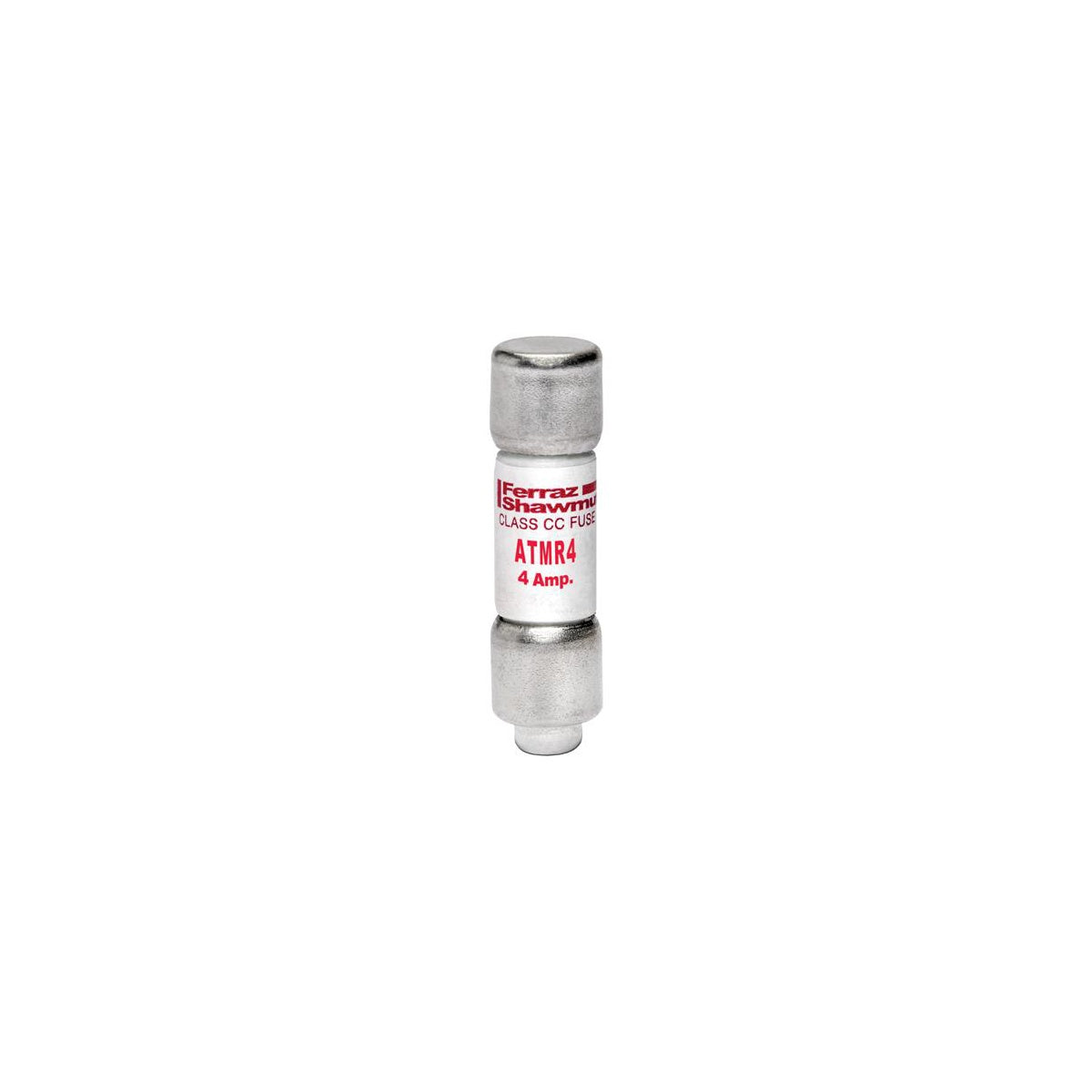

Fuse Amp-Trap® 600V 4A Fast-Acting Class CC ATMR Series
SKU: #195763
Part: #ATMR4
UPC: 782001903886
Fuse Amp-Trap® 600V 4A Fast-Acting Class CC ATMR Series
SKU: #195763
Part: #ATMR4
UPC: 782001903886
Description
Fuse Amp-Trap® 600V 4A Fast-Acting Class CC ATMR Series
The Fuse Amp-Trap® ATMR Series is a fast-acting Class CC fuse designed for branch circuit protection in control circuits, lighting, and general loads. Manufactured by Mersen, this 600V fuse offers current-limiting protection suitable for electrical distributors and switchgear suppliers managing circuits where short circuit currents exceed 10,000 amperes. Its compact dimensions and rejection-style design prevent substitution with lower-rated fuses, ensuring reliable protection for control circuit transformers and general electrical applications.
Specifications
- Voltage Rating: 600VAC/DC
- Amperage Rating: 4 A
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class CC
- Dimensions: Length 1.5 in, Diameter 0.41 in, Width 0.41 in, Height 0.41 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0170 lbs
- Manufacturer Part Number: ATMR4
Features
- Fast-acting and very current-limiting for enhanced circuit protection
- Smallest dimension 600V fuse suitable for branch circuit protection
- Rejection-style design prevents replacement errors with recommended fuse blocks
- Versatile for individual components and branch circuit protection
- UL Listed to Standard 248-4 and CSA Certified to Standard C22.2 No. 248.4
- DC Listed to UL Standard 248
