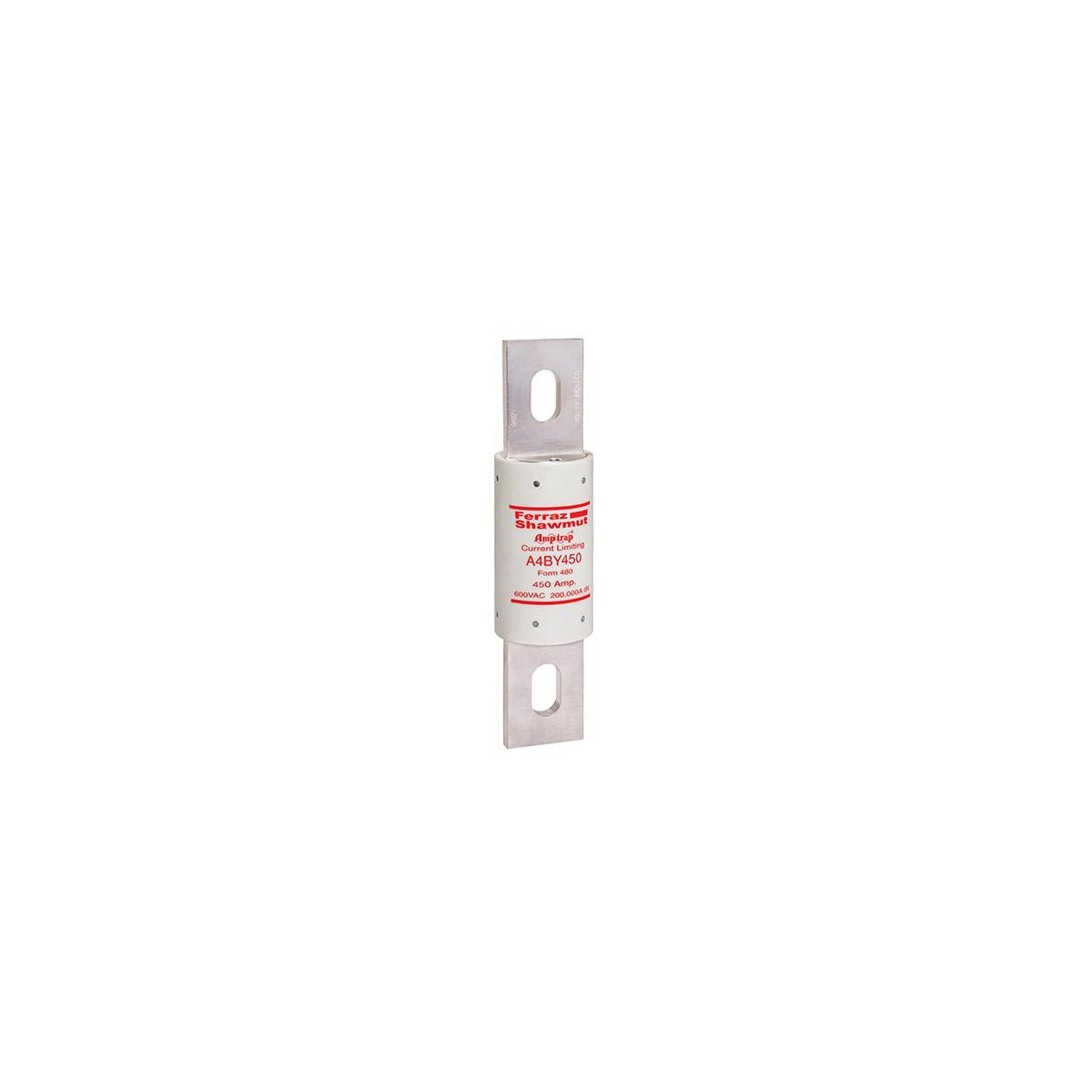

Fuse Amp-Trap® 600V 450A Time-Delay Class L A4BY Series

The Fuse Amp-Trap® A4BY Series is designed for protection of service entrance equipment, feeder circuits, and circuit breakers, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable protection. This Class L fuse is a 100% rated device capable of continuous current operation up to its ampere rating with a 4-second minimum time delay at 500% rating, allowing it to handle normal current surges and coordinate with ground fault relays effectively. It is commonly used in mains feeders, load centers, panelboards, switchboards, and metering centers.

Specifications

• Amperage Rating: 450 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupt Rating: 200 kA
• Fuse Class: Class L
• Connection Type: Blade
• Mounting Type: Bolted
• Dimensions (L x W x H): 8.63 in x 2 in x 2 in
• Insulation Material: GMG
• Product Weight: 2.38 lbs
• Manufacturer Part Number: A4BY450

Features

• Current-limiting fuse with 4-second time-delay to pass normal surges
• Unique dimensions to prevent replacement by other fuse classes
• Blade-stamped catalog numbers for permanent identification
• Glass melamine body and plated terminals for superior reliability in harsh environments
• UL/CSA listed and self-certified for DC applications
