Description

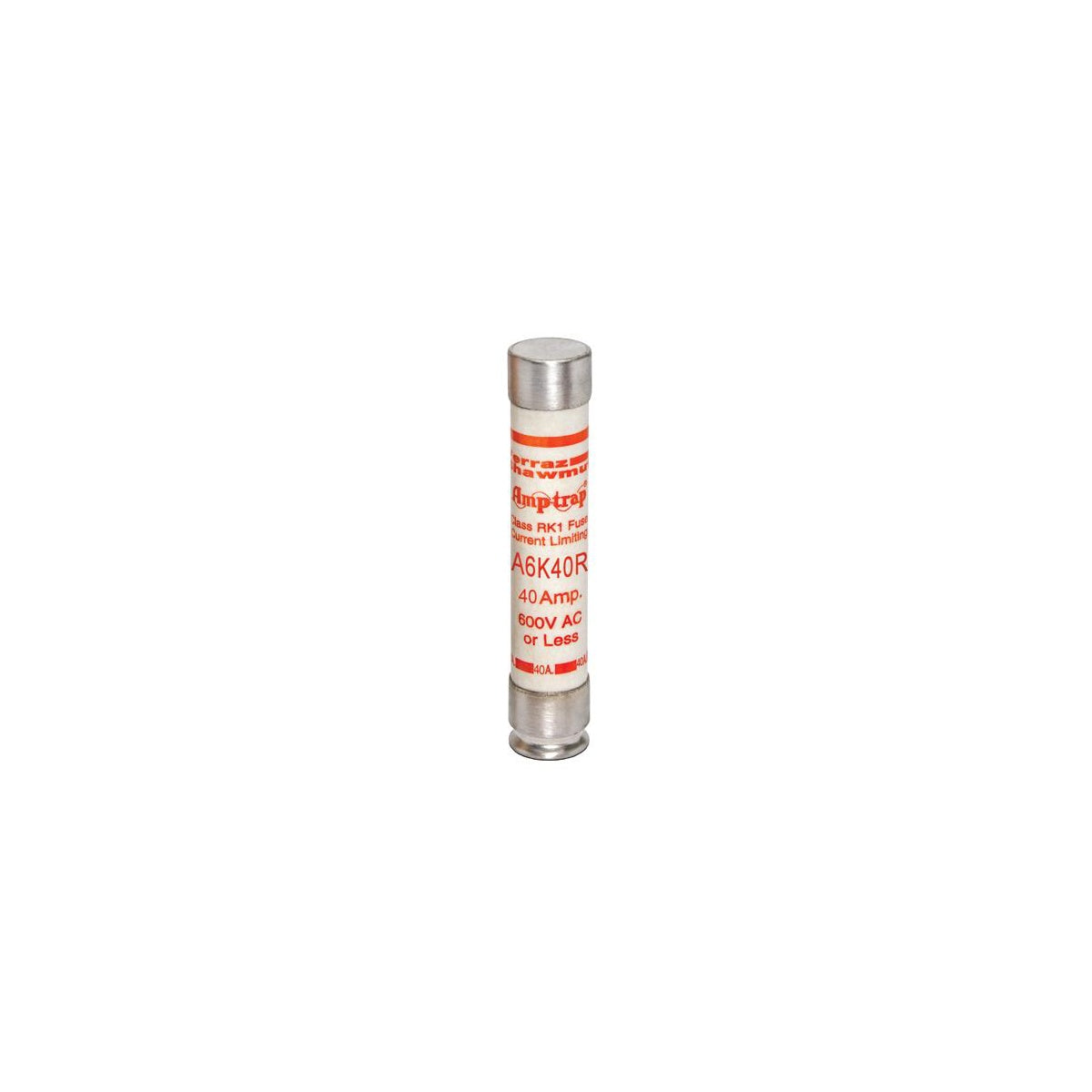

Fuse Amp-Trap® 600V 40A Fast-Acting Class RK1 A6K Series
The Fuse Amp-Trap® A6K Series is a fast-acting, current-limiting fuse designed to provide reliable protection in electrical distribution systems. Ideal for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, non-inductive loads, and lighting circuits, this fuse effectively limits high short-circuit currents to safeguard electrical components. It is suitable for branch and feeder circuit protection and backup applications, making it a key component for electrical distributors and switchgear suppliers.
Specifications
- Amperage Rating: 40 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Class: Class RK1
- Fuse Class: Class RK1
- Dimensions (L x W x H): 5.5 in x 1.06 in x 1.06 in
- Diameter: 1.06 inches
- Product Weight: 0.3250 lb
- Connection Type: Ferrule
- Mounting Type: Clip
- Insulation Material: PolyTube
- Manufacturer: Mersen
- Manufacturer Part Number: A6K40R
Features
- High degree of current limitation for low peak let-thru current
- Fast-acting for rapid response to overcurrent conditions
- Rejection style design prevents replacement by other fuse classes
- Fiberglass body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- UL listed to standard 248-12 and CSA certified to standard C22.2 No. 248.12
- Self-certified for DC use per UL248
