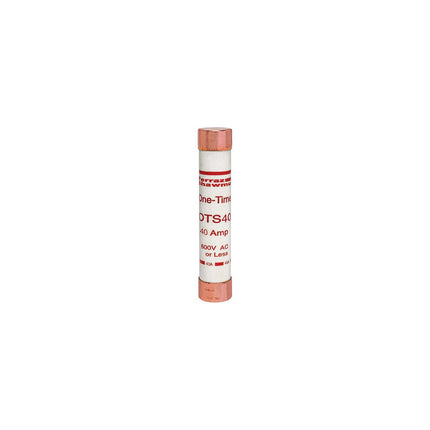

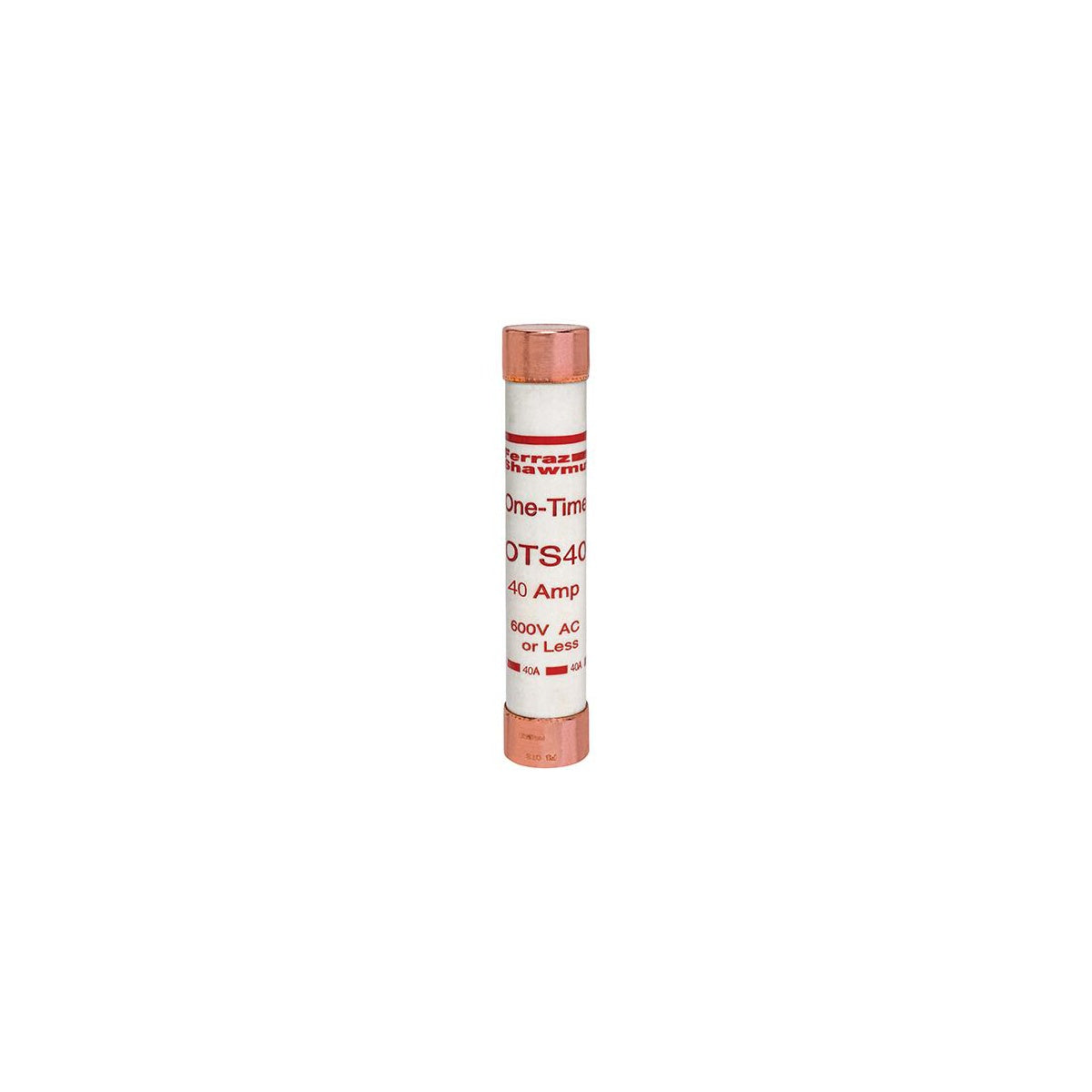

Fuse Amp-Trap® 600V 40A Fast-Acting Class K5 OTS Series Fuse

The Fuse Amp-Trap® 600V 40A Fast-Acting Class K5 OTS Series is designed for low-cost protection of feeder and branch circuits in residential and small commercial electrical installations. This fuse is suitable for resistive heating, lighting, and other non-motor loads. It provides reliable interruption of short circuit currents up to 50,000 amperes, making it a dependable component for electrical distributors and switchgear suppliers.

Specifications

• Amperage Rating: 40 A
• Voltage Rating: 600 V AC
• Interrupt Rating: 50 kA
• Fuse Class: Class K5
• Dimensions: 5.5 in (Length) x 1.06 in (Diameter)
• Weight: 0.2150 lb
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: PolyTube

Features

• Fast-acting fuse providing quick response to overcurrent conditions
• One-time use for general purpose circuit protection
• Capable of safely interrupting available short circuit currents up to 50,000 amperes
• Suitable for feeders and branch circuits serving lighting, heating, and other non-motor loads
• Not a rejection fuse; replacement fuses must meet or exceed original interrupting ratings
