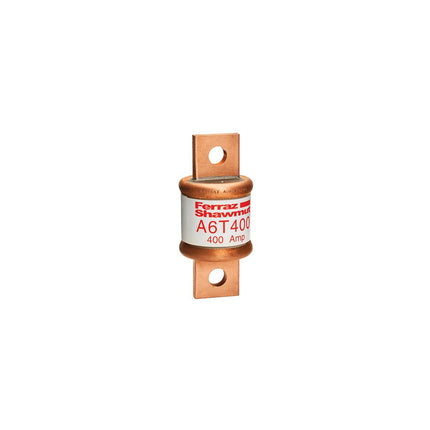

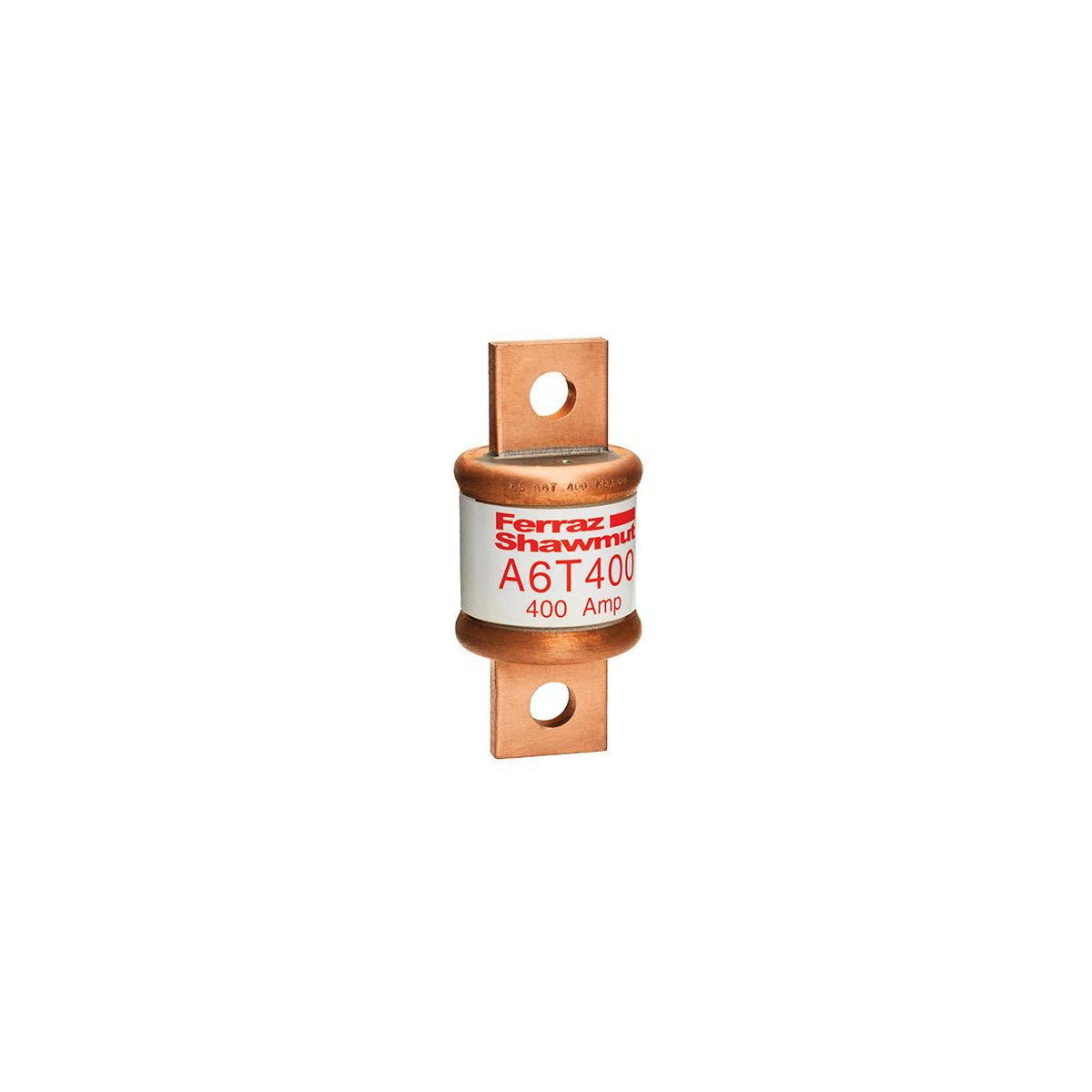

Fuse Amp-Trap® 600V 400A Fast-Acting Class T A6T Series
SKU: #195317
Part: #A6T400
UPC: 782001891534
Fuse Amp-Trap® 600V 400A Fast-Acting Class T A6T Series
SKU: #195317
Part: #A6T400
UPC: 782001891534
Description
Fuse Amp-Trap® 600V 400A Fast-Acting Class T A6T Series
The Fuse Amp-Trap® 600V 400A Fast-Acting Class T A6T Series is designed for protecting electrical distribution systems including load centers, panelboards, switchboards, circuit breakers, and metering centers. This fast-acting fuse provides high current-limitation in a compact form factor, making it suitable for use by electrical distributors and switchgear suppliers seeking reliable protection solutions. Its glass melamine body ensures dimensional stability, and the bolted blade connection facilitates secure mounting in wire and cable assemblies.
Specifications
- Amperage Rating: 400 A
- Interrupt Rating: 200 kA
- Voltage Rating: 600 V
- Fuse Class: Class T
- Dimensions (L x W x H): 3.62 in x 1.62 in x 1.62 in
- Mounting Type: Bolted
- Connection: Blade
- Product Weight: 0.5040 lb
- Insulation Material: Glass Melamine (GMG)
- Manufacturer Part Number: A6T400
Features
- Fast-acting fuse with high current-limitation capability
- Compact physical size to prevent substitution with lower-rated fuses
- Glass melamine body for superior dimensional stability
- Catalog numbers permanently stamped on blades for identification
- Suitable for load centers, panelboards, switchboards, circuit breakers, and metering centers
